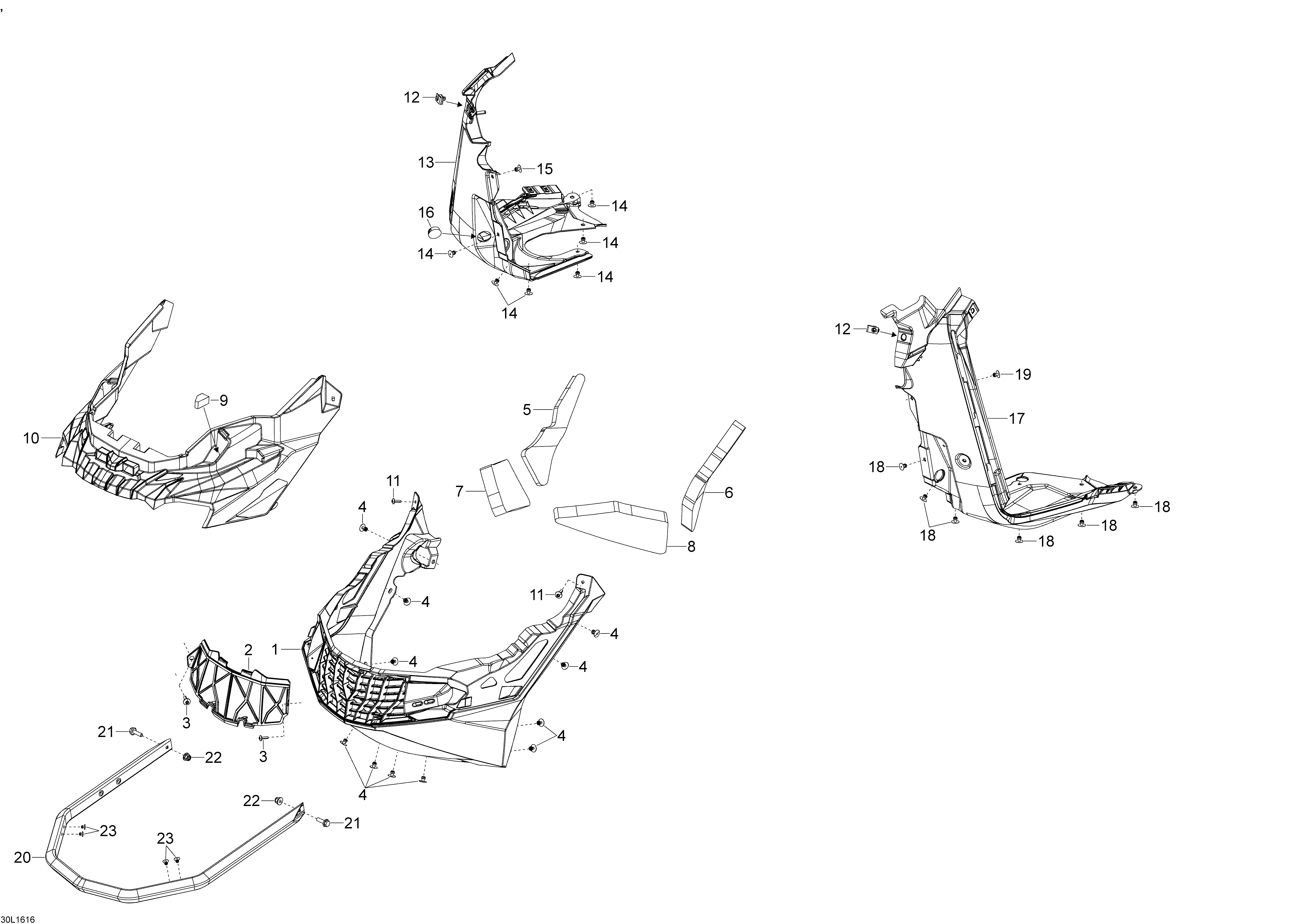

09- Bottom Pan для BRP Lynx BoonDocker DS (2-Stroke) - 2016
-
№АртикулНазвание
-
1502007396 Yellow Bottom PanYellow Bottom Pan
-
2517305029 Pre-FilterPre-Filter
-
3250000810 Tapping Screw 4.8 x 13Tapping Screw 4.8 x 13
-
4293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
5502007243 RH Foam UpperRH Foam Upper
-
6502007244 LH Foam UpperLH Foam Upper
-
7502007245 RH Foam LowerRH Foam Lower
-
8502007246 LH Foam LowerLH Foam Lower
-
9517305812 FoamFoam
-
10502007284 Front CapFront Cap
-
11250000528 Torx Truss Screw M5 x 20Torx Truss Screw M5 x 20
-
12250000079 Panel Nut M5Panel Nut M5
-
13502007259 Black RH Bottom PanBlack RH Bottom Pan
-
14293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
15293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
16414916600 PlugPlug
-
17502007260 Black LH Bottom PanBlack LH Bottom Pan
-
18293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
19293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
20502007281 BumperBumper
-
21207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
22233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
23293150104 Pop Rivet 3/16''Pop Rivet 3/16''
