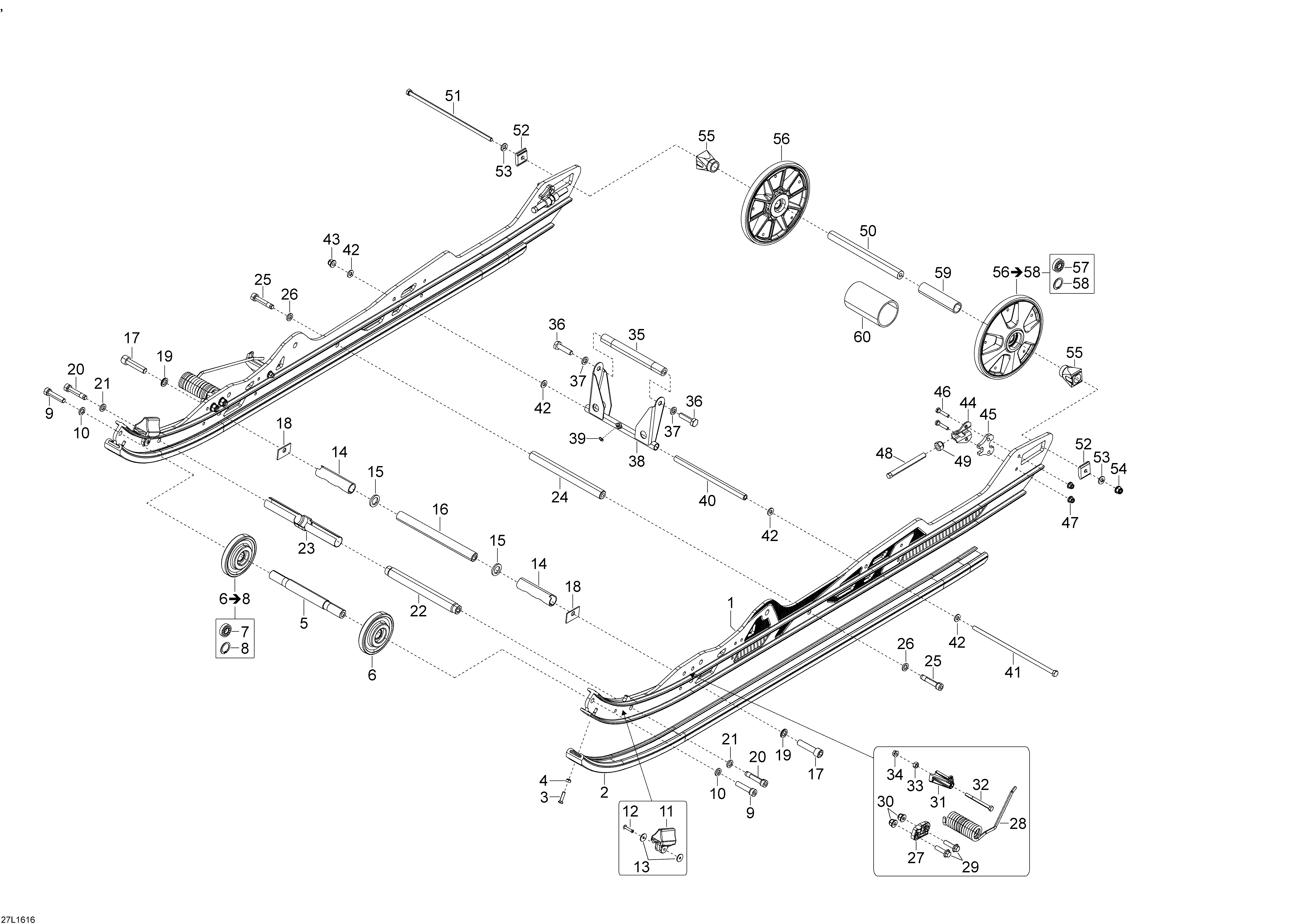

08- Rear Suspension A для BRP Lynx BoonDocker DS (2-Stroke) - 2016
-
№АртикулНазвание
-
1503194238 Yellow LH Runner. Model-3900Yellow LH Runner. Model-3900
-
1503194230 Yellow LH Runner. Model-4100Yellow LH Runner. Model-4100
-
1503194239 Yellow RH Runner. Model-3900Yellow RH Runner. Model-3900
-
1503194231 Yellow RH Runner. Model-4100Yellow RH Runner. Model-4100
-
2503194493 Slider Shoe. Model-3900Slider Shoe. Model-3900
-
2503194240 Slider Shoe. Model-4100Slider Shoe. Model-4100
-
3208562531 Screw M6 x 25Screw M6 x 25
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192842 Front Wheel ShaftFront Wheel Shaft
-
6503192611 Wheel 100mm. Includes 6 To 8Wheel 100mm. Includes 6 To 8
-
7503190396 Ball BearingBall Bearing
-
9205504544 Socket HD Screw M10 x 45Socket HD Screw M10 x 45
-
10503192496 Flat Washer M10Flat Washer M10
-
11503192106 Rubber StopperRubber Stopper
-
12293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
13503191273 WasherWasher
-
14605349896 SleeveSleeve
-
1531013 Shim RingShim Ring
-
16605350690 ShaftShaft
-
17205525554 Socket HD Screw M12 x 55Socket HD Screw M12 x 55
-
18605449294 Support PlateSupport Plate
-
20205505054 Socket Head Screw M10 x 50Socket Head Screw M10 x 50
-
21503192496 WasherWasher
-
22605353958 ShaftShaft
-
23605355096 Limiter Strap RetainerLimiter Strap Retainer
-
245343471 ShaftShaft
-
25205505054 Socket Head Screw M10 x 50Socket Head Screw M10 x 50
-
26503192496 Flat Washer M10Flat Washer M10
-
27503193881 LH SupportLH Support
-
27503193882 RH SupportRH Support
-
28503193825 LH SpringLH Spring
-
28503193826 RH SpringRH Spring
-
29207683054 Hex. Flange Screw M8 x 30Hex. Flange Screw M8 x 30
-
30233281466 Elastic Flange Nut M8Elastic Flange Nut M8
-
31503194143 HookHook
-
32207167054 Hex. Cap Screw M6 x 70Hex. Cap Screw M6 x 70
-
33232061414 Nut M6Nut M6
-
34233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
35503193638 ShaftShaft
-
36207204044 Hex. Cap Screw M10 x 40Hex. Cap Screw M10 x 40
-
37503192496 WasherWasher
-
38503194342 Rear SwingRear Swing
-
39408200700 Grease FittingGrease Fitting
-
40503189156 Pivot AxlePivot Axle
-
41503192440 Hex. Screw M8 x 248Hex. Screw M8 x 248
-
42503192494 WasherWasher
-
43233281466 Elastic Flange Nut M8Elastic Flange Nut M8
-
44503192583 Tensioner HousingTensioner Housing
-
45503193250 SpacerSpacer
-
46207063054 Hex. Cap Screw M6 x 30Hex. Cap Screw M6 x 30
-
47233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
48230100054 Hex. Screw M10 x 100Hex. Screw M10 x 100
-
49233601466 Elastic Lock Nut M10Elastic Lock Nut M10
-
50503194105 AxleAxle
-
51503194069 Hex. Screw M8 x 261Hex. Screw M8 x 261
-
52503194412 Axle SliderAxle Slider
-
53250200159 Conical Spring WasherConical Spring Washer
-
54233281466 Elastic Flange Nut M8Elastic Flange Nut M8
-
55503190428 SpacerSpacer
-
56503193760 Wheel 200mm. Includes 56 To 58Wheel 200mm. Includes 56 To 58
-
57503190396 Ball BearingBall Bearing
-
58415129371 CirclipCirclip
-
59503191263 SpacerSpacer
-
60503193097 BushingBushing
