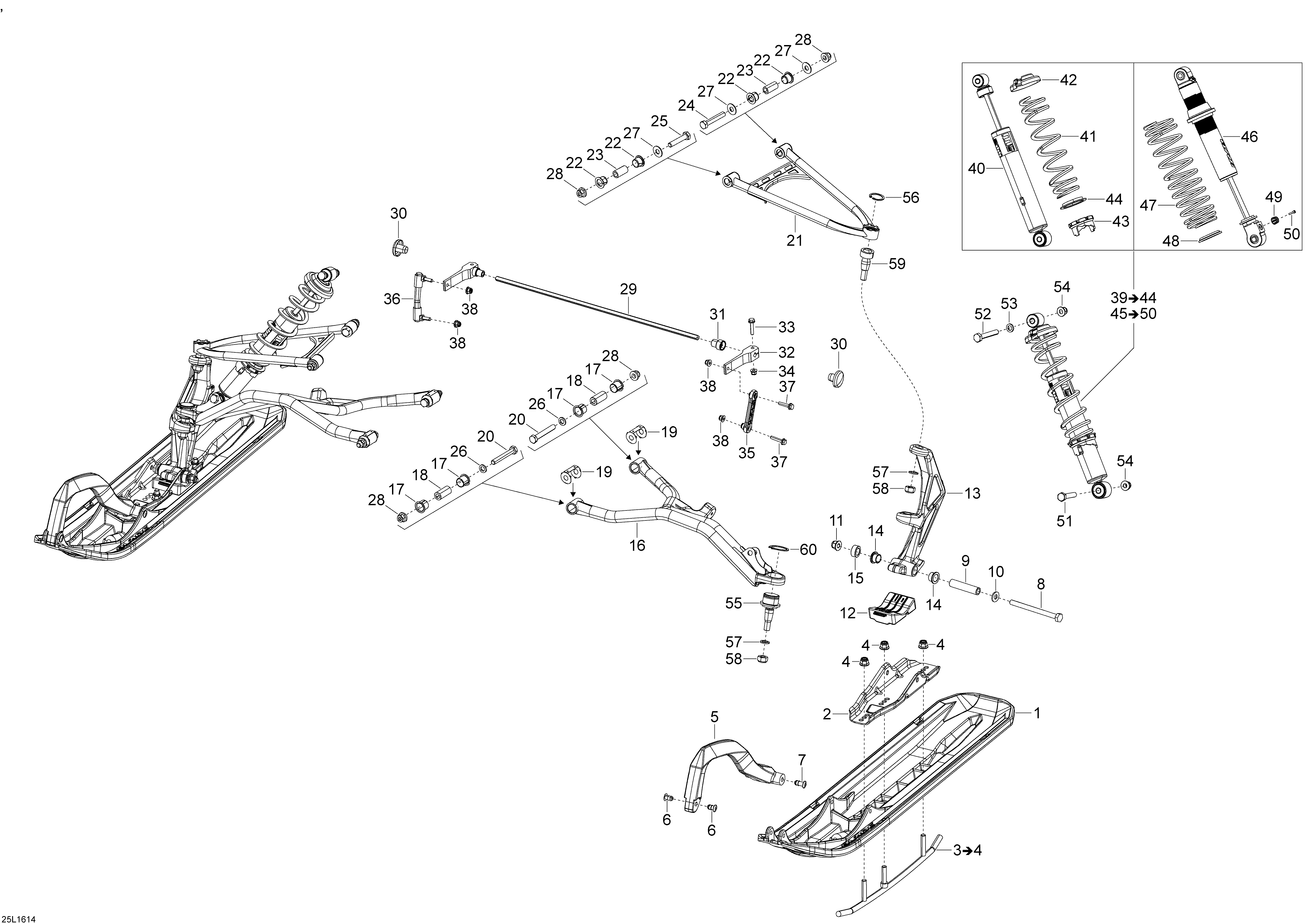

07- Front Suspension And Ski для BRP Lynx Xtrim Commander (2-Stroke) - 2016
-
№АртикулНазвание
-
1505073154 Black Blade SkiBlack Blade Ski
-
2505073240 Ski BridgeSki Bridge
-
3860200959 Ski Runner Kit. Includes 3 To 4Ski Runner Kit. Includes 3 To 4
-
4233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
5505072976 Black HandleBlack Handle
-
6505071812 RetainerRetainer
-
7505072133 RetainerRetainer
-
8231080044 Socket HD Screw M10 x 100Socket HD Screw M10 x 100
-
9506133300 Ski AxleSki Axle
-
10732900049 WasherWasher
-
11233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
12505073411 Rubber DamperRubber Damper
-
13505073362 Black LH Ski LegBlack LH Ski Leg
-
13505073363 Black RH Ski LegBlack RH Ski Leg
-
14505072690 BushingBushing
-
15505072807 SpacerSpacer
-
16505073577 Black RH Lower ArmBlack RH Lower Arm
-
16505073578 Black LH Lower ArmBlack LH Lower Arm
-
17505073330 CushionCushion
-
18505072209 BushingBushing
-
19505072634 Wear PlateWear Plate
-
20250000291 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
21505073468 Black LH Upper ArmBlack LH Upper Arm
-
21505073469 Black RH Upper ArmBlack RH Upper Arm
-
22505073329 BushingBushing
-
23505072143 BushingBushing
-
24250000290 Hex. Cap Screw M10 x 60Hex. Cap Screw M10 x 60
-
25250000289 Hex. Cap Screw M10 X 50Hex. Cap Screw M10 X 50
-
26503189564 WasherWasher
-
27505072392 WasherWasher
-
28250100165 Nut M10Nut M10
-
29505073609 Stabilisator. Model-800 E-TECStabilisator. Model-800 E-TEC
-
30572091300 CapCap
-
31505072786 Bushing. Model-800 E-TECBushing. Model-800 E-TEC
-
32505073176 Stabilisator Lever. Model-800 E-TECStabilisator Lever. Model-800 E-TEC
-
33207663046 Hex. Flange Screw M6 x 30. Model-800 E-TECHex. Flange Screw M6 x 30. Model-800 E-TEC
-
34233261416 Elastic Flange Nut M6. Model-800 E-TECElastic Flange Nut M6. Model-800 E-TEC
-
35505073172 Double Ball Joint. Model-800 E-TECDouble Ball Joint. Model-800 E-TEC
-
36860200811 Double Ball Joint Link (Quick Release). Model-800 E-TECDouble Ball Joint Link (Quick Release). Model-800 E-TEC
-
37207663046 Hex. Flange Screw M6 x 30. Model-800 E-TECHex. Flange Screw M6 x 30. Model-800 E-TEC
-
38233261416 Elastic Flange Nut M6. Model-800 E-TECElastic Flange Nut M6. Model-800 E-TEC
-
40505073342 Shock. Model-600 E-TECShock. Model-600 E-TEC
-
41503192286 Spring (300mm - 14N/mm). Model-600 E-TECSpring (300mm - 14N/mm). Model-600 E-TEC
-
42706200881 Spring Stopper. Model-600 E-TECSpring Stopper. Model-600 E-TEC
-
43505073625 Adjuster Cam. Model-600 E-TECAdjuster Cam. Model-600 E-TEC
-
44503191872 Spring Guide. Model-600 E-TECSpring Guide. Model-600 E-TEC
-
46505073456 Shock. Model-800 E-TECShock. Model-800 E-TEC
-
47505072846 Spring (280mm - 14N/mm). Model-800 E-TECSpring (280mm - 14N/mm). Model-800 E-TEC
-
47505072741 Spring (280mm - 15.8N/mm). Model-TouratechSpring (280mm - 15.8N/mm). Model-Touratech
-
48503194270 Spring Stopper. Model-800 E-TECSpring Stopper. Model-800 E-TEC
-
49505072753 Adjuster Knob. Model-800 E-TECAdjuster Knob. Model-800 E-TEC
-
50250000644 Socket Screw M3 x 10. Model-800 E-TECSocket Screw M3 x 10. Model-800 E-TEC
-
51207005544 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
52207006544 Hex. Cap Screw M10 x 65Hex. Cap Screw M10 x 65
-
53503189564 WasherWasher
-
54233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
55505073636 Ball JointBall Joint
-
56293370070 CirclipCirclip
-
57234021410 Flat WasherFlat Washer
-
58250100089 Nut M12Nut M12
-
59505072913 Ball JointBall Joint
-
60293370035 CirclipCirclip
