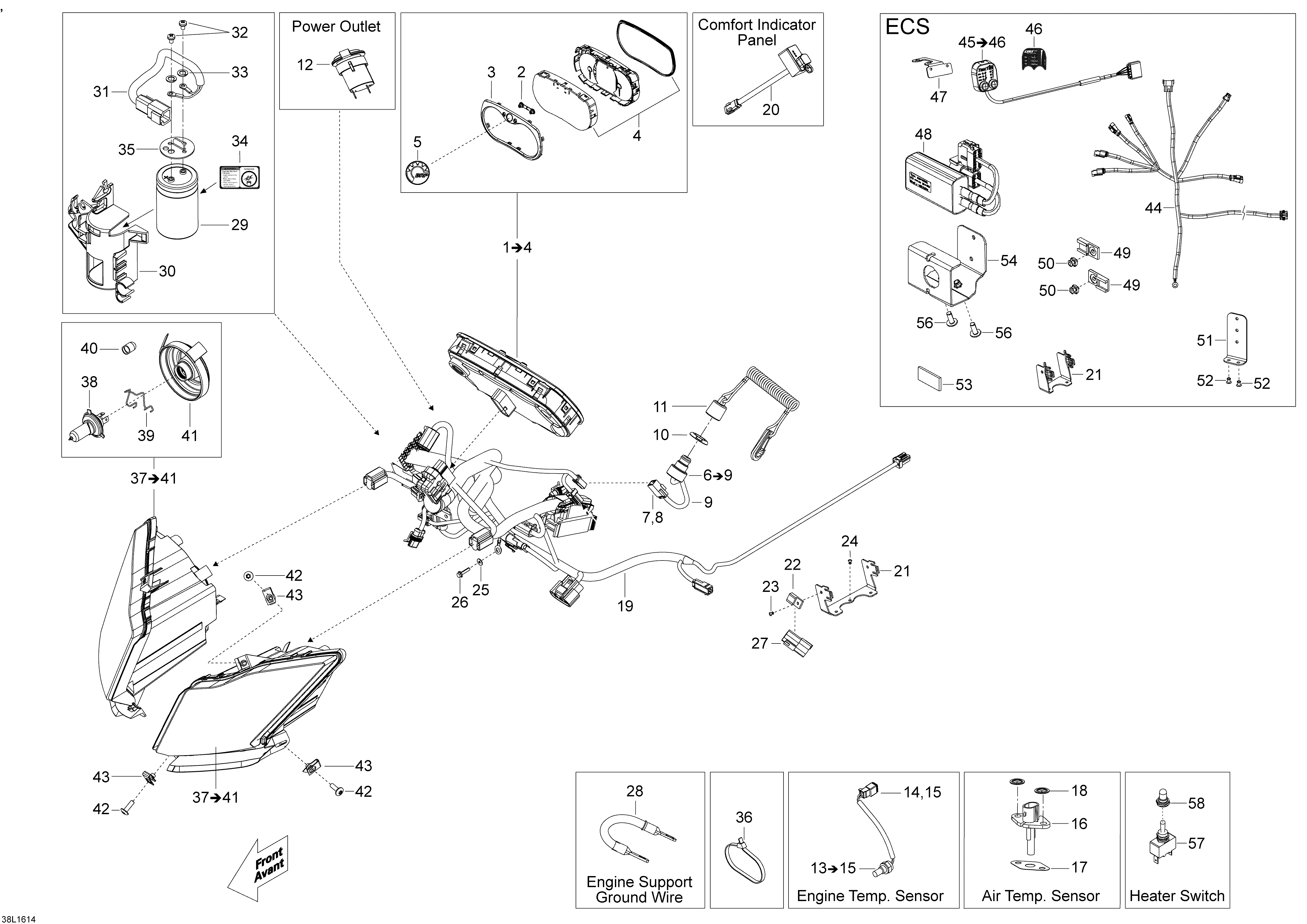

10- Electrical System для BRP Lynx Xtrim Commander (2-Stroke) - 2016
-
№АртикулНазвание
-
1515177910 Speedometer Ass'y. Includes 1 To 4Speedometer Ass'y. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 LensLens
-
5516006224 BRP LogoBRP Logo
-
6515177249 Dess Switch. Includes 6 To 9Dess Switch. Includes 6 To 9
-
7515175232 Male TerminalMale Terminal
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9409902000 Tubing 12mmTubing 12mm
-
10278002963 Safety Switch NutSafety Switch Nut
-
11515178146 DESS CapDESS Cap
-
12710001248 DC Power OutletDC Power Outlet
-
13515177813 Temperature Sensor. Includes 13 To 15Temperature Sensor. Includes 13 To 15
-
14515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
15278000632 Female TerminalFemale Terminal
-
16515176366 Air Temperature SensorAir Temperature Sensor
-
17508000769 RingRing
-
18389804300 Push NutPush Nut
-
19515177941 Main Harness. Model-600 E-TECMain Harness. Model-600 E-TEC
-
19515177798 Main Harness. Model-800 E-TECMain Harness. Model-800 E-TEC
-
19515178120 Main Harness. Model-800 E-TEC TouratechMain Harness. Model-800 E-TEC Touratech
-
20515177377 Comfort Indicator Panel. Model-Ltd & TouratechComfort Indicator Panel. Model-Ltd & Touratech
-
21515177925 Fusebox Support. Model-std & LtdFusebox Support. Model-std & Ltd
-
21515178152 Fusebox Support. Model-ECSFusebox Support. Model-ECS
-
22270000141 ClipClip
-
23293150037 RivetRivet
-
24390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
25234141601 Lock Washer M4Lock Washer M4
-
26250000741 Torx Truss Screw M4 x 8Torx Truss Screw M4 x 8
-
27710004904 Female HousingFemale Housing
-
28515177289 Ground CableGround Cable
-
29515177272 CapacitorCapacitor
-
30515176607 SupportSupport
-
31515176605 HarnessHarness
-
32250000462 Socket HD Screw M10 x 32Socket HD Screw M10 x 32
-
33250200026 Lock WasherLock Washer
-
34516005515 Capacitor DecalCapacitor Decal
-
35515177193 CapCap
-
36414115200 Tie-Rap 180mmTie-Rap 180mm
-
36293750008 Tie-Rap 350mmTie-Rap 350mm
-
36293750001 Tie-Rap 94mmTie-Rap 94mm
-
37517304194 RH Headlamp. Includes 37 To 41RH Headlamp. Includes 37 To 41
-
37517304195 LH Headlamp. Includes 37 To 41LH Headlamp. Includes 37 To 41
-
38515176274 H4 Halogen Bulb (60/55W, 12V)H4 Halogen Bulb (60/55W, 12V)
-
40515176498 CapCap
-
41515176499 CoverCover
-
42250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
43250100113 Panel Nut M6Panel Nut M6
-
44515177976 ECS Harness. Model-ECSECS Harness. Model-ECS
-
45515177777 Control Box Ass'y. Includes 45 To 46, Model-ECSControl Box Ass'y. Includes 45 To 46, Model-ECS
-
46515177778 Control Box Decal. Model-ECSControl Box Decal. Model-ECS
-
47515178101 Control Box Fastener. Model-ECSControl Box Fastener. Model-ECS
-
48515177950 Control Box TCU-4. Model-ECSControl Box TCU-4. Model-ECS
-
49270000141 Clip. Model-ECSClip. Model-ECS
-
50293150037 Rivet 3/16''. Model-ECSRivet 3/16''. Model-ECS
-
51515177944 Wire Support Plate. Model-ECSWire Support Plate. Model-ECS
-
52390909200 Rivet. Model-ECSRivet. Model-ECS
-
53229000014 Fastener Strip. Model-ECSFastener Strip. Model-ECS
-
54503194013 Support. Model-ECSSupport. Model-ECS
-
56250000721 Torx Truss Screw M6 x 16. Model-ECSTorx Truss Screw M6 x 16. Model-ECS
-
57410110700 Heater Switch. Model-Traveler PackageHeater Switch. Model-Traveler Package
-
58515175281 Switch Cover. Model-Traveler PackageSwitch Cover. Model-Traveler Package
