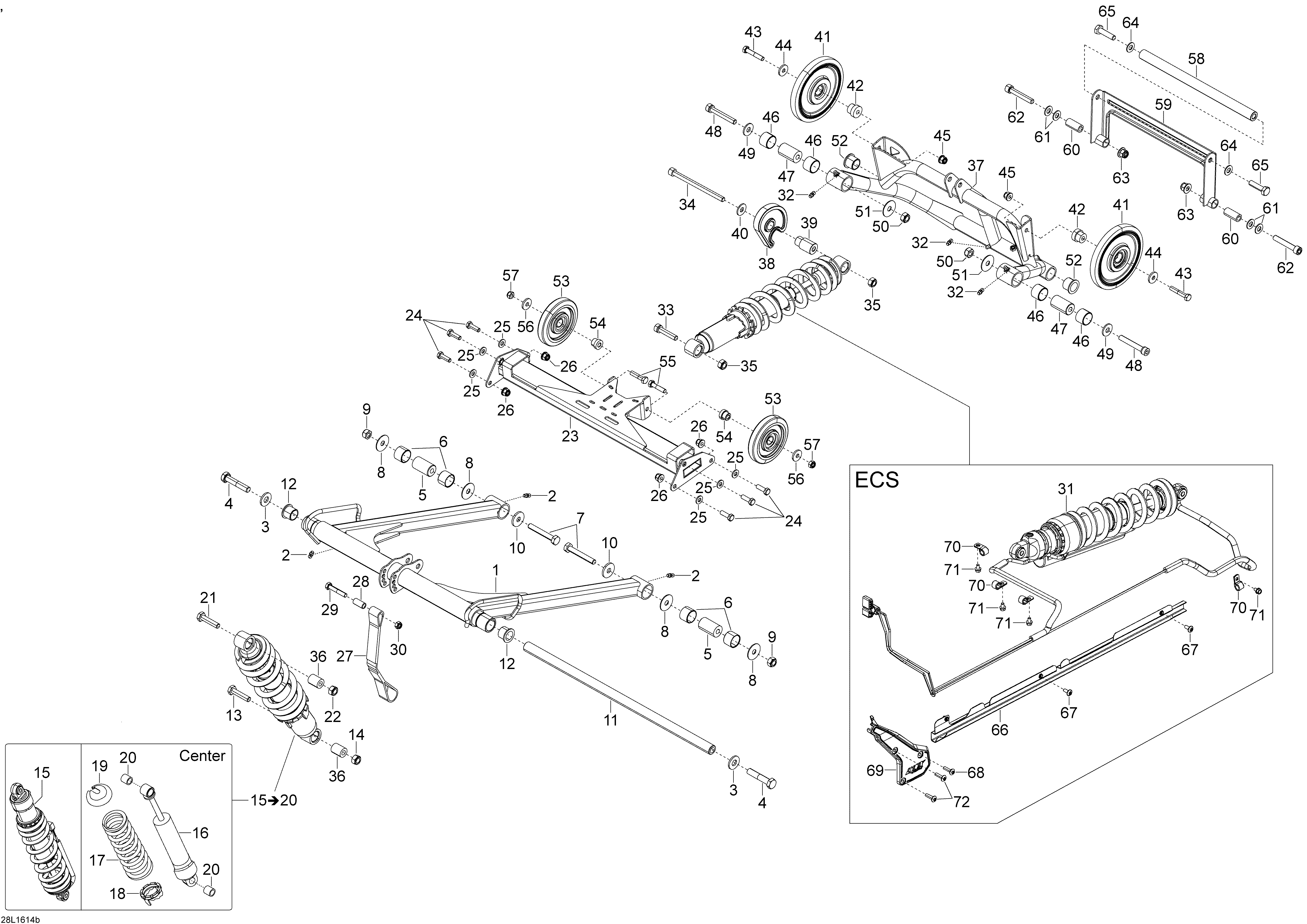

08- Rear Suspension B - ECS для BRP Lynx Xtrim Commander (2-Stroke) - 2016
-
№АртикулНазвание
-
1503193092 Front Arm. Model-Ltd ECSFront Arm. Model-Ltd ECS
-
1503194258 Front Arm. Model-Touratech ECSFront Arm. Model-Touratech ECS
-
2408200700 Grease FittingGrease Fitting
-
3250200131 Washer Spring Conical M12Washer Spring Conical M12
-
4250000555 Hex. Cap Screw M12 x 60Hex. Cap Screw M12 x 60
-
5605354157 ShaftShaft
-
6503193700 BushingBushing
-
7207007044 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
8605355801 WasherWasher
-
9232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
10503183300 WasherWasher
-
115347719 Upper ShaftUpper Shaft
-
1231024 CushionCushion
-
13250000549 Hex. Cap Screw M10 x 45Hex. Cap Screw M10 x 45
-
14232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
15503194195 Center Shock Ass'y. Model-Touratech ECSCenter Shock Ass'y. Model-Touratech ECS
-
16503193517 Shock. Model-Ltd ECSShock. Model-Ltd ECS
-
17503191848 Spring (237mm - 50-90N/mm). Model-Ltd ECSSpring (237mm - 50-90N/mm). Model-Ltd ECS
-
18230078 Spring Seat. Model-Ltd ECSSpring Seat. Model-Ltd ECS
-
19230076 Spring Seat. Model-Ltd ECSSpring Seat. Model-Ltd ECS
-
2031094 Glide Bearing. Model-Ltd ECSGlide Bearing. Model-Ltd ECS
-
21207004544 Hex. Cap Screw M10 x 45Hex. Cap Screw M10 x 45
-
22232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
23503194092 Middle BeamMiddle Beam
-
24250000556 Hex. Cap Screw M8 x 25Hex. Cap Screw M8 x 25
-
25503192494 WasherWasher
-
26233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
27605355116 Limiter Strap. Model-Ltd ECSLimiter Strap. Model-Ltd ECS
-
27503194570 Limiter Strap. Model-Touratech ECSLimiter Strap. Model-Touratech ECS
-
28605455335 SleeveSleeve
-
29207084544 Hex. Cap Screw M8 x 45Hex. Cap Screw M8 x 45
-
30232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
31503194194 Rear Shock Ass'yRear Shock Ass'y
-
32408200700 Grease FittingGrease Fitting
-
3340134 Allen Screw M10 x 45Allen Screw M10 x 45
-
34231080044 Socket HD Screw M10 x 100Socket HD Screw M10 x 100
-
35232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
365446652 Bushing. Model-Ltd ECSBushing. Model-Ltd ECS
-
37503194060 Rear ArmRear Arm
-
38503194181 Track SupportTrack Support
-
39503194203 SleeveSleeve
-
40503191926 WasherWasher
-
41503193852 Idler Wheel 133mmIdler Wheel 133mm
-
42605454461 SleeveSleeve
-
43207084544 Hex. Cap Screw M8 x 45Hex. Cap Screw M8 x 45
-
4420077 WasherWasher
-
45233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
46503193700 BushingBushing
-
47605354157 ShaftShaft
-
48250000560 Socket HD Screw M10 x 65Socket HD Screw M10 x 65
-
49503191926 WasherWasher
-
50232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
51605355801 WasherWasher
-
5231024 CushionCushion
-
53572043500 Idler WheelIdler Wheel
-
54503193330 SleeveSleeve
-
55207083544 Hex. Cap Screw M8 x 35Hex. Cap Screw M8 x 35
-
5620077 WasherWasher
-
57232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
58503192397 ShaftShaft
-
59503192346 Rear SwingRear Swing
-
60503192341 Rear Swing ShaftRear Swing Shaft
-
61234001410 Washer Flat M10Washer Flat M10
-
62205006044 Socket HD Screw M10 x 60Socket HD Screw M10 x 60
-
63233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
64234001410 Flat Washer M10Flat Washer M10
-
65207204044 Hex. Cap Screw M10 x 45Hex. Cap Screw M10 x 45
-
66503194001 Cable Cover. Model-Ltd ECSCable Cover. Model-Ltd ECS
-
66503194259 Cable Cover. Model-Touratech ECSCable Cover. Model-Touratech ECS
-
67250000721 Trorx Truss Screw M6 x 16Trorx Truss Screw M6 x 16
-
68250000807 Torx Truss Screw M6 x 25Torx Truss Screw M6 x 25
-
69503194033 Cable CoverCable Cover
-
70518321570 Open Clamp. Model-Ltd ECSOpen Clamp. Model-Ltd ECS
-
70518321570 Open Clamp. Model-Touratech ECSOpen Clamp. Model-Touratech ECS
-
71210261040 Hex. Flange Screw M6 x 10. Model-Ltd ECSHex. Flange Screw M6 x 10. Model-Ltd ECS
-
71210261040 Hex. Flange Screw M6 x 10. Model-Touratech ECSHex. Flange Screw M6 x 10. Model-Touratech ECS
-
72250000807 Torx Truss Screw M6 x 25Torx Truss Screw M6 x 25
