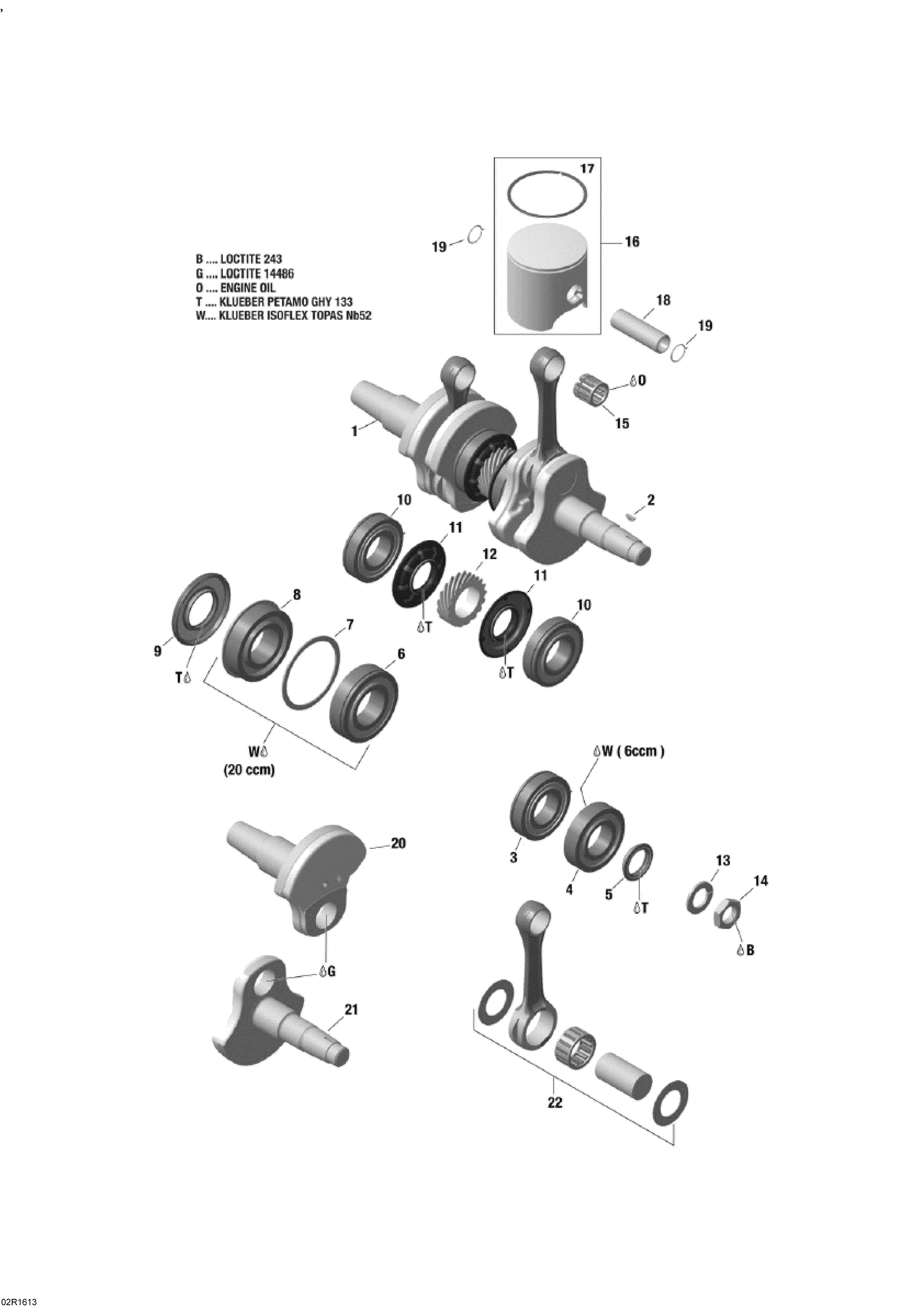

01- Crankshaft And Piston - 800 E-TEC для BRP Lynx Xtrim RE (2-Stroke) - 2016
-
№АртикулНазвание
-
1420893480 Crankshaft Ass?y. Includes 1 To 12Crankshaft Ass?y. Includes 1 To 12
-
2420246015 Woodruff KeyWoodruff Key
-
3420832175 Ball BearingBall Bearing
-
4420832575 Ball BearingBall Bearing
-
5420931795 Oil Seal. Included In Gasket KitOil Seal. Included In Gasket Kit
-
6420832602 Ball BearingBall Bearing
-
7420926190 WasherWasher
-
8420832702 Ball BearingBall Bearing
-
9420931284 Oil Seal. Included In Gasket KitOil Seal. Included In Gasket Kit
-
10420832175 Ball BearingBall Bearing
-
11420931455 Oil Seal. Included In Gasket KitOil Seal. Included In Gasket Kit
-
12420834565 Central GearCentral Gear
-
13420945759 Lock WasherLock Washer
-
14420842239 Hex. Nut, M22 x 1.5. Tightening Torque 120-130 NmHex. Nut, M22 x 1.5. Tightening Torque 120-130 Nm
-
15420832030 Needle BearingNeedle Bearing
-
16420893436 Piston Ass'y, 81.852mm. Includes 16 To 17Piston Ass'y, 81.852mm. Includes 16 To 17
-
17420815416 Semi-Trapez RingSemi-Trapez Ring
-
18420916480 Piston PinPiston Pin
-
19420845467 Piston Circlip. Included In Gasket KitPiston Circlip. Included In Gasket Kit
-
22420892568 Rod Repair Kit (MAG Side)Rod Repair Kit (MAG Side)
-
22420892569 Rod Repair Kit (PTO Side)Rod Repair Kit (PTO Side)
