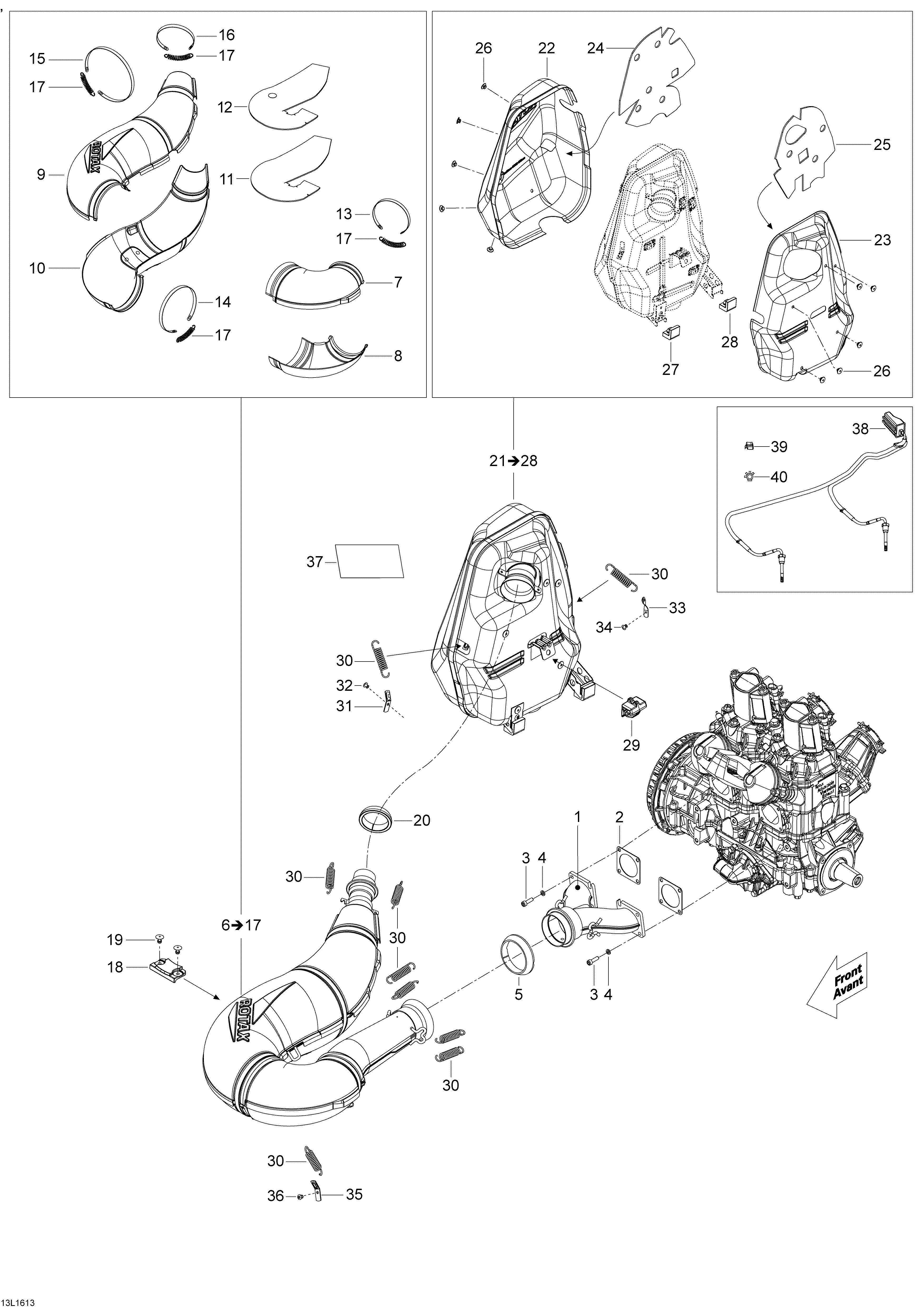

01- Exhaust System для BRP Lynx Xtrim RE (2-Stroke) - 2016
-
№АртикулНазвание
-
1420673373 Exhaust ManifoldExhaust Manifold
-
2420430482 GasketGasket
-
3250000414 Socket Screw M8 x 22Socket Screw M8 x 22
-
4250200111 WasherWasher
-
5514053487 Exhaust GasketExhaust Gasket
-
6514055062 Tune Pipe Ass'y. Includes 6 To 17Tune Pipe Ass'y. Includes 6 To 17
-
7514054992 Front Upper EnveloppeFront Upper Enveloppe
-
8514054993 Front Lower EnveloppeFront Lower Enveloppe
-
9514055067 Rear Upper Half EnveloppeRear Upper Half Enveloppe
-
10514054990 Rear Lower Half EnveloppeRear Lower Half Enveloppe
-
11514054487 Insulating WoolInsulating Wool
-
12514054553 Insulating WoolInsulating Wool
-
13514054408 Retaining StrapRetaining Strap
-
14514054409 Retaining StrapRetaining Strap
-
15514054410 Retaining StrapRetaining Strap
-
16514053499 Retaining StrapRetaining Strap
-
17514053643 SpringSpring
-
18514054275 BumperBumper
-
19293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
20514054174 Exhaust GasketExhaust Gasket
-
21514055083 Muffler Ass'y. Includes 21 To 28Muffler Ass'y. Includes 21 To 28
-
22514054986 RH DeflectorRH Deflector
-
23514054967 LH DeflectorLH Deflector
-
24514054711 RH Insulating WoolRH Insulating Wool
-
25514054299 LH Insulating WoolLH Insulating Wool
-
26390910000 Pop Rivet 3/16''Pop Rivet 3/16''
-
27514054274 Lower StopperLower Stopper
-
28514054496 Lower StopperLower Stopper
-
29514054606 Upper StopperUpper Stopper
-
30415107100 SpringSpring
-
31514054974 Spring BracketSpring Bracket
-
32390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
33514054974 Spring BracketSpring Bracket
-
34390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
35514054975 Spring BracketSpring Bracket
-
36293150147 RivetRivet
-
37514054987 Heat ShieldHeat Shield
-
38415129998 Dual Thermocouple ModuleDual Thermocouple Module
-
39414227300 Spring ClipSpring Clip
-
40514055100 LockLock
