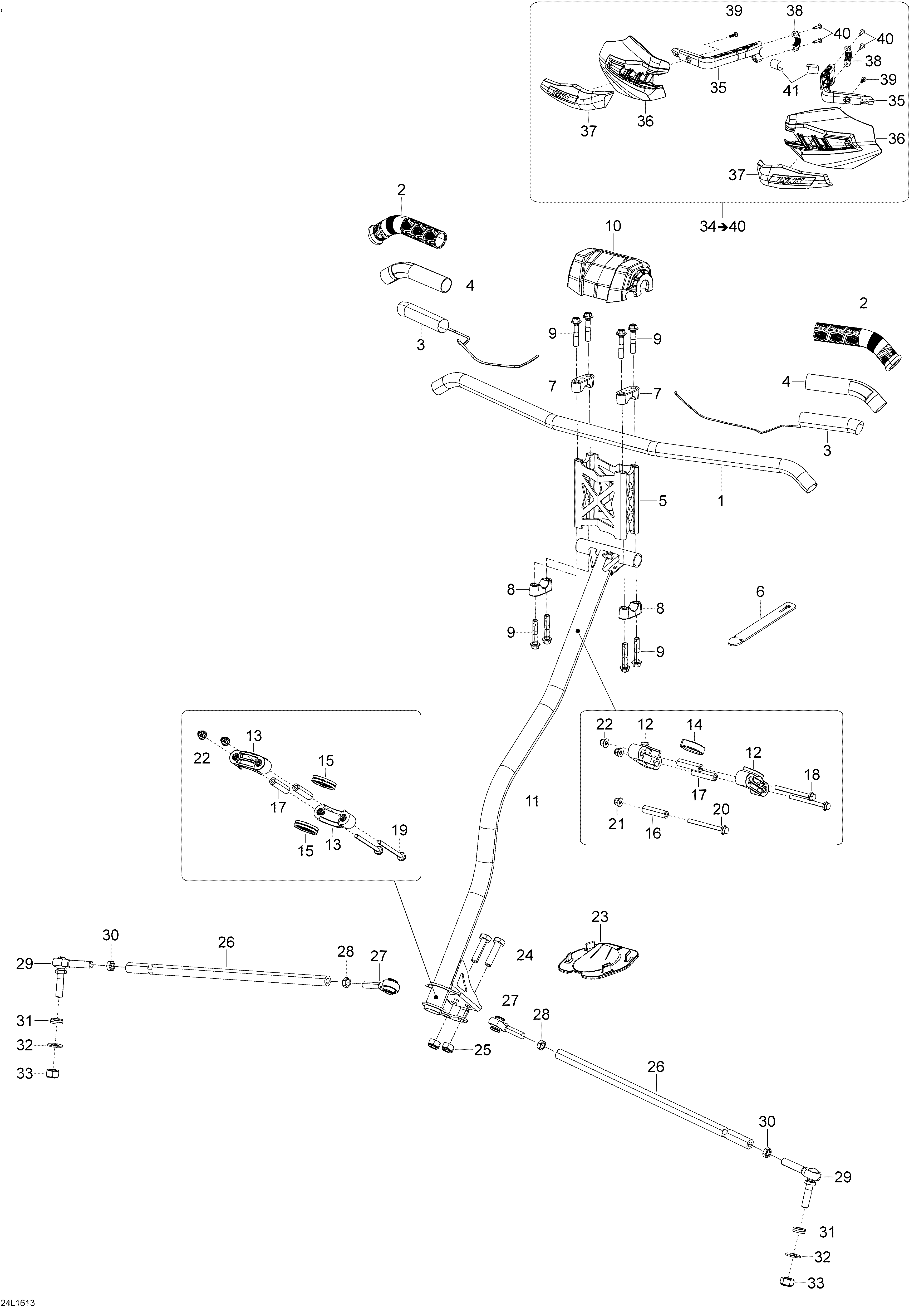

07- Steering System для BRP Lynx Xtrim RE (2-Stroke) - 2016
-
№АртикулНазвание
-
1506152724 Handle BarHandle Bar
-
2506152486 GripGrip
-
3506152665 Heated Film (32W)Heated Film (32W)
-
4506152548 InsulantInsulant
-
5506152616 Black Extension (130mm)Black Extension (130mm)
-
6293850117 Rubber StrapRubber Strap
-
7506152751 Steering SupportSteering Support
-
8506152751 Steering SupportSteering Support
-
9250000352 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
10506152553 Steering PadSteering Pad
-
11506152839 Main TubeMain Tube
-
12506152508 Upper Half-HousingUpper Half-Housing
-
13506152217 Lower Half-HousingLower Half-Housing
-
14506152509 Upper Vibrat. GasketUpper Vibrat. Gasket
-
15506152518 Lower Vibrat. GasketLower Vibrat. Gasket
-
16506152297 Housing BushingHousing Bushing
-
17506152297 Housing BushingHousing Bushing
-
18207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
19207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
20207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
21233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
22233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
23506152163 PlatePlate
-
24207004044 Hex. Screw M10 x 40Hex. Screw M10 x 40
-
25232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
26506152498 Tie RodTie Rod
-
27506152081 Ball JointBall Joint
-
28250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
29506152684 Ball JointBall Joint
-
30732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
31503192496 WasherWasher
-
32506152582 WasherWasher
-
33233201464 Elastic Stop Nut M10Elastic Stop Nut M10
-
35517305290 LH ArmLH Arm
-
35517305293 RH ArmRH Arm
-
36517305291 LH Air DeflectorLH Air Deflector
-
36517305294 RH Air DeflectorRH Air Deflector
-
37517305546 LH CapLH Cap
-
37517305547 RH CapRH Cap
-
38517305296 BrideBride
-
39250000760 Torx Truss Screw K50 x 20Torx Truss Screw K50 x 20
-
40250000724 Torx Screw M5 x 20Torx Screw M5 x 20
-
41294000973 Friction TapeFriction Tape
