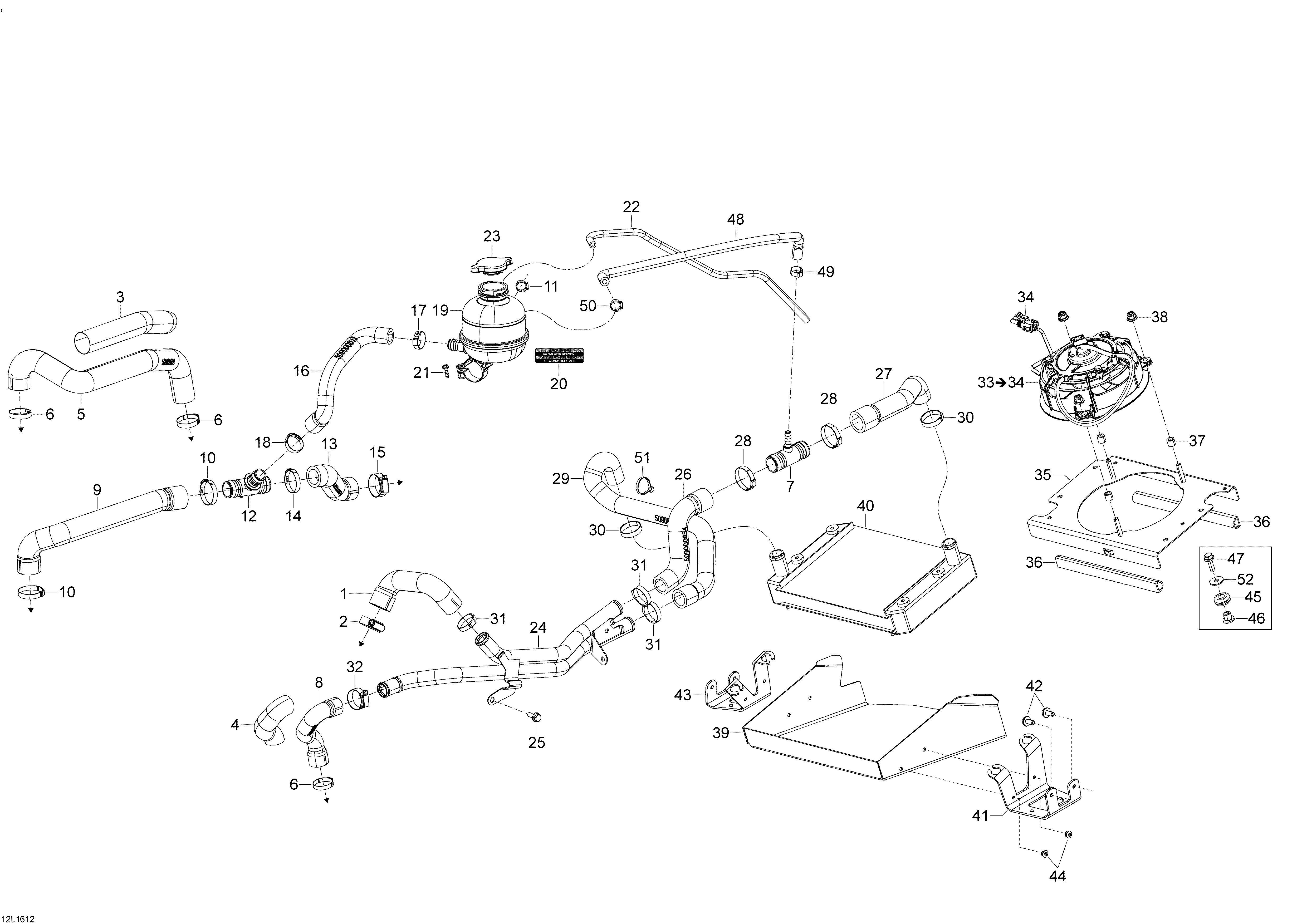

01- Cooling System для BRP Lynx Xtrim SC (4-Stroke) - 2016
-
№АртикулНазвание
-
1509000858 Engine Outlet HoseEngine Outlet Hose
-
2509000443 Gear ClampGear Clamp
-
3509000513 Protector TubeProtector Tube
-
4509000513 Protector TubeProtector Tube
-
5509000859 HoseHose
-
6509000529 Crimp ClampCrimp Clamp
-
7509000510 T-FittingT-Fitting
-
8509000888 Radiator HoseRadiator Hose
-
9509000697 Radiator HoseRadiator Hose
-
10509000529 Crimp ClampCrimp Clamp
-
11293650025 Crimp ClampCrimp Clamp
-
12509000372 T-FittingT-Fitting
-
13509000864 Radiator HoseRadiator Hose
-
14509000529 Crimp ClampCrimp Clamp
-
15509000443 Gear ClampGear Clamp
-
16509000811 HoseHose
-
17509000442 Crimp ClampCrimp Clamp
-
18293650099 Crimp ClampCrimp Clamp
-
19509000875 Coolant TankCoolant Tank
-
20516005904 Warning DecalWarning Decal
-
21241151640 Hex. Flange Screw K50 x 16Hex. Flange Screw K50 x 16
-
22509000775 HoseHose
-
23509000180 Pressure CapPressure Cap
-
24509000800 Water PipeWater Pipe
-
25207561634 Hex. Flanged Screw M6 x 16Hex. Flanged Screw M6 x 16
-
26509000854 Radiator HoseRadiator Hose
-
27509000862 Radiator HoseRadiator Hose
-
28509000162 Gear ClampGear Clamp
-
29509000855 Radiator HoseRadiator Hose
-
30293650099 Crimp ClampCrimp Clamp
-
31293650141 Crimp ClampCrimp Clamp
-
32509000443 Gear ClampGear Clamp
-
33709200573 Fan Ass'y. Includes 33 To 34Fan Ass'y. Includes 33 To 34
-
34278000220 Female Housing, 2 CircuitsFemale Housing, 2 Circuits
-
34409007300 Female TerminalFemale Terminal
-
35509000928 Fan SupportFan Support
-
36509000823 D-SealD-Seal
-
37605453745 BushingBushing
-
38233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
39509000893 Air DeflectorAir Deflector
-
40509000488 RadiatorRadiator
-
41509000933 RH SupportRH Support
-
42250000574 Hex. Flange Screw M6 x 12Hex. Flange Screw M6 x 12
-
43509000934 LH SupportLH Support
-
44390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
45709000582 GrommetGrommet
-
46293900100 BushingBushing
-
47207562034 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
48509000860 Breather HoseBreather Hose
-
49293650047 Crimp ClampCrimp Clamp
-
50293650025 Crimp ClampCrimp Clamp
-
51414115200 Tie Rap 188mmTie Rap 188mm
-
52250200082 Flat WasherFlat Washer
