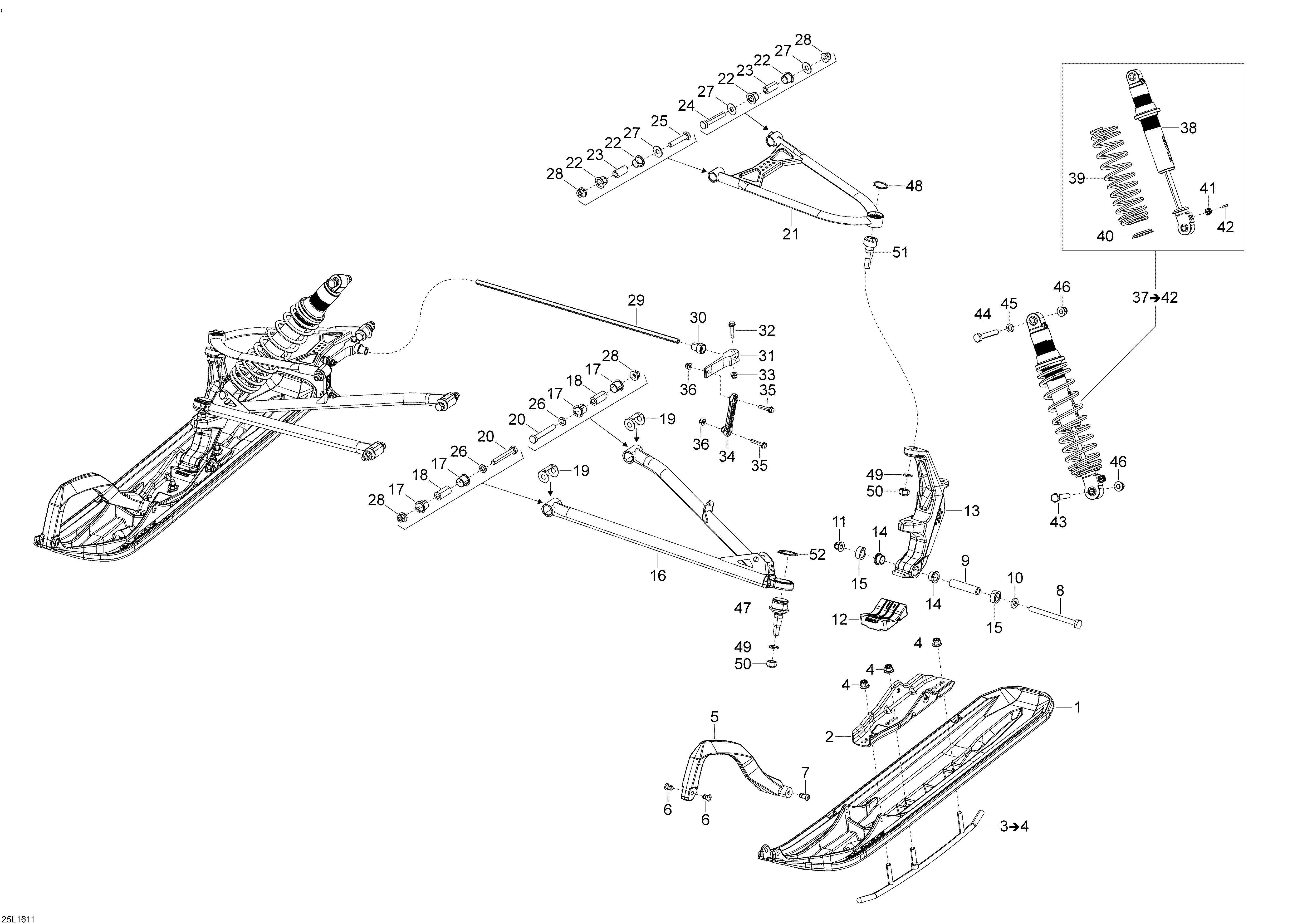

07- Front Suspension And Ski для BRP Lynx Xtrim SC (4-Stroke) - 2016
-
№АртикулНазвание
-
1505073154 Black Blade SkiBlack Blade Ski
-
2505073240 Ski BridgeSki Bridge
-
3860200959 Ski Runner Kit. Includes 3 To 4Ski Runner Kit. Includes 3 To 4
-
4233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
5505073108 White HandleWhite Handle
-
6505071812 RetainerRetainer
-
7505072133 RetainerRetainer
-
8231080044 Socket HD Screw M10 x 100Socket HD Screw M10 x 100
-
9506133300 Ski AxleSki Axle
-
10732900049 WasherWasher
-
11233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
12505073411 Rubber DamperRubber Damper
-
13505073630 Black LH Ski Leg (6L)Black LH Ski Leg (6L)
-
13505073631 Black RH Ski Leg (6R)Black RH Ski Leg (6R)
-
14505072690 BushingBushing
-
15505072807 SpacerSpacer
-
16505073584 Black RH Lower ArmBlack RH Lower Arm
-
16505073583 Black LH Lower ArmBlack LH Lower Arm
-
17505073330 CushionCushion
-
18505072209 BushingBushing
-
19505072634 Wear PlateWear Plate
-
20250000291 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
21505073588 Black LH Upper ArmBlack LH Upper Arm
-
21505073589 Black RH Upper ArmBlack RH Upper Arm
-
22505073329 BushingBushing
-
23505072143 BushingBushing
-
24250000290 Hex. Cap Screw M10 x 60Hex. Cap Screw M10 x 60
-
25250000289 Hex. Cap Screw M10 X 50Hex. Cap Screw M10 X 50
-
26503189564 WasherWasher
-
27505072392 WasherWasher
-
28250100165 Nut M10Nut M10
-
29505072444 StabilisatorStabilisator
-
30505072445 BushingBushing
-
31505072446 Stabilisator LeverStabilisator Lever
-
32207663046 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
33233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
34505072204 Double Ball Joint LinkDouble Ball Joint Link
-
35207663046 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
36233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
38505073456 ShockShock
-
39505072846 Spring (280mm - 14N/mm)Spring (280mm - 14N/mm)
-
40503194270 Spring StopperSpring Stopper
-
41505072753 Adjuster KnobAdjuster Knob
-
42250000644 Socket Screw M3 x 10Socket Screw M3 x 10
-
43207005544 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
44207006544 Hex. Cap Screw M10 x 65Hex. Cap Screw M10 x 65
-
45503189564 WasherWasher
-
46233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
47505073636 Ball JointBall Joint
-
48293370070 CirclipCirclip
-
49234021410 Flat WasherFlat Washer
-
50250100089 Nut M12Nut M12
-
51505072913 Ball JointBall Joint
-
52293370035 CirclipCirclip
