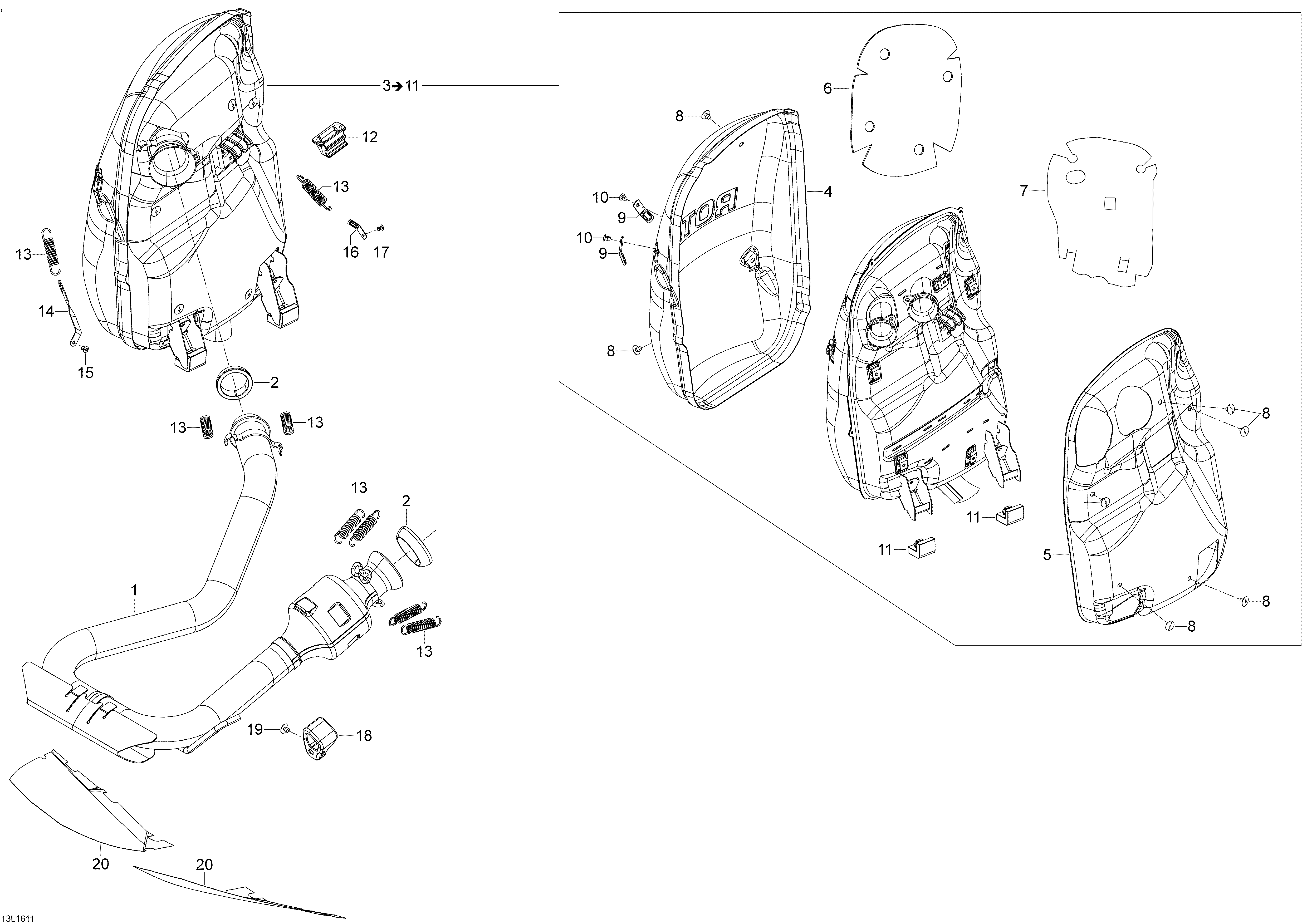

01- Exhaust System для BRP Lynx Xtrim SC (4-Stroke) - 2016
-
№АртикулНазвание
-
1514054960 Welded PipeWelded Pipe
-
2707601033 Exhaust GasketExhaust Gasket
-
3514055324 Muffler Ass'y. Includes 3 To 11Muffler Ass'y. Includes 3 To 11
-
4514055325 RH Heat ShieldRH Heat Shield
-
5514055128 LH Heat ShieldLH Heat Shield
-
6514054769 RH Insulating WoolRH Insulating Wool
-
7514054881 LH Insulating WoolLH Insulating Wool
-
8390910000 Pop Rivet 3/16”Pop Rivet 3/16”
-
9514054522 Spring BracketSpring Bracket
-
10390909200 RivetRivet
-
11514054496 Lower StopperLower Stopper
-
12514054346 StopperStopper
-
13415107100 SpringSpring
-
14514055030 Spring BracketSpring Bracket
-
15390909100 Rivet AvexRivet Avex
-
16514054522 Spring BracketSpring Bracket
-
17390909200 RivetRivet
-
18514055012 RubberRubber
-
19293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
20514054999 Heat ShieldHeat Shield
