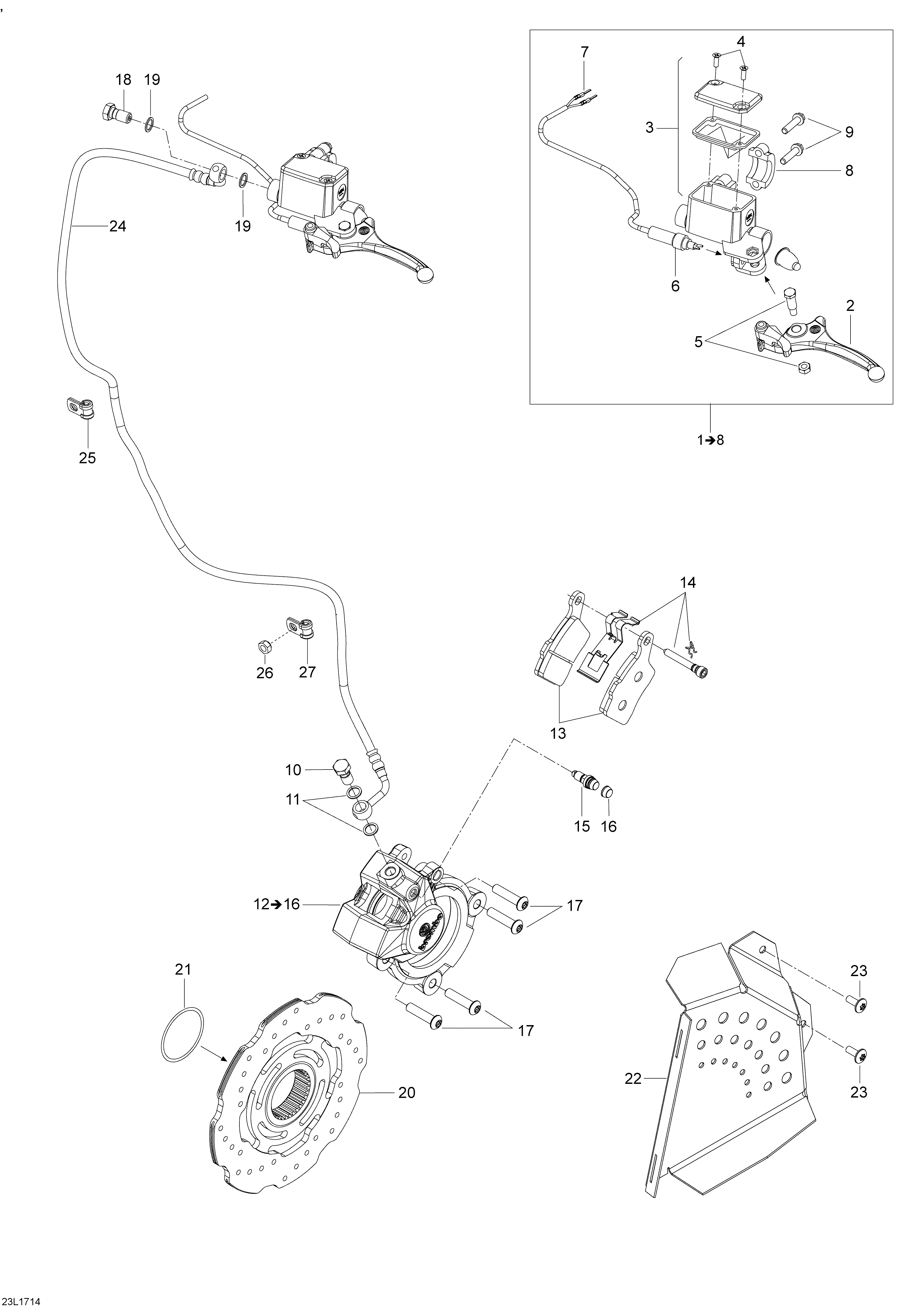

06- Hydraulic Brakes для BRP Lynx Commander 800, 2017 - 2017
-
№АртикулНазвание
-
1507032596 Cylinder Master Ass'y. Includes 1 To 8Cylinder Master Ass'y. Includes 1 To 8
-
2507032476 LeverLever
-
3507032478 Reservoir Ass'yReservoir Ass'y
-
4415129356 Screw M4 x 20Screw M4 x 20
-
5415030000 PinPin
-
6507032479 MicroswitchMicroswitch
-
7515175232 Male TerminalMale Terminal
-
8719000049 Clamp KitClamp Kit
-
9250000447 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
10507032551 Banjo BoltBanjo Bolt
-
11705600310 Copper WasherCopper Washer
-
12507032602 Caliper Ass'y. Includes 12 To 16Caliper Ass'y. Includes 12 To 16
-
13507032473 Brake PadsBrake Pads
-
14507032474 Pin, Clip, Spring KitPin, Clip, Spring Kit
-
15507032475 BleederBleeder
-
17250000764 Torx Screw M8 x 35Torx Screw M8 x 35
-
18507032551 Banjo BoltBanjo Bolt
-
19705600310 Copper WasherCopper Washer
-
20507032513 DiskDisk
-
21293300134 O-RingO-Ring
-
22507032537 Disk ProtectorDisk Protector
-
23250000717 Torx HD Screw M6 x 16Torx HD Screw M6 x 16
-
24507032548 Steel Braided HoseSteel Braided Hose
-
25293650256 ClampClamp
-
26233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
27414176000 Open ClampOpen Clamp
