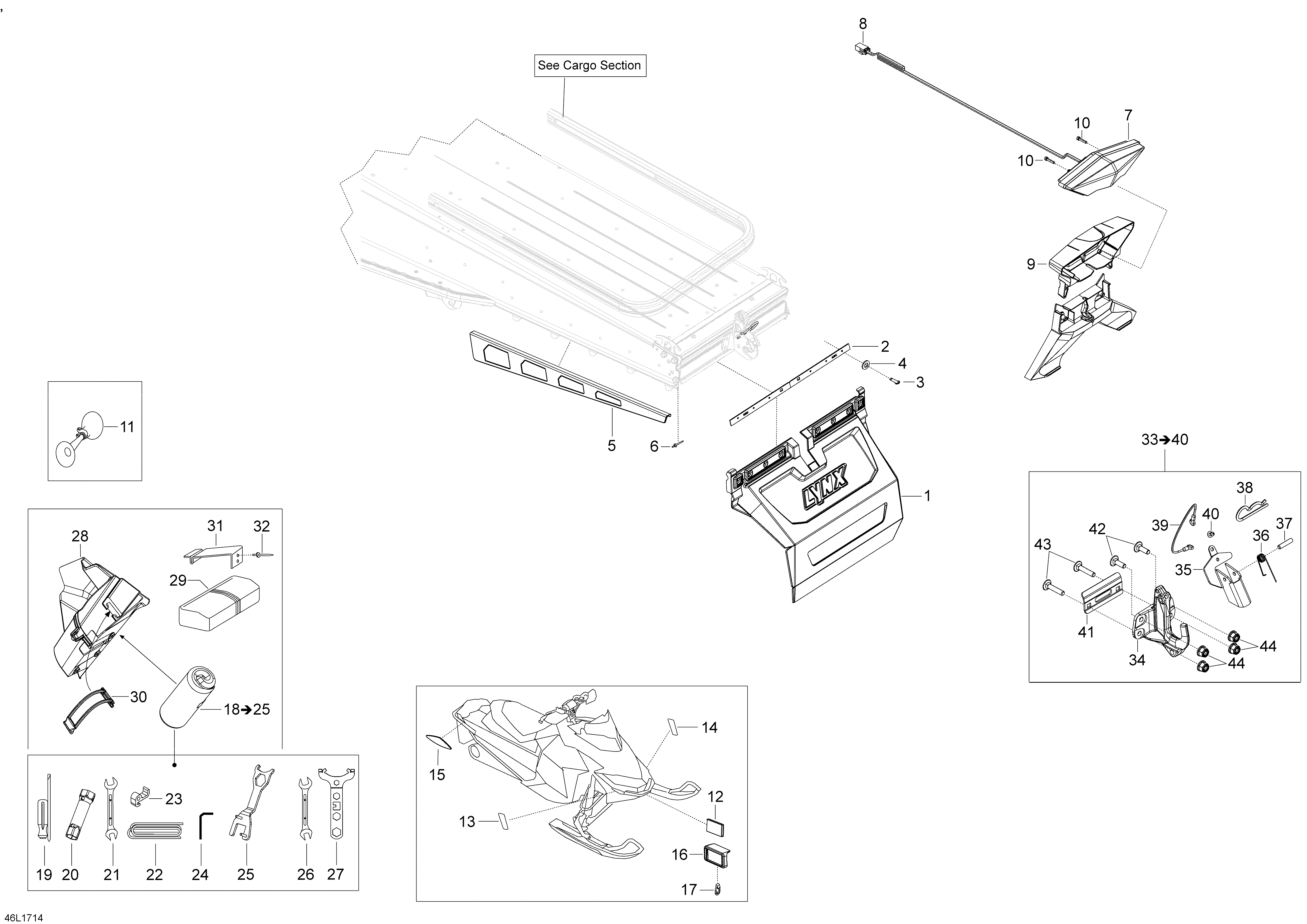

09- Utilities для BRP Lynx Commander 800, 2017 - 2017
-
№АртикулНазвание
-
1520001407 Snow Guard 500 Long BlackSnow Guard 500 Long Black
-
2520001021 PlatePlate
-
3250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
4250200025 Washer M5Washer M5
-
5520000693 RH ProtectorRH Protector
-
5520000694 LH ProtectorLH Protector
-
6293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
7520000692 Rear LightRear Light
-
9511000763 Rear Light CoverRear Light Cover
-
1040611 Screw K40 x 10Screw K40 x 10
-
11549011291 HornHorn
-
1221118 Reflector (Bright)Reflector (Bright)
-
13520001600 Yellow RH ReflectorYellow RH Reflector
-
14520001601 Yellow LH ReflectorYellow LH Reflector
-
15705002423 Amber Lateral ReflectorAmber Lateral Reflector
-
16520000871 Reflector SupportReflector Support
-
1727120 Tie RapTie Rap
-
18529000077 Tool Kit. Includes 18 To 25Tool Kit. Includes 18 To 25
-
19529000004 Screw DriverScrew Driver
-
20529000046 Set Key, 16/21 mmSet Key, 16/21 mm
-
21529000002 Fork Wrench, 10/13 mmFork Wrench, 10/13 mm
-
22412500200 Starter Rope, MeterStarter Rope, Meter
-
23529000060 Starter GripStarter Grip
-
24520001142 Spacing ToolSpacing Tool
-
25520001499 WrenchWrench
-
2634017 WrenchWrench
-
27520001442 WrenchWrench
-
29572036310 Box CoverBox Cover
-
30520000528 LatchLatch
-
315346728 Tool Kit RackTool Kit Rack
-
3236108 RivetRivet
-
33520001475 Hitch Ass'y. Includes 33 to 40Hitch Ass'y. Includes 33 to 40
-
34520001476 HookHook
-
35520001477 Locking PlateLocking Plate
-
36520001478 SpringSpring
-
3741012 PinPin
-
3841029 Hair pinHair pin
-
39520001479 Retainer CableRetainer Cable
-
40390909100 Avex RivetAvex Rivet
-
41520000727 PlatePlate
-
42207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
43207784044 Bolt Carriage M8 X 40Bolt Carriage M8 X 40
-
44233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
