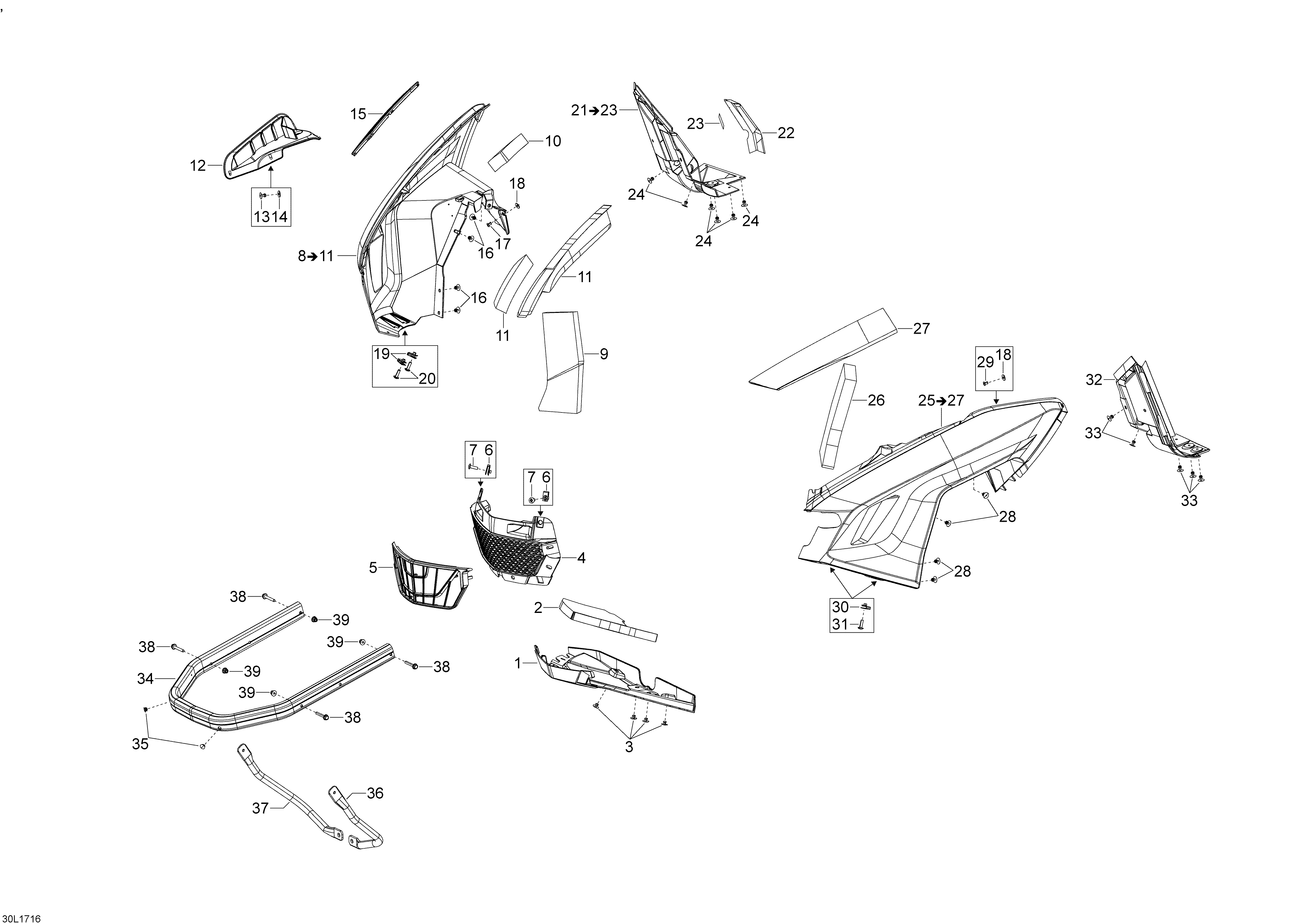

09- Bottom Pan для BRP Lynx Commander 800, 2017 - 2017
-
№АртикулНазвание
-
1502007184 Black Front Bottom PanBlack Front Bottom Pan
-
2502007002 InsulatorInsulator
-
3293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
4502007145 Front GrillFront Grill
-
5502007393 Front Grill With MeshFront Grill With Mesh
-
6250000048 Panel Nut M6Panel Nut M6
-
7250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
8502007520 Black RH Bottom Pan Ass?y. Includes 8 To 11Black RH Bottom Pan Ass?y. Includes 8 To 11
-
9502007526 InsulatorInsulator
-
11517305977 InsulatorInsulator
-
12517305975 RH Bottom Pan Air VentRH Bottom Pan Air Vent
-
13293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
14250200025 WasherWasher
-
15517305976 RH Bottom Pan GrillRH Bottom Pan Grill
-
16293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
17390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
18234052450 Flat Washer M5Flat Washer M5
-
19250000048 Panel Nut M6Panel Nut M6
-
20250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
21502007191 Black RH Rear Bottom Pan Ass?y. Includes 21 To 23Black RH Rear Bottom Pan Ass?y. Includes 21 To 23
-
22502007038 Aluminium FoilAluminium Foil
-
2344110 Al-TapeAl-Tape
-
24293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
25502007665 Black LH Bottom Pan Ass?y. Includes 25 To 27Black LH Bottom Pan Ass?y. Includes 25 To 27
-
26502007003 InsulatorInsulator
-
27502007185 InsulatorInsulator
-
28293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
29390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
30250000048 Panel Nut M6Panel Nut M6
-
31250000722 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
32502007195 Black LH Rear Bottom PanBlack LH Rear Bottom Pan
-
33293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
34502007686 Red BumperRed Bumper
-
35293730047 Black DartBlack Dart
-
36502007014 LH Bumper Support TubeLH Bumper Support Tube
-
37502007015 RH Bumper Support TubeRH Bumper Support Tube
-
38207664044 Hex. Flange Screw M6 x 40Hex. Flange Screw M6 x 40
-
39233261414 Elastic Flange Nut M6Elastic Flange Nut M6
