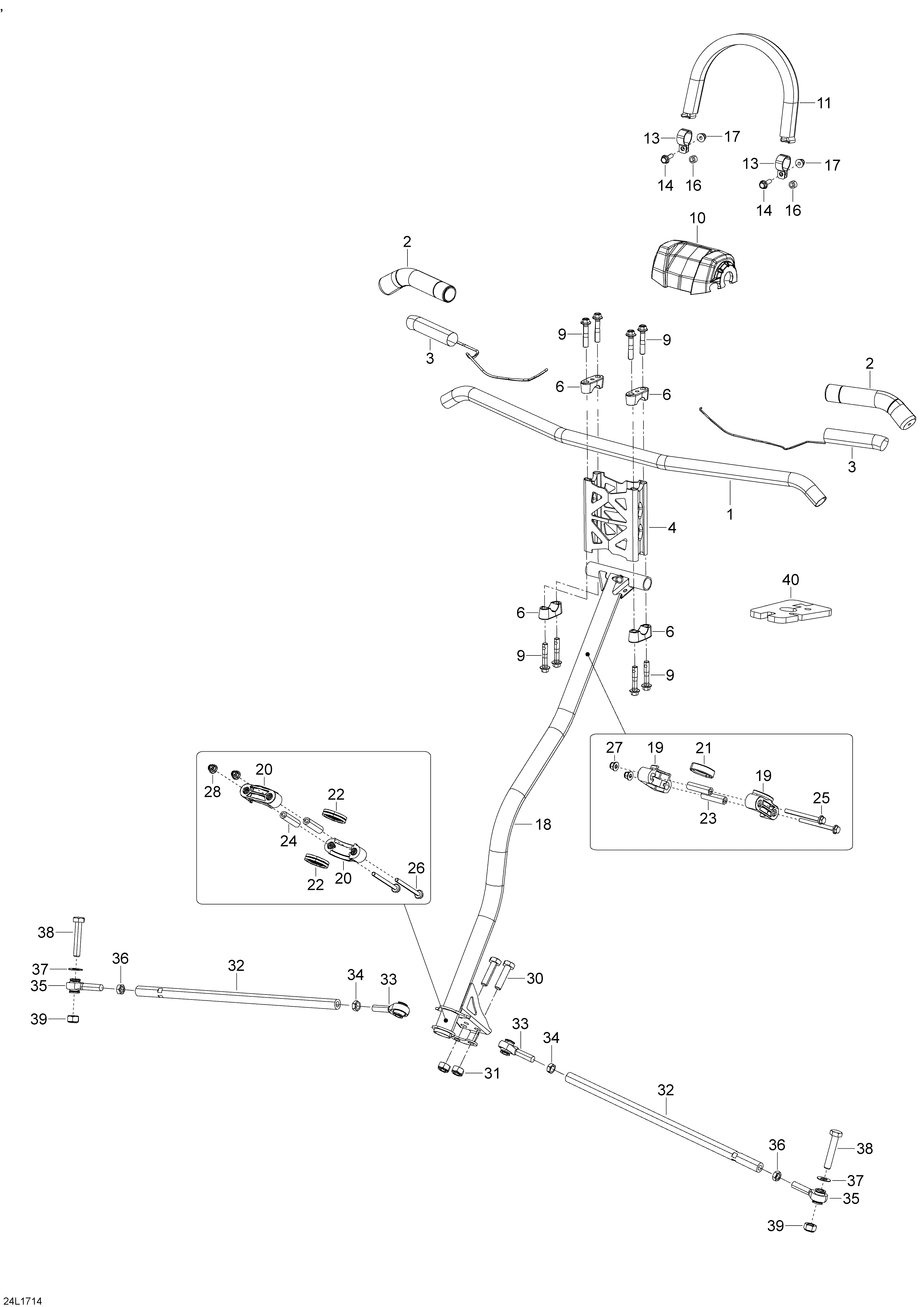

07- Steering System для BRP Lynx Commander LTD, 2017 - 2017
-
№АртикулНазвание
-
1506152722 Handle BarHandle Bar
-
2506152483 GripGrip
-
3506152428 Heating Element (25W)Heating Element (25W)
-
4506152569 Black Extension (205mm)Black Extension (205mm)
-
6506152751 Steering SupportSteering Support
-
9250000285 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
10506152553 Steering PadSteering Pad
-
11506152115 Strap Ass'yStrap Ass'y
-
13506152536 Black Support PlateBlack Support Plate
-
14207662054 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
16506152156 BushingBushing
-
17233261494 Hex. Flange Elastic Nut M6Hex. Flange Elastic Nut M6
-
18506152962 Main TubeMain Tube
-
19506152508 Upper Half-HousingUpper Half-Housing
-
20506152217 Lower Half-HousingLower Half-Housing
-
21506152509 Upper Vibrat. GasketUpper Vibrat. Gasket
-
22506152518 Lower Vibrat. GasketLower Vibrat. Gasket
-
23506152297 Housing BushingHousing Bushing
-
24506152297 Housing BushingHousing Bushing
-
25207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
26207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
27233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
28233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
29506152163 Stopper PlateStopper Plate
-
30207004044 Hex.Cap Screw M10 x 40Hex.Cap Screw M10 x 40
-
31232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
32506152498 Tie RodTie Rod
-
33506152081 Ball Joint (LH Thread)Ball Joint (LH Thread)
-
34250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
35506152019 Ball Joint (RH Thread)Ball Joint (RH Thread)
-
36732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
37506152582 WasherWasher
-
38207005544 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
39233201464 Elastic Stop Nut M10Elastic Stop Nut M10
-
40506152404 CushionCushion
