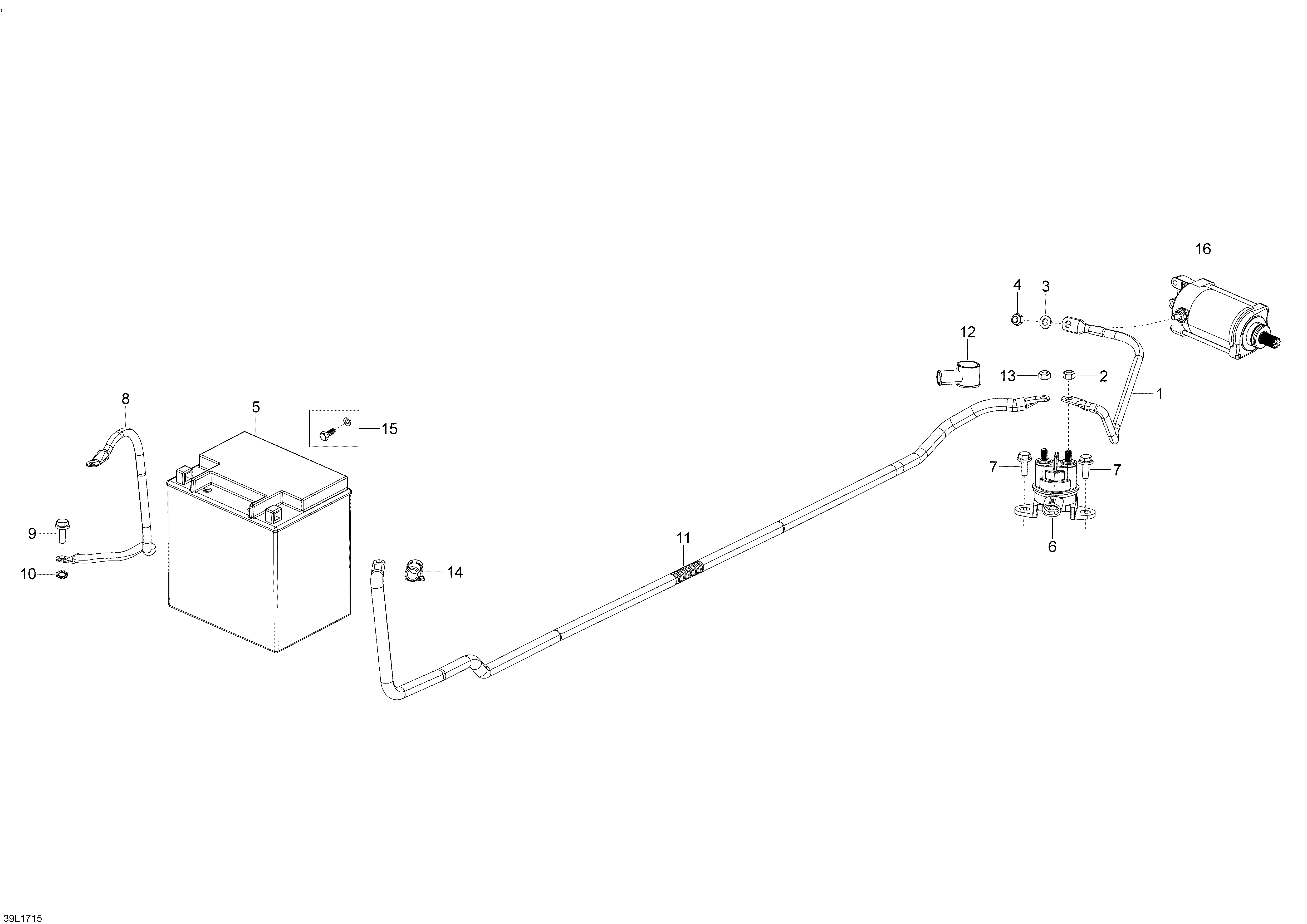

10- Battery And Electric Starter для BRP Lynx Commander LTD, 2017 - 2017
-
№АртикулНазвание
-
1515176806 Start CableStart Cable
-
2232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
3234061410 Flat Washer M6Flat Washer M6
-
4232561434 Elastic Stop Nut M6Elastic Stop Nut M6
-
5410301203 Battery 18a. 600HO E-TECBattery 18a. 600HO E-TEC
-
6278003012 Starter SolenoidStarter Solenoid
-
7207561644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
8515176780 Ground CableGround Cable
-
9233261414 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
10250200041 Serrated Lock WasherSerrated Lock Washer
-
11515176805 Battery CableBattery Cable
-
12570151000 Protection CapProtection Cap
-
13232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
14710000495 Protector CapProtector Cap
-
15250000282 Battery Fastener KitBattery Fastener Kit
-
16515177389 Electric StarterElectric Starter
