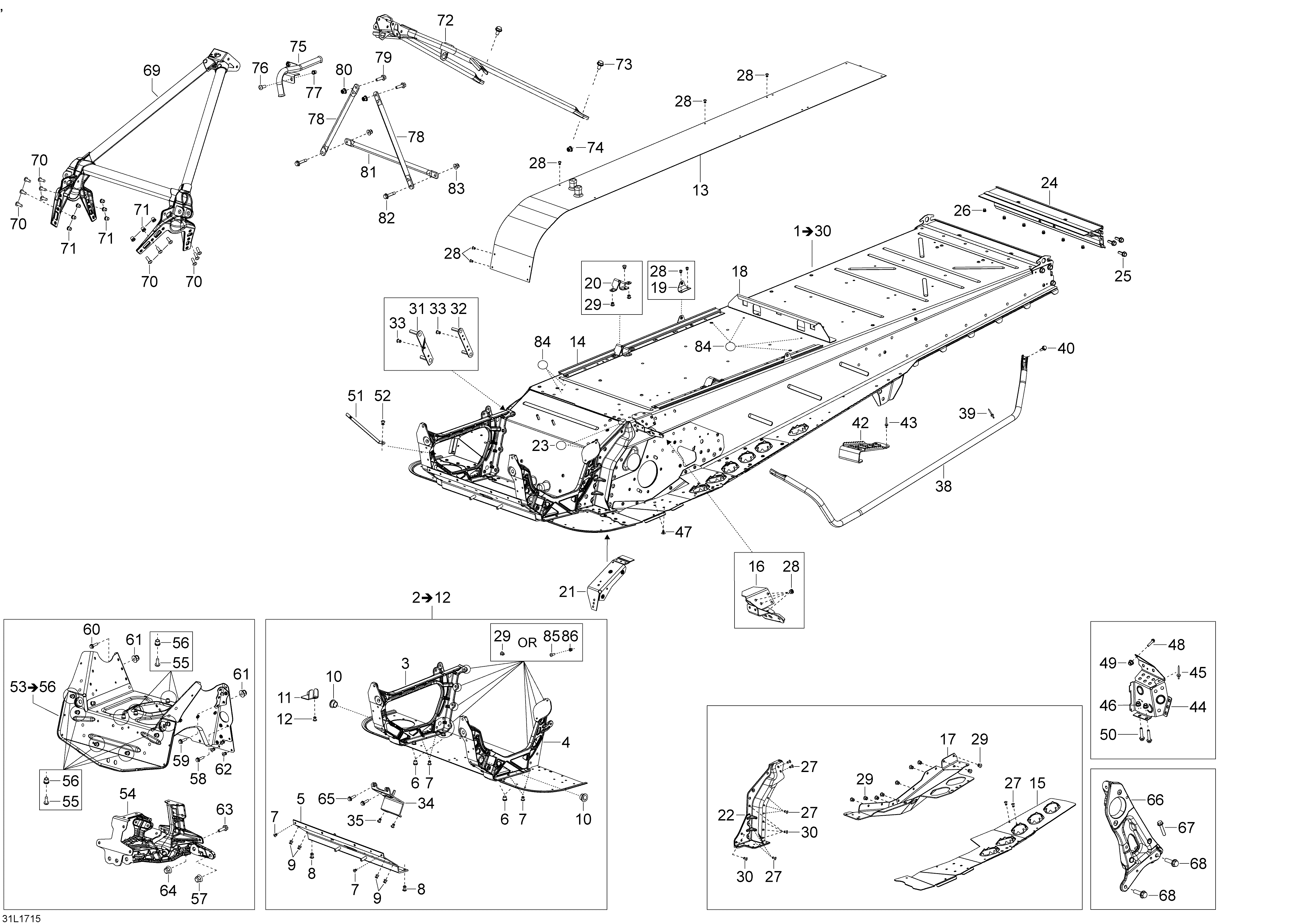

09- Frame для BRP Lynx Commander LTD, 2017 - 2017
-
№АртикулНазвание
-
1518329161 Black Frame. Includes 1 To 30, Model-std & LtdBlack Frame. Includes 1 To 30, Model-std & Ltd
-
1518329356 Black Frame. Includes 1 To 30, Model-Ltd ECSBlack Frame. Includes 1 To 30, Model-Ltd ECS
-
2518328813 Module E. Includes 2 To 12Module E. Includes 2 To 12
-
3518326795 RH MemberRH Member
-
4518326796 LH MemberLH Member
-
5518326198 Front MemberFront Member
-
6605636002 Clinch Nut M8Clinch Nut M8
-
7390909100 RivetRivet
-
8293150120 RivetRivet
-
9293150119 RivetRivet
-
10505072690 CushionCushion
-
11518328194 Muffler SupportMuffler Support
-
12293150163 RivetRivet
-
13509000976 RadiatorRadiator
-
14518326107 Fastening RailFastening Rail
-
15518328332 LH FootrestLH Footrest
-
15518328333 RH FootrestRH Footrest
-
16605355235 Fastening BracketFastening Bracket
-
17518328016 LH Drive Axle CoverLH Drive Axle Cover
-
17518328017 RH Drive Axle CoverRH Drive Axle Cover
-
18518325986 Battery SupportBattery Support
-
19518329164 Seat Box BracketSeat Box Bracket
-
20518326109 LH Support Tube BracketLH Support Tube Bracket
-
20518326110 RH Support Tube BracketRH Support Tube Bracket
-
21518326430 Clinch Nut PlateClinch Nut Plate
-
22518325524 LH Frame CornerLH Frame Corner
-
22518328024 RH Frame CornerRH Frame Corner
-
23518325560 Adhesive PatchAdhesive Patch
-
24518328748 Rear ProfileRear Profile
-
25207582586 Screw M8 x 25Screw M8 x 25
-
26293150174 RivetRivet
-
27390909100 RivetRivet
-
28390909200 RivetRivet
-
29293150119 RivetRivet
-
30293150183 RivetRivet
-
31518326123 Front Gearbox Counter PlateFront Gearbox Counter Plate
-
32518326124 Rear Gearbox Counter PlateRear Gearbox Counter Plate
-
33390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
34518325943 MAG SupportMAG Support
-
35293150119 RivetRivet
-
38518326963 LH Footrest Support TubeLH Footrest Support Tube
-
38518326964 RH Footrest Support TubeRH Footrest Support Tube
-
39390909100 RivetRivet
-
40207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
42520001208 Black FootrestBlack Footrest
-
43293150102 Pop Rivet 3/16''Pop Rivet 3/16''
-
44518327374 Black LH Toe HookBlack LH Toe Hook
-
44518327376 Black RH Toe HookBlack RH Toe Hook
-
45390909200 RivetRivet
-
46605636003 Clinch Nut M6Clinch Nut M6
-
47414644300 DartDart
-
48207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
49233261414 Nut M6Nut M6
-
50250000717 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
51514054846 Spring BracketSpring Bracket
-
52390909200 RivetRivet
-
53518328394 Cross Member. Includes 53 To 56Cross Member. Includes 53 To 56
-
54518327487 SupportSupport
-
55207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
56233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
57233281414 Elastic Flange Nut M6Elastic Flange Nut M6
-
58210262050 Forming Screw M6 x 20Forming Screw M6 x 20
-
59207662544 Screw M6 x 25Screw M6 x 25
-
60207563034 Screw M6 x 30Screw M6 x 30
-
61233261414 Nut M6Nut M6
-
62293150163 RivetRivet
-
63207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
64233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
65207661644 Screw M6 x 16Screw M6 x 16
-
66518328434 Pulley SupportPulley Support
-
67207582586 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
68207583086 Hex. Flange Screw M8 x 30Hex. Flange Screw M8 x 30
-
69518326970 Front MemberFront Member
-
70207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
71233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
72518329105 Upper Support TubeUpper Support Tube
-
73207182044 Hex. Screw M8 x 20Hex. Screw M8 x 20
-
74232581414 Hex. Stop Nut M8Hex. Stop Nut M8
-
75512060451 Guide TubeGuide Tube
-
76207662544 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
77233261414 Hex. Flange Elastic Nut M6Hex. Flange Elastic Nut M6
-
78518325114 Upper Column SupportUpper Column Support
-
79207662056 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
80233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
81518325115 Center Column SupportCenter Column Support
-
82207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
83233261414 Elastic Flange Nut M6Elastic Flange Nut M6
-
84518325560 Adhesive PatchAdhesive Patch
-
85207662044 Hex. Flange Screw M6 x 20Hex. Flange Screw M6 x 20
-
86233261414 Elastic Flange Nut M6Elastic Flange Nut M6
