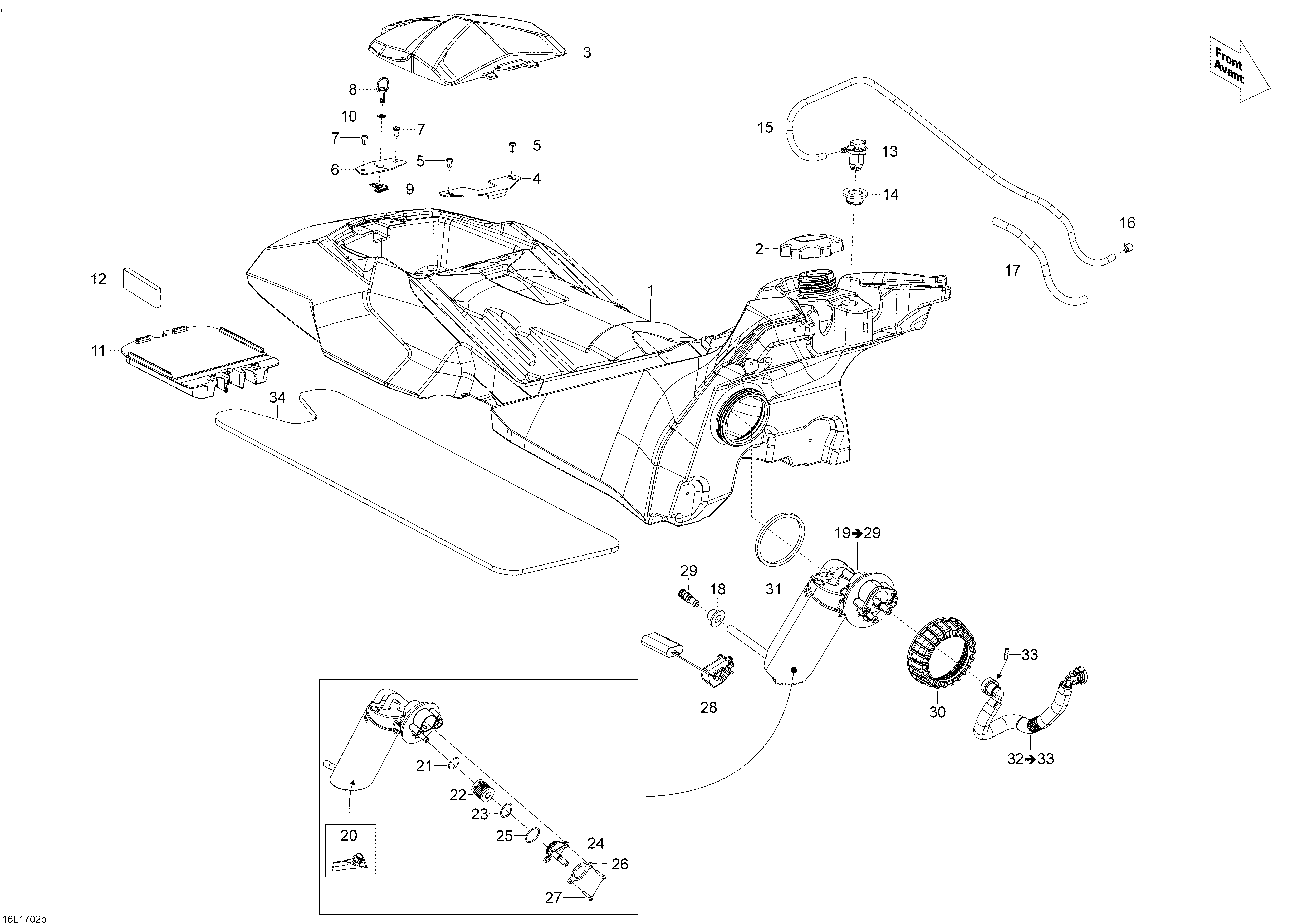

02- Fuel System 4 Strokes для BRP Lynx 49 Ranger ST (Explorer) - 2017
-
№АртикулНазвание
-
1513033836 Fuel TankFuel Tank
-
2513033723 CapCap
-
3513033832 Battery Cover 2UPBattery Cover 2UP
-
4513033775 Lock PlateLock Plate
-
5205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
6513033731 Lock PlateLock Plate
-
7205951046 Socket HD Screw M5 x 10Socket HD Screw M5 x 10
-
8513033735 Quarter Turn FastenerQuarter Turn Fastener
-
9513033736 Quarter Turn Fastener PlateQuarter Turn Fastener Plate
-
10732610072 Push NutPush Nut
-
11513033732 Battery SupportBattery Support
-
12510006023 FoamFoam
-
13513033842 Check ValveCheck Valve
-
14513033596 GrommetGrommet
-
15415080200 Polyurethane HosePolyurethane Hose
-
16414554800 Spring ClampSpring Clamp
-
17504153468 Protector TubeProtector Tube
-
18293300184 O RingO Ring
-
19513033838 Fuel Pump. Includes 19 To 29Fuel Pump. Includes 19 To 29
-
20415129451 Fuel Filter (In Tank, Fuel Pump)Fuel Filter (In Tank, Fuel Pump)
-
21415129511 O RingO Ring
-
22415129510 Fuel FilterFuel Filter
-
23415129512 Wave WasherWave Washer
-
24415129685 CoverCover
-
25415129509 O RingO Ring
-
26415129569 Fuel Pump RingFuel Pump Ring
-
27415129513 ScrewScrew
-
28415129671 Fuel Level SensorFuel Level Sensor
-
29414872100 Fuel Filter (In Tank, Fuel Line)Fuel Filter (In Tank, Fuel Line)
-
30513033040 Fuel Pump NutFuel Pump Nut
-
31513033707 GasketGasket
-
32513033582 Fuel Hose Ass'y. Includes 32 To 33Fuel Hose Ass'y. Includes 32 To 33
-
33513033135 Locking ClipLocking Clip
-
34513033701 Insulating FoamInsulating Foam
