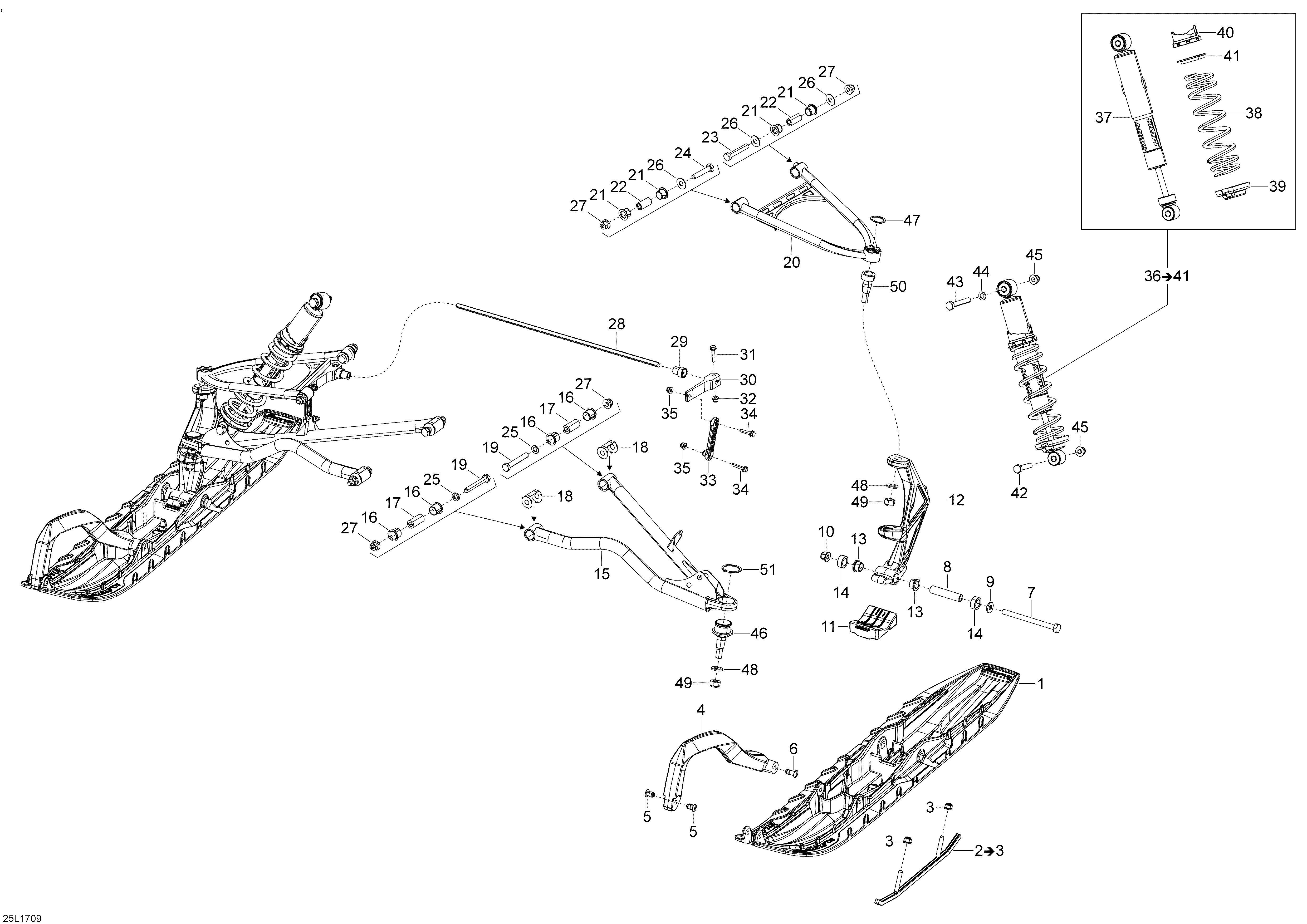

07- Front Suspension And Ski для BRP Lynx 49 Ranger ST (Explorer) - 2017
-
№АртикулНазвание
-
1505073834 Black Blade DS SkiBlack Blade DS Ski
-
2860201044 Ski Runner Kit. Includes 2 To 3Ski Runner Kit. Includes 2 To 3
-
3233281414 Elastic Flange Nut M8Elastic Flange Nut M8
-
4505073651 Orange HandleOrange Handle
-
5505071812 RetainerRetainer
-
6505072133 RetainerRetainer
-
7230003044 Hex. Cap Screw M10 x 130Hex. Cap Screw M10 x 130
-
8506133300 Ski AxleSki Axle
-
9732900049 WasherWasher
-
10233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
11505072594 Rubber DamperRubber Damper
-
12505073443 LH Ski LegLH Ski Leg
-
12505073444 RH Ski LegRH Ski Leg
-
13505072690 BushingBushing
-
14505072807 SpacerSpacer
-
15505073925 RH Lower ArmRH Lower Arm
-
15505073924 LH Lower ArmLH Lower Arm
-
16505073330 CushionCushion
-
17505072209 BushingBushing
-
18505072634 Wear PlateWear Plate
-
19250000291 Hex. Cap Screw M10 x 70Hex. Cap Screw M10 x 70
-
20505073985 LH Upper ArmLH Upper Arm
-
20505073986 RH Upper ArmRH Upper Arm
-
21505073329 BushingBushing
-
22505072143 BushingBushing
-
23250000290 Hex. Cap Screw M10 x 60Hex. Cap Screw M10 x 60
-
24250000289 Hex. Cap Screw M10 X 50Hex. Cap Screw M10 X 50
-
25503189564 WasherWasher
-
26505072392 WasherWasher
-
27250100165 Nut M10Nut M10
-
28505072444 StabilisatorStabilisator
-
29505072445 BushingBushing
-
30505074050 Stabilisator LeverStabilisator Lever
-
31207663046 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
32233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
33505074123 Double Ball Joint LinkDouble Ball Joint Link
-
34207663046 Hex. Flange Screw M6 x 30Hex. Flange Screw M6 x 30
-
35233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
37505073342 ShockShock
-
38505072882 Spring (300mm - 16N/mm)Spring (300mm - 16N/mm)
-
39706200881 Spring StopperSpring Stopper
-
40505073625 Adjuster CamAdjuster Cam
-
41503191872 Spring GuideSpring Guide
-
42207005544 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
43207006544 Hex. Cap Screw M10 x 65Hex. Cap Screw M10 x 65
-
44503189564 WasherWasher
-
45233201414 Elastic Flange Nut M10Elastic Flange Nut M10
-
46505073636 Ball JointBall Joint
-
47293370070 CirclipCirclip
-
48234021410 Flat WasherFlat Washer
-
49250100089 Nut M12Nut M12
-
50505072913 Ball JointBall Joint
-
51293370035 CirclipCirclip
