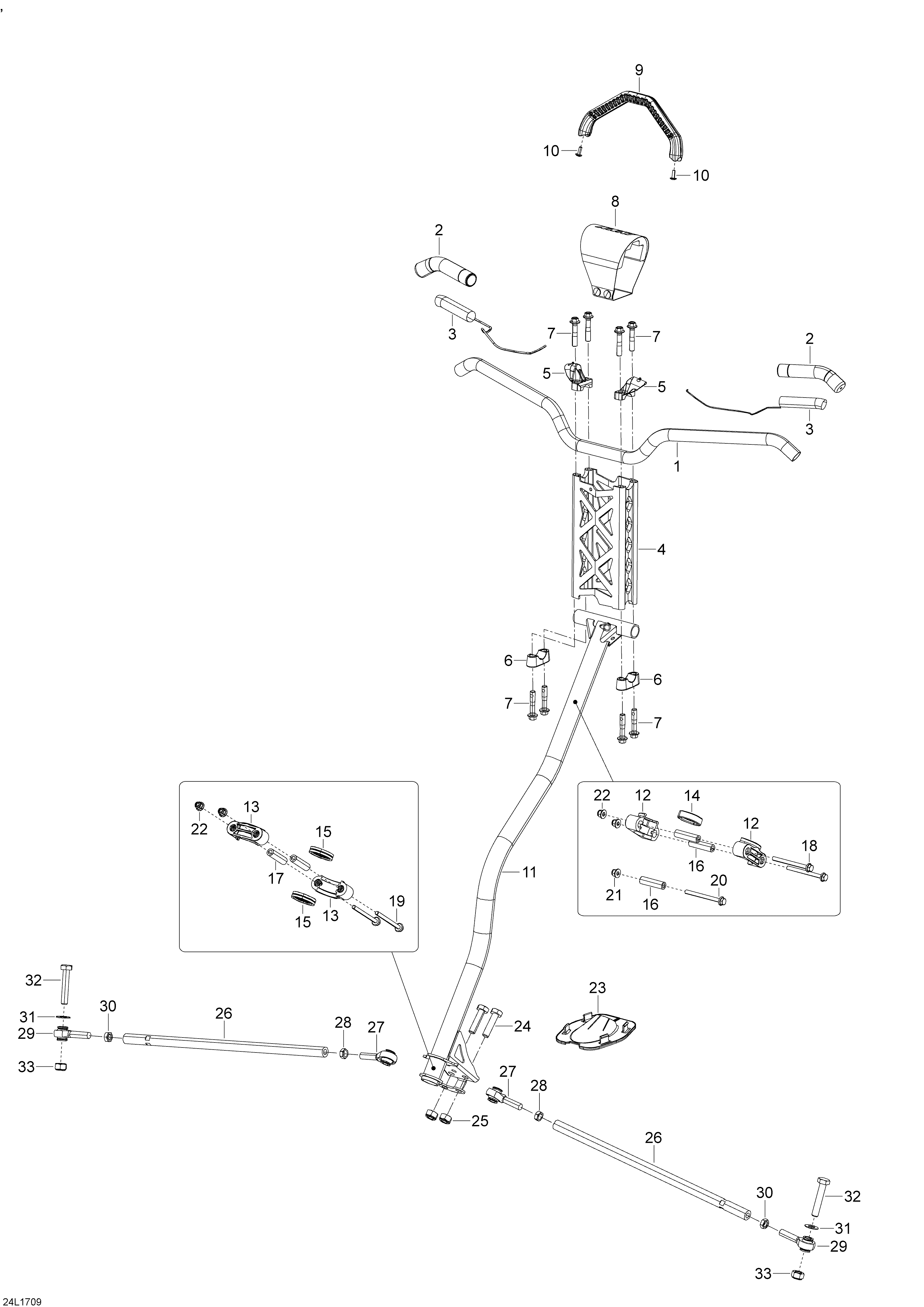

07- Steering System для BRP Lynx 49 Ranger ST (Explorer) - 2017
-
№АртикулНазвание
-
1506152762 Handle BarHandle Bar
-
2506152483 GripGrip
-
3506152428 Heated Film (25W)Heated Film (25W)
-
4506152616 Black Extension (130mm)Black Extension (130mm)
-
5506152942 LH SupportLH Support
-
5506152943 RH SupportRH Support
-
6506152750 Steering SupportSteering Support
-
7250000352 Hex. Flange Screw M8 x 40Hex. Flange Screw M8 x 40
-
8506152649 Steering PadSteering Pad
-
9506152460 Strap Ass?yStrap Ass?y
-
10250000779 Torx Truss Screw M6 x 18Torx Truss Screw M6 x 18
-
11506152964 Main TubeMain Tube
-
12506152508 Upper Half HousingUpper Half Housing
-
13506152217 Lower Half HousingLower Half Housing
-
14506152509 Upper Vibrat. GasketUpper Vibrat. Gasket
-
15506152518 Lower Vibrat. GasketLower Vibrat. Gasket
-
16506152297 Housing BushingHousing Bushing
-
17506152297 Housing BushingHousing Bushing
-
18207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
19207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
20207667086 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
21233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
22233261416 Elastic Flange Nut M6Elastic Flange Nut M6
-
23506152163 PlatePlate
-
24207004044 Hex. Screw M10 x 40Hex. Screw M10 x 40
-
25232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
26506152498 Tie RodTie Rod
-
27506152081 Ball JointBall Joint
-
28250100016 LH Hex Jam Nut M10LH Hex Jam Nut M10
-
29506152019 Ball JointBall Joint
-
30732610010 RH Hex Jam Nut M10RH Hex Jam Nut M10
-
31506152582 WasherWasher
-
32207005554 Hex. Screw M10 x 55Hex. Screw M10 x 55
-
33233201464 Elastic Stop Nut M10Elastic Stop Nut M10
