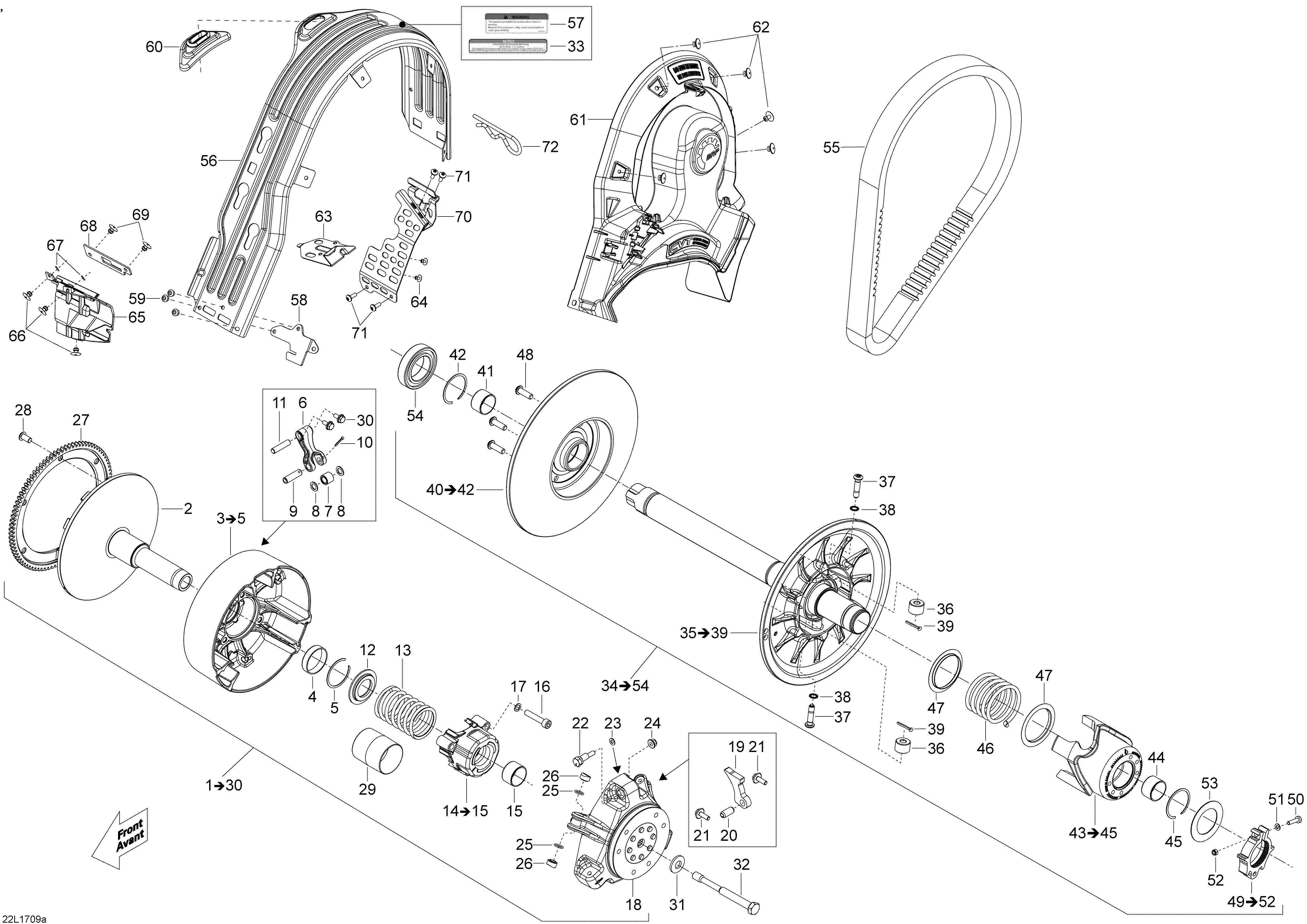

05- Pulley System 600HO E-TEC для BRP Lynx 49 Ranger STD - 2017
-
№АртикулНазвание
-
2417222937 Fixed Flange Ass'yFixed Flange Ass'y
-
3417222181 Sliding Flange Ass'y. Includes 3 To 5Sliding Flange Ass'y. Includes 3 To 5
-
4417222758 Journal BearingJournal Bearing
-
5293370037 CirclipCirclip
-
6417222671 Ramp (716)Ramp (716)
-
7417222947 Journal BearingJournal Bearing
-
8417004302 WasherWasher
-
9417222594 Axle RampAxle Ramp
-
10250400060 Elastic Stop Nut M5Elastic Stop Nut M5
-
11417223164 Spring Cover Ass'ySpring Cover Ass'y
-
12417222312 BushingBushing
-
13414689800 CirclipCirclip
-
14417007500 Spring Seat. Includes 14 To 15Spring Seat. Includes 14 To 15
-
15417009204 Spring (Red / White, 356-600N / 80-135lbs)Spring (Red / White, 356-600N / 80-135lbs)
-
16205084044 Torx Button Head Screw M6 x 30Torx Button Head Screw M6 x 30
-
17250200009 Governor Cup Ass'yGovernor Cup Ass'y
-
18417223669 RollerRoller
-
19417222799 Roller AxleRoller Axle
-
20250400050 O-RingO-Ring
-
21250000418 Slider ShoeSlider Shoe
-
22417223501 Spring WasherSpring Washer
-
23417005600 Drive Pulley BoltDrive Pulley Bolt
-
24233261414 Drive Pulley Bolt DecalDrive Pulley Bolt Decal
-
25732401030 Driven Pulley Ass'yDriven Pulley Ass'y
-
26417223271 Fixed Flange Ass'yFixed Flange Ass'y
-
27417223738 RollerRoller
-
28250000533 StudStud
-
29417009205 Lock Washer M8Lock Washer M8
-
30250000412 Spring Pin M3 x 30Spring Pin M3 x 30
-
31250200144 Sliding Flange Ass'ySliding Flange Ass'y
-
32417120000 CirclipCirclip
-
33516005503 Cam Ass'y (41/45?)Cam Ass'y (41/45?)
-
35417127389 Circlip. Includes 35 To 39Circlip. Includes 35 To 39
-
36417127016 Spring (Pink, 204-367N / 46-83lbs)Spring (Pink, 204-367N / 46-83lbs)
-
37417127294 Torx Screw M8 x 25, Scotch GripTorx Screw M8 x 25, Scotch Grip
-
38250200009 Pulley Adjuster Ass'yPulley Adjuster Ass'y
-
39250400063 Socket Head Screw M5 x 25Socket Head Screw M5 x 25
-
40417127317 Sliding Flange Ass'y. Includes 40 To 42Sliding Flange Ass'y. Includes 40 To 42
-
41417127318 BushingBushing
-
42293370049 WasherWasher
-
43417127376 Strength Washer. Includes 43 To 45Strength Washer. Includes 43 To 45
-
44417127318 Hex. Cap Screw M8 x 75Hex. Cap Screw M8 x 75
-
45293370049 Spacer (1.91/2.21mm)Spacer (1.91/2.21mm)
-
46417127039 Spacer (0.91/1.12mm)Spacer (0.91/1.12mm)
-
47417127116 ShimShim
-
48250000757 Drive BeltDrive Belt
-
49415129604 Belt Guard. Includes 49 To 52Belt Guard. Includes 49 To 52
-
50205052544 Belt Guard Security DecalBelt Guard Security Decal
-
51234051410 Front BracketFront Bracket
-
52232551414 RivetRivet
-
53417127155 GuideGuide
-
54504152574 CVT Air DuctCVT Air Duct
-
55417300383 Pop Rivet 3/16''Pop Rivet 3/16''
-
56417300357 StopperStopper
-
57516006900 RivetRivet
-
58417300423 Front SupportFront Support
-
59390909200 Pop Rivet 3/16''Pop Rivet 3/16''
-
60417300381 Flat WasherFlat Washer
-
61417300441 ReinforcementReinforcement
-
62293150103 RivetRivet
-
63417300445 Belt Guard BracketBelt Guard Bracket
-
64390909200 Torx Truss Screw M5 x 14Torx Truss Screw M5 x 14
-
65417300430 Hair PinHair Pin
-
66293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
67517225900 Flat WasherFlat Washer
-
68417300421 ReinforcementReinforcement
-
69390909100 RivetRivet
-
70417300448 Belt Guard BracketBelt Guard Bracket
-
71250000742 Torx Screw M5 x 14Torx Screw M5 x 14
-
72114045200 Hair PinHair Pin
