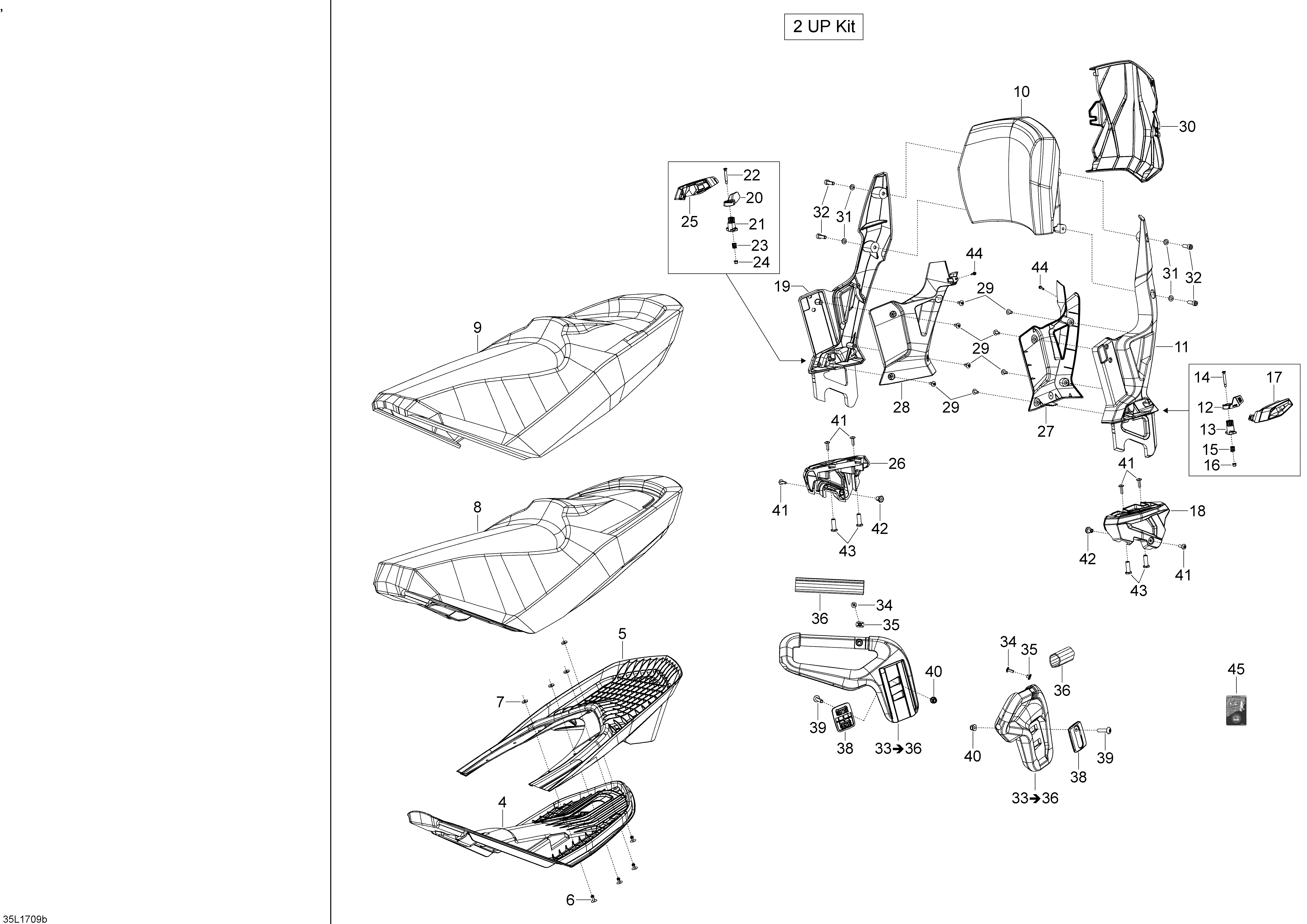

09- Seat Touring Kit для BRP Lynx 49 Ranger STD - 2017
-
№АртикулНазвание
-
4510005646 Seat BaseSeat Base
-
5510005868 Seat Rear BaseSeat Rear Base
-
6293150108 Pop Rivet 3/16Pop Rivet 3/16
-
7250200025 WasherWasher
-
8510006221 Seat FoamSeat Foam
-
9510006097 Black/Gray/White Seat CoverBlack/Gray/White Seat Cover
-
10510005554 BackrestBackrest
-
11510005557 LH ArmLH Arm
-
12708200373 LH LeverLH Lever
-
13708200266 LH LatchLH Latch
-
14708200152 StemStem
-
15708200263 SpringSpring
-
16233251494 Elastic Flange Nut M5Elastic Flange Nut M5
-
17510005617 LH CapLH Cap
-
18511000903 LH AnchorLH Anchor
-
19510005558 RH ArmRH Arm
-
20708200374 RH LeverRH Lever
-
21708200267 RH LatchRH Latch
-
22708200152 StemStem
-
23708200263 SpringSpring
-
24233251494 Elastic Flange Nut M5Elastic Flange Nut M5
-
25510005618 RH CapRH Cap
-
26511000902 RH AnchorRH Anchor
-
27510005609 LH CoverLH Cover
-
28510005610 RH CoverRH Cover
-
29250000789 Torx Truss Screw M6 x 14Torx Truss Screw M6 x 14
-
30510005556 Rear BackrestRear Backrest
-
31234080600 Flat WasherFlat Washer
-
32205582560 Socket Screw M8 x 25Socket Screw M8 x 25
-
33510005850 LH Handle Ass'y. Includes 33 To 36LH Handle Ass'y. Includes 33 To 36
-
33510005851 RH Handle Ass'y. Includes 33 To 36RH Handle Ass'y. Includes 33 To 36
-
34250000721 Torx Truss Screw M6 x 16Torx Truss Screw M6 x 16
-
35293100003 Weld NutWeld Nut
-
36510004449 Handle GripHandle Grip
-
38510004405 MouldingMoulding
-
39250000753 Torx Truss Screw M8 x 35Torx Truss Screw M8 x 35
-
40233281416 Elastic Flange Nut M8Elastic Flange Nut M8
-
41250000446 Torx Truss Screw M6 x 20Torx Truss Screw M6 x 20
-
42511000822 InsertInsert
-
43520001473 InsertInsert
-
44250000068 Tapping ScrewTapping Screw
