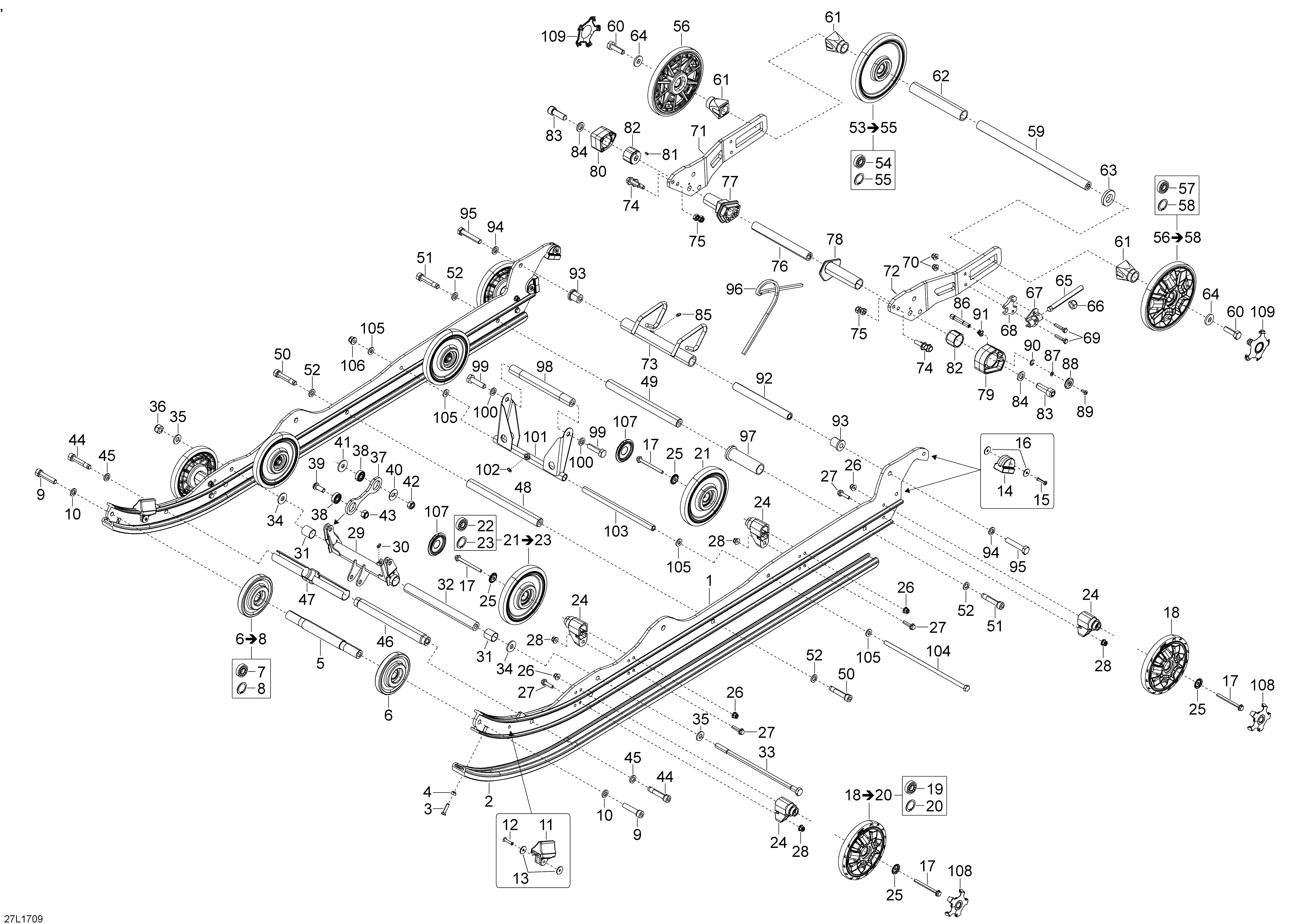

08- Rear Suspension для BRP Lynx 49 Ranger STD - 2017
-
№АртикулНазвание
-
1503194228 RunnerRunner
-
2503193981 Slider ShoeSlider Shoe
-
3208562531 Screw M6 x 25Screw M6 x 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192842 Front Wheel ShaftFront Wheel Shaft
-
6503192611 Wheel 100mm. Includes 6 To 8Wheel 100mm. Includes 6 To 8
-
7503190396 Ball BearingBall Bearing
-
9205504544 Socket Screw M10 x 45Socket Screw M10 x 45
-
10503192496 Flat WasherFlat Washer
-
11503192106 Rubber StopperRubber Stopper
-
12293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
13503191273 WasherWasher
-
14503191291 Rubber StopperRubber Stopper
-
15293150142 Pop Rivet 3/18''Pop Rivet 3/18''
-
16503191273 WasherWasher
-
17207667056 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
18503193734 Wheel 141mm. Includes 18 To 20Wheel 141mm. Includes 18 To 20
-
19503190396 Ball BearingBall Bearing
-
21503191316 Wheel 141mm. Includes 21 To 23Wheel 141mm. Includes 21 To 23
-
22503190396 Ball BearingBall Bearing
-
23415129371 CirclipCirclip
-
24503193894 SupportSupport
-
25503191820 Cup WasherCup Washer
-
26233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
27207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
28233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
29503193580 Front SwingFront Swing
-
30408200700 Grease FittingGrease Fitting
-
31503193822 BushingBushing
-
32503193893 Lower ShaftLower Shaft
-
33503193227 Bolt M10 x 251Bolt M10 x 251
-
34503191926 WasherWasher
-
35250200138 WasherWasher
-
36233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
37605254159 Connecting RodConnecting Rod
-
38605631003 Ball BearingBall Bearing
-
39205402546 Socket HD Screw M10 x 25Socket HD Screw M10 x 25
-
4025004 Spring CupSpring Cup
-
41234002600 Washer M10Washer M10
-
42233401414 Lock Spring Nut M10Lock Spring Nut M10
-
43232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
44205505054 Socket HD Screw M10 x 50Socket HD Screw M10 x 50
-
45503192496 WasherWasher
-
46605353958 ShaftShaft
-
47605355096 Limiter Strap RetainerLimiter Strap Retainer
-
485343471 ShaftShaft
-
49503191260 ShaftShaft
-
50205505054 Socket HD Screw M10 x 50Socket HD Screw M10 x 50
-
51205503554 Socket HD Screw M10 x 35Socket HD Screw M10 x 35
-
52503192496 WasherWasher
-
53503192140 Wheel 165mm. Includes 53 To 55Wheel 165mm. Includes 53 To 55
-
54503190396 Ball BearingBall Bearing
-
55415129371 CirclipCirclip
-
56503193809 Wheel 165mm. Includes 56 To 58Wheel 165mm. Includes 56 To 58
-
57503190396 Ball BearingBall Bearing
-
58415129371 CirclipCirclip
-
59503190429 Rear AxleRear Axle
-
60250000019 Hex. Cap Screw M10 x 35Hex. Cap Screw M10 x 35
-
61503190428 SpacerSpacer
-
62503193052 SpacerSpacer
-
63503190432 WasherWasher
-
64503190439 WasherWasher
-
65230100054 Hex. Cap Screw M10 x 100Hex. Cap Screw M10 x 100
-
66233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
67503192814 TensionerTensioner
-
68503193250 SpacerSpacer
-
69207063054 Hex. Cap Screw M6 x 30Hex. Cap Screw M6 x 30
-
70233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
71503193378 RH Runner Pivot. Model-600 ACERH Runner Pivot. Model-600 ACE
-
71503192435 RH Runner Pivot. Model-600HO E-TECRH Runner Pivot. Model-600HO E-TEC
-
72503193377 LH Runner Pivot. Model-600 ACELH Runner Pivot. Model-600 ACE
-
72503192434 LH Runner Pivot. Model-600HO E-TECLH Runner Pivot. Model-600HO E-TEC
-
73503192647 PivotPivot
-
74207682534 Hex. Flange Screw M8 x 25Hex. Flange Screw M8 x 25
-
75232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
76503191608 Cam AxelCam Axel
-
77503191190 RH Spring CamRH Spring Cam
-
78503191668 LH Spring CamLH Spring Cam
-
79503192426 LH BlockLH Block
-
80503192427 RH BlockRH Block
-
81250400005 Dowel Pin 4 x 8Dowel Pin 4 x 8
-
82503189488 Block GuideBlock Guide
-
83205523554 Socket Screw M12 x 35Socket Screw M12 x 35
-
84503189148 WasherWasher
-
85408200700 Grease FittingGrease Fitting
-
86503192437 ShaftShaft
-
87234051410 WasherWasher
-
88503192438 HandleHandle
-
89250000742 Torx Truss Screw M5 x 14Torx Truss Screw M5 x 14
-
90293370068 CirclipCirclip
-
91503192436 SpringSpring
-
92503191279 Lower ShaftLower Shaft
-
93503189324 BushingBushing
-
94503192496 WasherWasher
-
95250000605 Hex. Cap Screw M10 x 55Hex. Cap Screw M10 x 55
-
96503192282 SpringSpring
-
97503191259 SpacerSpacer
-
98503193638 Lower ShaftLower Shaft
-
99207204044 Hex. Cap Screw M10 x 40Hex. Cap Screw M10 x 40
-
100503192496 WasherWasher
-
101503194342 Rear SwingRear Swing
-
102408200700 Grease FittingGrease Fitting
-
103503189156 Pivot AxlePivot Axle
-
104503192440 Bolt M8 x 248Bolt M8 x 248
-
105503192494 WasherWasher
-
106233281466 Elastic Flange Nut M8Elastic Flange Nut M8
-
107503192771 Black Wheel CapBlack Wheel Cap
-
108503193884 White Wheel CapWhite Wheel Cap
-
109503193887 White Wheel CapWhite Wheel Cap
