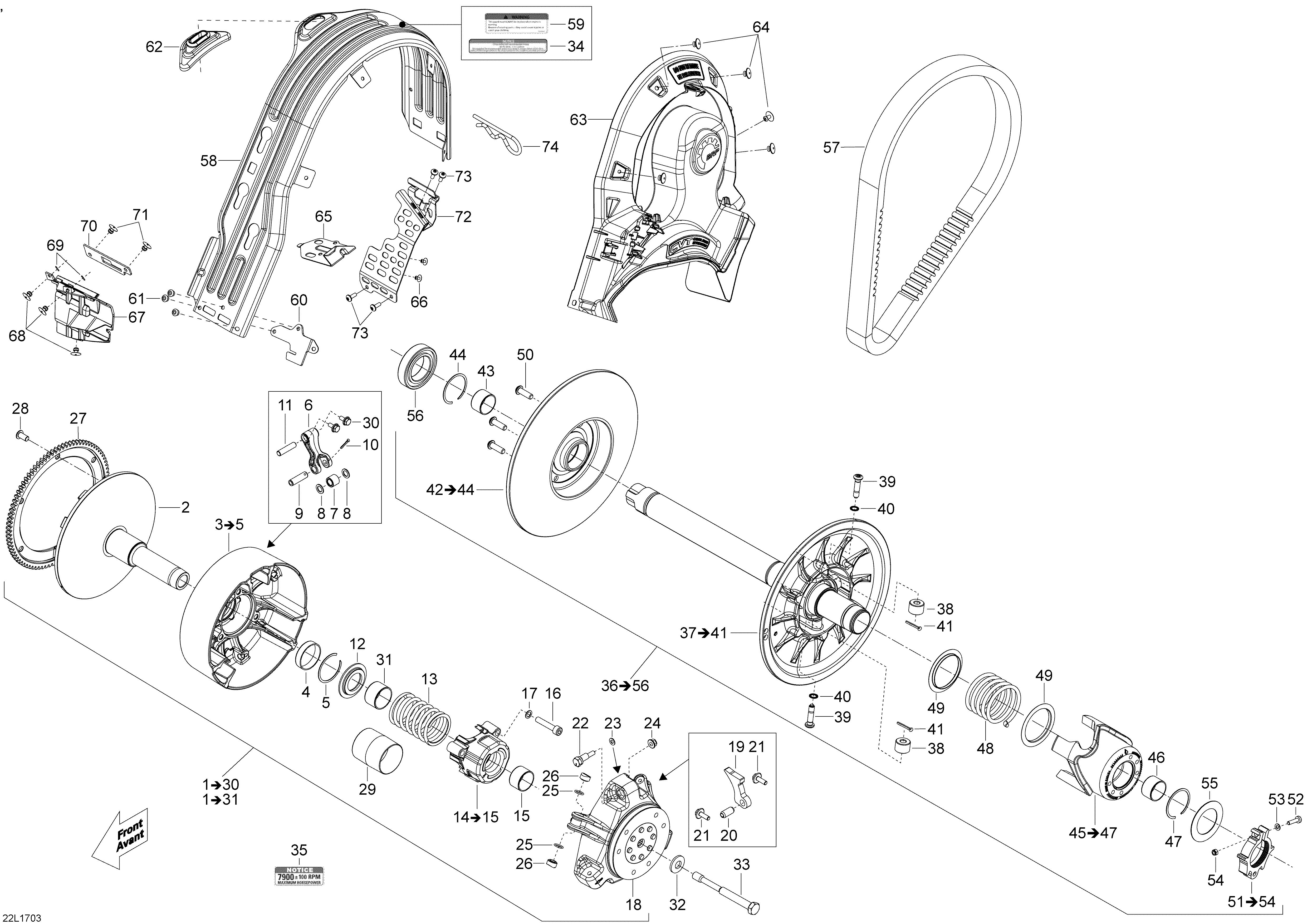

05- Pulley System для BRP Lynx XTRIM RE - 2017
-
№АртикулНазвание
-
2417222937 Fixed Flange Ass'y. Model-600 E-TECFixed Flange Ass'y. Model-600 E-TEC
-
2417223232 Fixed Flange Ass'y. Model-800 E-TECFixed Flange Ass'y. Model-800 E-TEC
-
3417222181 Sliding Flange Ass'y. Includes 3 To 5, Model-600 E-TECSliding Flange Ass'y. Includes 3 To 5, Model-600 E-TEC
-
3417223444 Sliding Flange Ass'y. Includes 3 To 5, Model-800 E-TECSliding Flange Ass'y. Includes 3 To 5, Model-800 E-TEC
-
4417222758 Bushing. Model-600 E-TECBushing. Model-600 E-TEC
-
4417223086 Bushing. Model-800 E-TECBushing. Model-800 E-TEC
-
5293370037 Circlip. Model-600 E-TECCirclip. Model-600 E-TEC
-
5293370071 Double Circlip. Model-800 E-TECDouble Circlip. Model-800 E-TEC
-
6417222671 Lever Ass?yLever Ass?y
-
7417222947 Roller Ass?yRoller Ass?y
-
8417004302 Stopper WasherStopper Washer
-
9417004308 Pin. Model-600 E-TECPin. Model-600 E-TEC
-
9417222594 Pin. Model-800 E-TECPin. Model-800 E-TEC
-
10250400060 Cotter PinCotter Pin
-
11417223164 Lever AxleLever Axle
-
12417222312 Spring SeatSpring Seat
-
13414817700 Spring (Blue / Green, 579-1157N / 130-260lbs)Spring (Blue / Green, 579-1157N / 130-260lbs)
-
14417007500 Spring Cover Ass'y. Includes 14 To 15, Model-600 E-TECSpring Cover Ass'y. Includes 14 To 15, Model-600 E-TEC
-
14417222759 Spring Cover Ass'y. Includes 14 To 15, Model-800 E-TECSpring Cover Ass'y. Includes 14 To 15, Model-800 E-TEC
-
15417009204 BushingBushing
-
16205084044 Socket Head Screw M8 x 40Socket Head Screw M8 x 40
-
17250200009 Lock Washer M8Lock Washer M8
-
18417223669 Governor Cup. Model-600 E-TECGovernor Cup. Model-600 E-TEC
-
18417223666 Governor Cup. Model-800 E-TECGovernor Cup. Model-800 E-TEC
-
19417222515 Ramp (412). Model-600 E-TECRamp (412). Model-600 E-TEC
-
19417222508 Ramp (413). Model-800 E-TECRamp (413). Model-800 E-TEC
-
20250400050 Spring Pin M10 x 22Spring Pin M10 x 22
-
21250000418 Hex. Flange Screw M6 x 18, Scotch GripHex. Flange Screw M6 x 18, Scotch Grip
-
22417223501 Calibration ScrewCalibration Screw
-
23417005600 WasherWasher
-
24233261414 Hex. Flange Elastic Nut M6Hex. Flange Elastic Nut M6
-
25732401030 O RingO Ring
-
26417222992 Slider Shoe. Model-600 E-TECSlider Shoe. Model-600 E-TEC
-
26417223271 Slider Shoe. Model-800 E-TECSlider Shoe. Model-800 E-TEC
-
27417223738 Ring Gear. Model-600 E-TECRing Gear. Model-600 E-TEC
-
27417223739 Ring Gear. Model-800 E-TECRing Gear. Model-800 E-TEC
-
28250000533 Hex. Flange Screw M8 x 16, Scotch GripHex. Flange Screw M8 x 16, Scotch Grip
-
29417009205 GuardGuard
-
30250000412 Hex. Flange Screw M6 x 12, Scotch Grip. Model-600 E-TECHex. Flange Screw M6 x 12, Scotch Grip. Model-600 E-TEC
-
30250000416 Hex. Flange Screw M6 x 16, Scotch Grip. Model-800 E-TECHex. Flange Screw M6 x 16, Scotch Grip. Model-800 E-TEC
-
31417223471 Bushing. Model-800 E-TECBushing. Model-800 E-TEC
-
32250200144 Spring WasherSpring Washer
-
33417120000 Drive Pulley Bolt. Model-600 E-TECDrive Pulley Bolt. Model-600 E-TEC
-
33417300409 Drive Pulley Bolt. Model-800 E-TECDrive Pulley Bolt. Model-800 E-TEC
-
34516005503 Drive Pulley Bolt DecalDrive Pulley Bolt Decal
-
35516005507 RPM Decal. Model-800 E-TECRPM Decal. Model-800 E-TEC
-
37417127387 Fixed Flange Ass'y. Includes 37 To 41, Model-44mmFixed Flange Ass'y. Includes 37 To 41, Model-44mm
-
37417127389 Fixed Flange Ass'y. Includes 37 To 41, Model-59mm , 800RE E-TECFixed Flange Ass'y. Includes 37 To 41, Model-59mm , 800RE E-TEC
-
38417127016 RollerRoller
-
39417127294 StudStud
-
40250200009 Lock Washer M8Lock Washer M8
-
41250400063 Spring Pin M3 x 30Spring Pin M3 x 30
-
42417127317 Sliding Flange Ass'y. Includes 42 To 44Sliding Flange Ass'y. Includes 42 To 44
-
43417127318 BushingBushing
-
44293370049 CirclipCirclip
-
45417127319 Cam Ass'y (47/44?). Includes 45 To 47, 600HO E-TECCam Ass'y (47/44?). Includes 45 To 47, 600HO E-TEC
-
45417127325 Cam Ass'y (44/42?). Includes 45 To 47, 800RE E-TEC, Model-44mmCam Ass'y (44/42?). Includes 45 To 47, 800RE E-TEC, Model-44mm
-
45417127386 Cam Ass'y (40?). Includes 45 To 47, 800RE E-TEC, Model-59mmCam Ass'y (40?). Includes 45 To 47, 800RE E-TEC, Model-59mm
-
46417127318 BushingBushing
-
47293370049 CirclipCirclip
-
48417127137 Spring (Green, 800-350N / 179-303lbs). Model-44mmSpring (Green, 800-350N / 179-303lbs). Model-44mm
-
48417127118 Spring (Blue, 700-985N / 157-221lbs). Model-59mm, 800RE E-TECSpring (Blue, 700-985N / 157-221lbs). Model-59mm, 800RE E-TEC
-
49417127116 Swivel AbutmentSwivel Abutment
-
50250000757 Button Head Torx Screw M8 x 25Button Head Torx Screw M8 x 25
-
51415129604 Pulley Adjuster Ass'y. Includes 51 To 54Pulley Adjuster Ass'y. Includes 51 To 54
-
52205052544 Socket HD Screw M5 x 25Socket HD Screw M5 x 25
-
53234051410 Flat Washer M5Flat Washer M5
-
54232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
55417127155 WasherWasher
-
56504152574 Ball BearingBall Bearing
-
57417300383 Belt. Model-600 E-TECBelt. Model-600 E-TEC
-
57417300391 Belt. Model-800 E-TECBelt. Model-800 E-TEC
-
58417300357 Belt GuardBelt Guard
-
59516006900 Belt Guard Security LabelBelt Guard Security Label
-
60417300423 ReinforcementReinforcement
-
61390909200 RivetRivet
-
62417300381 GuideGuide
-
63417300441 CVT Air DuctCVT Air Duct
-
64293150103 Pop Rivet 3/16''Pop Rivet 3/16''
-
65417300445 StopperStopper
-
66390909200 RivetRivet
-
67417300430 Front SupportFront Support
-
68293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
69517225900 Flat WasherFlat Washer
-
70417300421 ReinforcementReinforcement
-
71390909100 RivetRivet
-
72417300448 Belt Guard BracketBelt Guard Bracket
-
73250000742 Torx Truss Screw M5 x 14Torx Truss Screw M5 x 14
-
74114045200 Hair PinHair Pin
