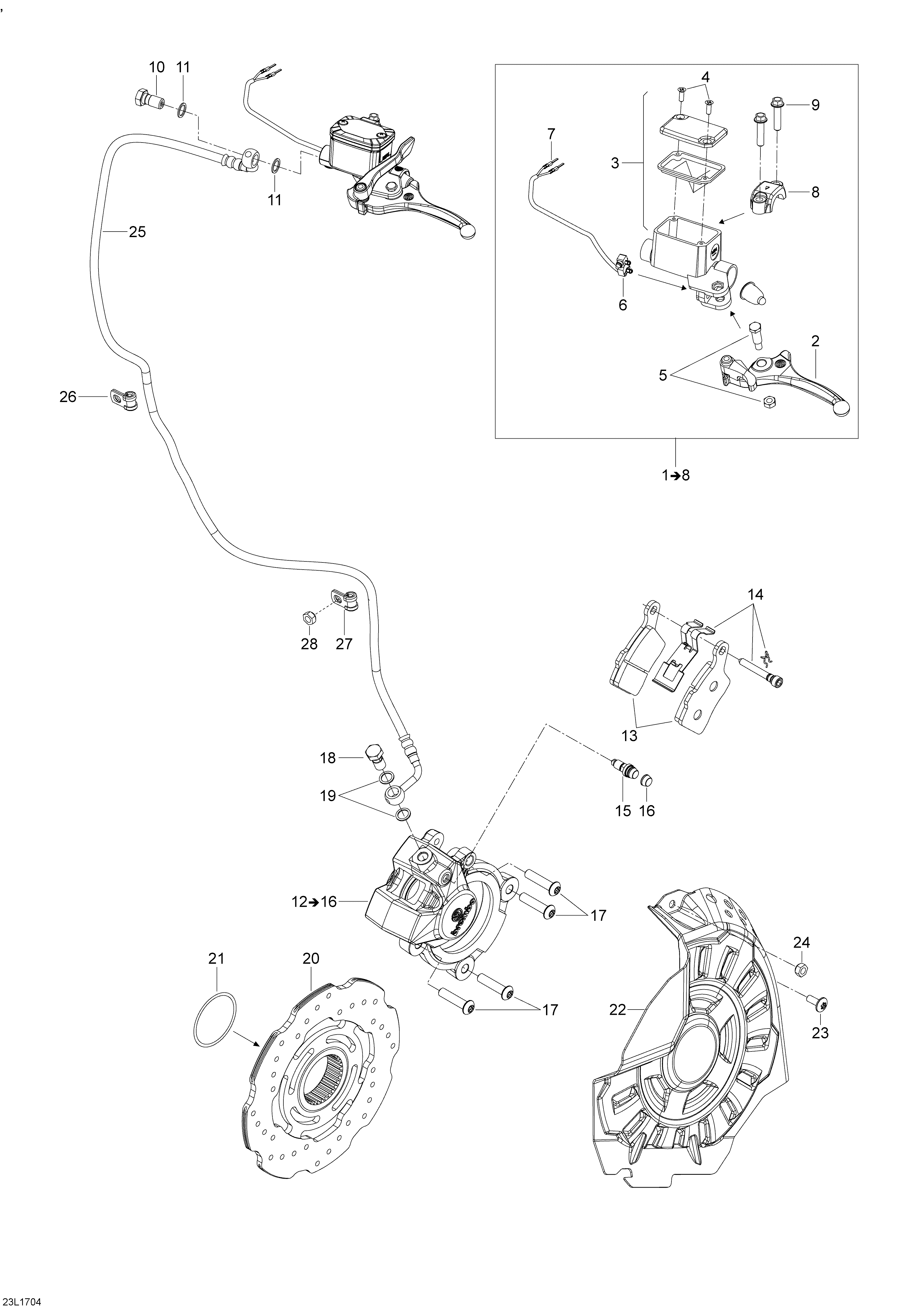

06- Hydraulic Brakes для BRP Lynx XTRIM RE - 2017
-
№АртикулНазвание
-
1507032598 Master Cylinder Ass’y. Includes 1 To 8Master Cylinder Ass’y. Includes 1 To 8
-
2507032476 LeverLever
-
3507032478 Reservoir Ass?y. Includes 3 To 4Reservoir Ass?y. Includes 3 To 4
-
4415129356 Screw M4 x 20Screw M4 x 20
-
5415030000 PinPin
-
6507032479 MicroswitchMicroswitch
-
7515175232 Male TerminalMale Terminal
-
8719000049 Clamp Kit. Includes 8 To 9Clamp Kit. Includes 8 To 9
-
9250000447 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
10507032551 Banjo BoltBanjo Bolt
-
11705600310 Copper WasherCopper Washer
-
12507032594 Brake Caliper Ass'y. Includes 12 To 16Brake Caliper Ass'y. Includes 12 To 16
-
13507032473 Brake Pads KitBrake Pads Kit
-
14507032474 Pin, Clip, Spring KitPin, Clip, Spring Kit
-
15507032475 BleederBleeder
-
17250000764 Torx Screw M8 x 35, Scotch GripTorx Screw M8 x 35, Scotch Grip
-
18507032551 Banjo BoltBanjo Bolt
-
19705600310 Copper WasherCopper Washer
-
20507032487 DiskDisk
-
21293300134 O RingO Ring
-
22507032546 Black Disk ProtectorBlack Disk Protector
-
23250000717 Torx Screw M6 x 16Torx Screw M6 x 16
-
24233261494 Elastic Flange Nut M6Elastic Flange Nut M6
-
25507032528 HoseHose
-
26715900250 ClampClamp
-
27503193393 ClampClamp
-
28232561434 Elastic Stop Nut M6Elastic Stop Nut M6
