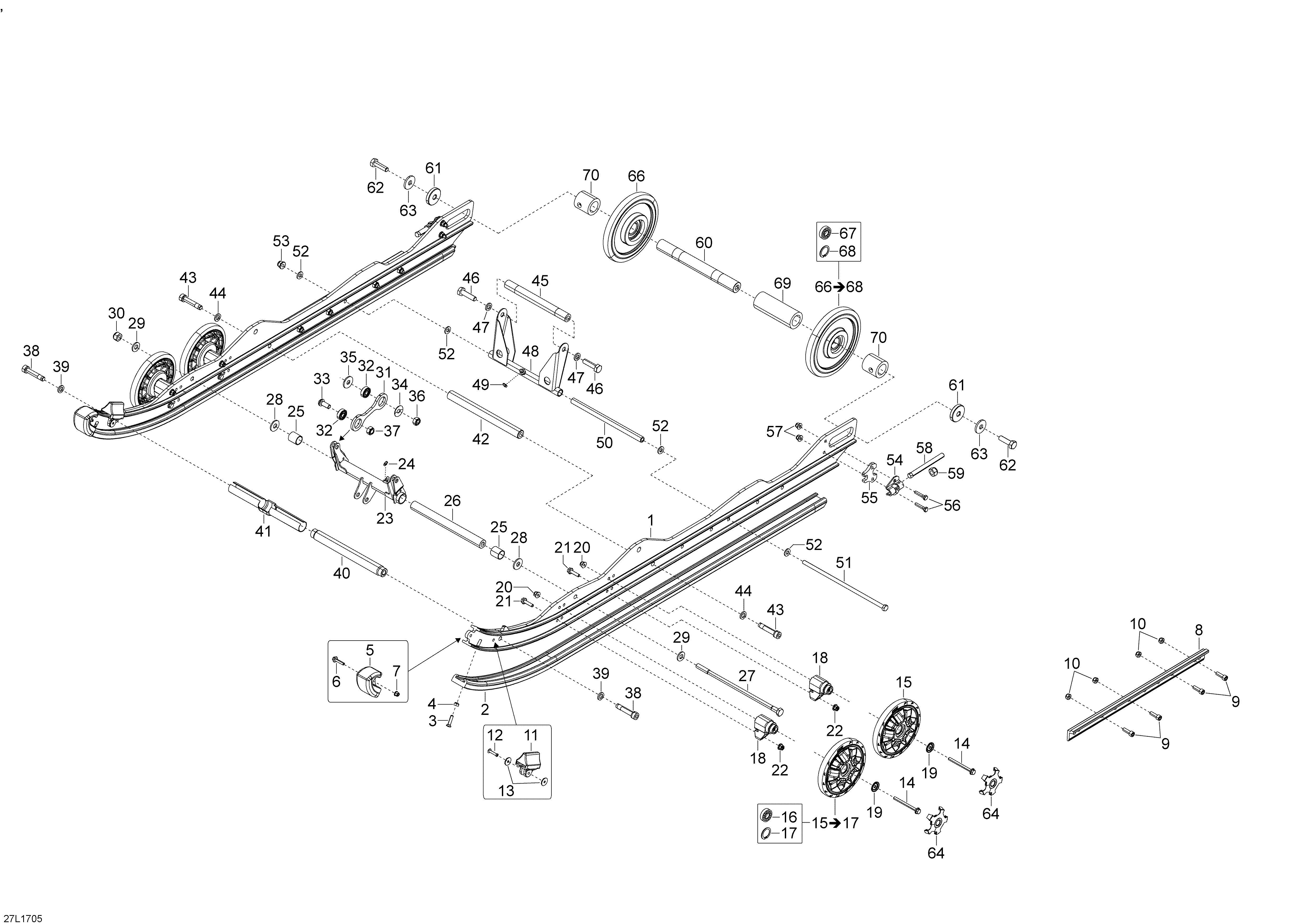

08- Rear Suspension для BRP Lynx XTRIM RE - 2017
-
№АртикулНазвание
-
1503194379 Black RunnerBlack Runner
-
2503191499 Slider ShoeSlider Shoe
-
3208562531 Screw M6 x 25Screw M6 x 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192299 ProtectorProtector
-
6207652544 Hex. Flange Screw M5 x 25Hex. Flange Screw M5 x 25
-
7233251434 Elastic Flange Nut M5Elastic Flange Nut M5
-
8503194734 Rail ReinforcementRail Reinforcement
-
9205082554 Socket HD Screw M8 x 25Socket HD Screw M8 x 25
-
10232581414 Elastic Stop Nut M8Elastic Stop Nut M8
-
11503192106 Rubber StopperRubber Stopper
-
12293150142 Pop Rivet 3/16''Pop Rivet 3/16''
-
13503191273 WasherWasher
-
14207667056 Hex. Flange Screw M6 x 70Hex. Flange Screw M6 x 70
-
15503193734 Wheel 141mm. Includes 15 To 17Wheel 141mm. Includes 15 To 17
-
16503190396 Ball BearingBall Bearing
-
18503193894 SupportSupport
-
19503191820 Cup WasherCup Washer
-
20233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
21207662556 Hex. Flange Screw M6 x 25Hex. Flange Screw M6 x 25
-
22233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
23503193580 Front SwingFront Swing
-
24408200700 Grease FittingGrease Fitting
-
25503193822 BushingBushing
-
26503193893 Lower ShaftLower Shaft
-
27503193227 Bolt M10 x 251Bolt M10 x 251
-
28503191926 WasherWasher
-
29250200138 WasherWasher
-
30233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
31605254159 Connecting RodConnecting Rod
-
32605631003 Ball BearingBall Bearing
-
33205402546 Socket HD Screw M10 x 25Socket HD Screw M10 x 25
-
3425004 Spring CupSpring Cup
-
35234002600 Washer M10Washer M10
-
36233401414 Lock Spring Nut M10Lock Spring Nut M10
-
37232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
38205505054 Socket HD Screw M10 x 50Socket HD Screw M10 x 50
-
39503192496 WasherWasher
-
40605353958 ShaftShaft
-
41605355096 Limiter Strap RetainerLimiter Strap Retainer
-
425343471 ShaftShaft
-
43205505054 Socket HD Screw M10 x 50Socket HD Screw M10 x 50
-
44503192496 WasherWasher
-
45503193638 Lower ShaftLower Shaft
-
46207204044 Hex. Cap Screw M10 x 40Hex. Cap Screw M10 x 40
-
47503192496 WasherWasher
-
48503194342 Rear SwingRear Swing
-
49408200700 Grease FittingGrease Fitting
-
50503189156 Pivot AxlePivot Axle
-
51503194069 Bolt M8 x 261Bolt M8 x 261
-
52503192494 WasherWasher
-
53233281466 Elastic Flange Nut M8Elastic Flange Nut M8
-
54503192814 TensionerTensioner
-
55503193250 SpacerSpacer
-
56207063054 Hex. Cap Screw M6 x 30Hex. Cap Screw M6 x 30
-
57233261466 Elastic Flange Nut M6Elastic Flange Nut M6
-
58230100054 Hex. Cap Screw M10 x 100Hex. Cap Screw M10 x 100
-
59233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
60503194091 Rear ShaftRear Shaft
-
61503192735 Rear Axle WasherRear Axle Washer
-
62250000592 Hex. Cap Screw M10 x 35Hex. Cap Screw M10 x 35
-
63503183300 WasherWasher
-
64503193735 Black Wheel CapBlack Wheel Cap
-
66503194127 Wheel 165mm. Includes 66 To 68Wheel 165mm. Includes 66 To 68
-
67293350055 Ball BearingBall Bearing
-
695448027 SpacerSpacer
-
705441512 SpacerSpacer
