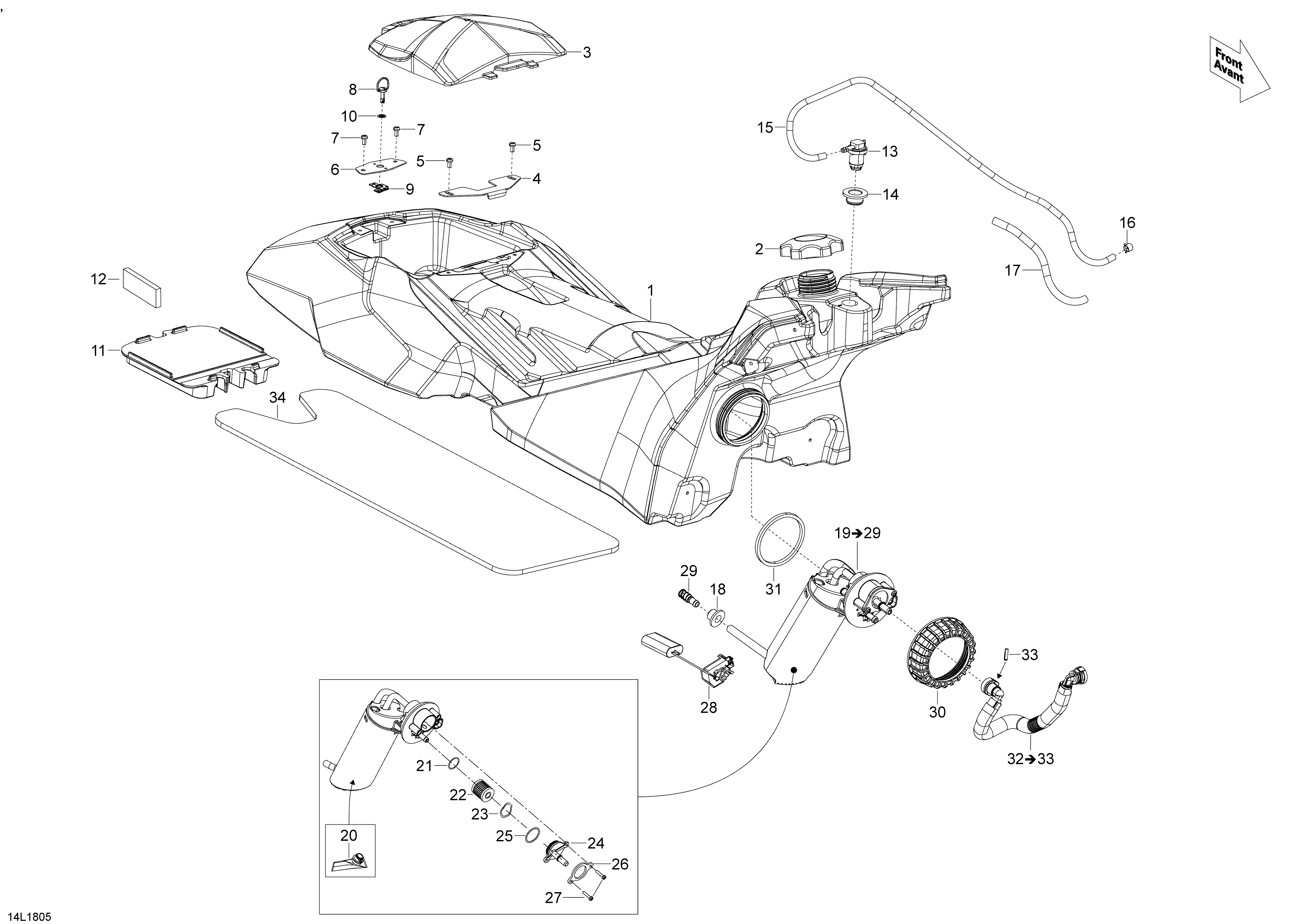

02- Fuel - Adventure LX - 600 ACE для BRP Lynx 49 Ranger 600 ACE - 2018
-
№АртикулНазвание
-
1513033836 Fuel TankFuel Tank
-
2513033723 Fuel Tank CapFuel Tank Cap
-
3513033832 Battery CoverBattery Cover
-
4513033894 Lock PlateLock Plate
-
5205951046 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
6513033731 Lock PlateLock Plate
-
7205951046 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
8513033735 Quarter-turn FastenerQuarter-turn Fastener
-
9513033736 Quarter-turn Fasteners PlateQuarter-turn Fasteners Plate
-
10732610072 Push NutPush Nut
-
11513033732 Battery SubbortBattery Subbort
-
12510006023 FoamFoam
-
13513033842 Check ValveCheck Valve
-
14513033596 GrommetGrommet
-
15415080200 Hose, PolyurethaneHose, Polyurethane
-
16414554800 Spring ClampSpring Clamp
-
17504153468 Protector Tube 9.53mm - 400mmProtector Tube 9.53mm - 400mm
-
18293300184 O RingO Ring
-
19513033838 Fuel Pump Ass'y. Includes 300 to 300,01Fuel Pump Ass'y. Includes 300 to 300,01
-
20415129451 Fuel FilterFuel Filter
-
21415129511 O-RingO-Ring
-
22415129510 Fuel FilterFuel Filter
-
23415129512 Wave WasherWave Washer
-
24415129685 CoverCover
-
25415129509 O-RingO-Ring
-
26415129569 Fuel Pump RingFuel Pump Ring
-
27415129513 ScrewScrew
-
28415130108 Fuel Level SensorFuel Level Sensor
-
29414872100 Fuel FilterFuel Filter
-
30513033040 Nut, Fuel Pump ModuleNut, Fuel Pump Module
-
31513033707 GasketGasket
-
32513033582 Hose Ass'y. Includes 500 to 500,001Hose Ass'y. Includes 500 to 500,001
-
33513033135 Locking ClipLocking Clip
-
34513033701 Insulat. FoamInsulat. Foam
