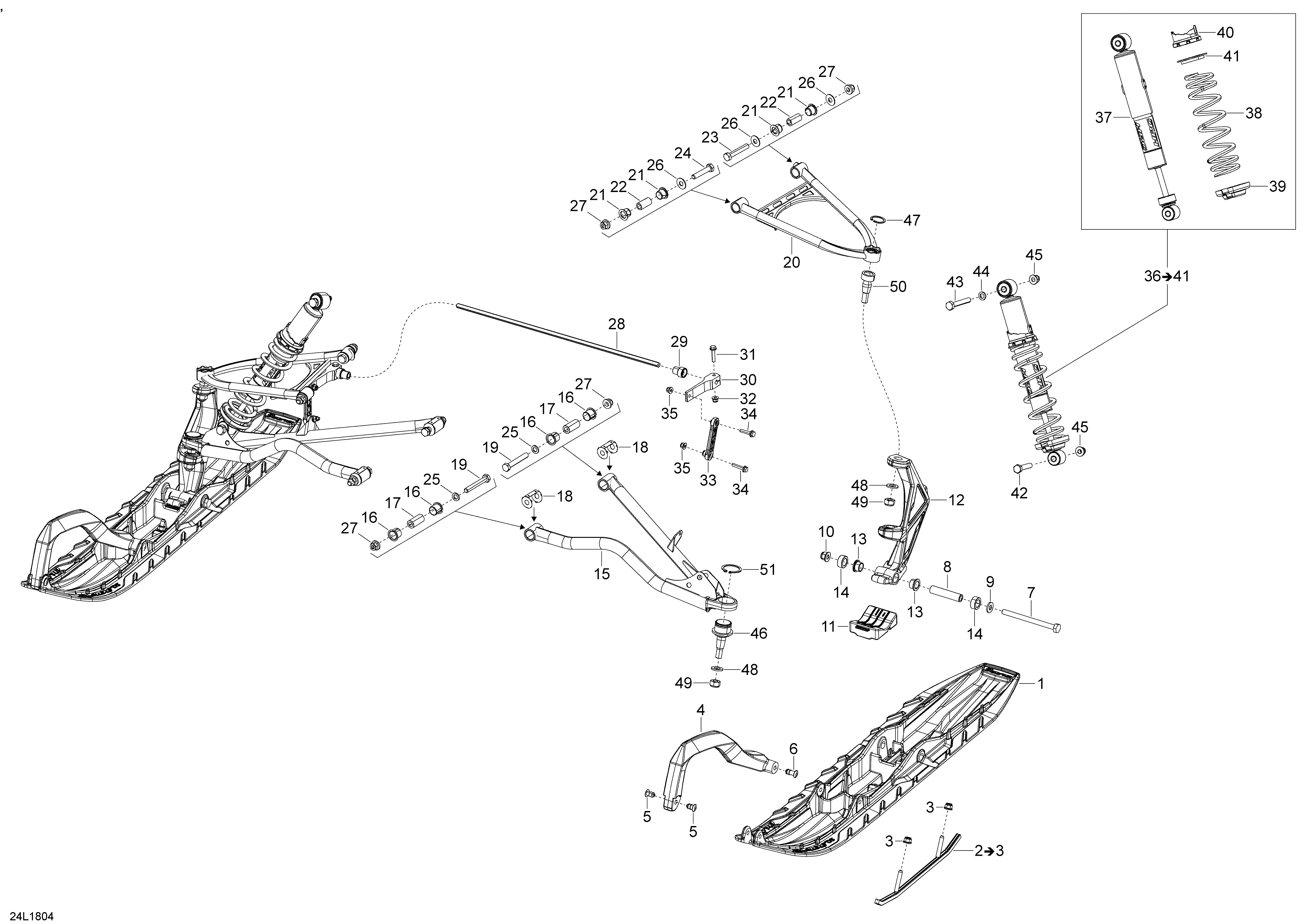

07- Front Suspension And Ski - 49Ranger - 600 ACE для BRP Lynx 49 Ranger 600 ACE - 2018
-
№АртикулНазвание
-
1505074262 Ski Blade Xc BlackSki Blade Xc Black
-
2860201044 Carbide Runner Kit. Includes 2 To 3Carbide Runner Kit. Includes 2 To 3
-
3233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
4505073651 Orange HandleOrange Handle
-
5505071812 RetainerRetainer
-
6505072133 RetainerRetainer
-
7230003044 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
8506133300 SpacerSpacer
-
9732900049 WasherWasher
-
10233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
11505072594 Ski StopperSki Stopper
-
12505073443 LH Ski LegLH Ski Leg
-
12505073444 RH Ski LegRH Ski Leg
-
13505072690 Leg BushingLeg Bushing
-
14505072807 SpacerSpacer
-
15505073925 Arm-lower Rh. Model SS38-40Arm-lower Rh. Model SS38-40
-
15505073955 Arm-lower Rh. Model SS35-37Arm-lower Rh. Model SS35-37
-
15505073924 Arm-lower Lh. Model SS38-40Arm-lower Lh. Model SS38-40
-
15505073954 Arm-lower Lh. Model SS35-37Arm-lower Lh. Model SS35-37
-
16505073330 CushionCushion
-
17505072209 BushingBushing
-
18505072634 Wear PlateWear Plate
-
19250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
20505073985 Arm-upper Lh W Sway Bar. Model SS38-40Arm-upper Lh W Sway Bar. Model SS38-40
-
20505073987 Upper Arm W Sway Bar Lh. Model SS35-37Upper Arm W Sway Bar Lh. Model SS35-37
-
20505073986 Arm-upper Rh W Sway Bar. Model SS38-40Arm-upper Rh W Sway Bar. Model SS38-40
-
20505073988 Upper Arm W Sway Bar Rh. Model SS35-37Upper Arm W Sway Bar Rh. Model SS35-37
-
21505073329 Swivel BushingSwivel Bushing
-
22505072143 BushingBushing
-
23250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
24250000289 Screw Hex. M10 X 50Screw Hex. M10 X 50
-
25503189564 WasherWasher
-
26505072392 WasherWasher
-
27250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
28505072444 Stabilisator. Model SS38-40Stabilisator. Model SS38-40
-
28505072602 Stabilisator. Model SS35-37Stabilisator. Model SS35-37
-
29505072445 Bushing. Model SS38-40Bushing. Model SS38-40
-
29505072064 Bushing. Model SS35-37Bushing. Model SS35-37
-
30505074294 Stabilisator Lever. Model SS38-40Stabilisator Lever. Model SS38-40
-
30505074295 Stabilisator Lever 8mm Qd. Model SS35-37Stabilisator Lever 8mm Qd. Model SS35-37
-
31207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
32233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
33505074123 Double Ball Joint LinkDouble Ball Joint Link
-
34207663046 Flanged Hex. Screw M6 X 30Flanged Hex. Screw M6 X 30
-
35233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
37505073342 Front Shock (EUR). Model SS38-40Front Shock (EUR). Model SS38-40
-
37505073344 Front Shock. Model SS35-37Front Shock. Model SS35-37
-
38505072882 Full Moon Spring 300mm-16N/MM. Model SS38-40Full Moon Spring 300mm-16N/MM. Model SS38-40
-
38503192286 Full Moon Spring 300mm-14 N/MM. Model SS35-37Full Moon Spring 300mm-14 N/MM. Model SS35-37
-
39706200881 Spring StopperSpring Stopper
-
40505073625 Adjustment CamAdjustment Cam
-
41503191872 Spring GuideSpring Guide
-
42207005544 Hex. Screw M10 X 55Hex. Screw M10 X 55
-
43207006544 Hex. Screw M10 X 65Hex. Screw M10 X 65
-
44503189564 WasherWasher
-
45233201414 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
46505073636 Ball JointBall Joint
-
47293370070 CirclipCirclip
-
48234021410 Flat Washer 12 mmFlat Washer 12 mm
-
49250100089 Hex. Elastic Hex. Nut M12Hex. Elastic Hex. Nut M12
-
50505072913 Upper Ball JointUpper Ball Joint
-
51293370035 CirclipCirclip
