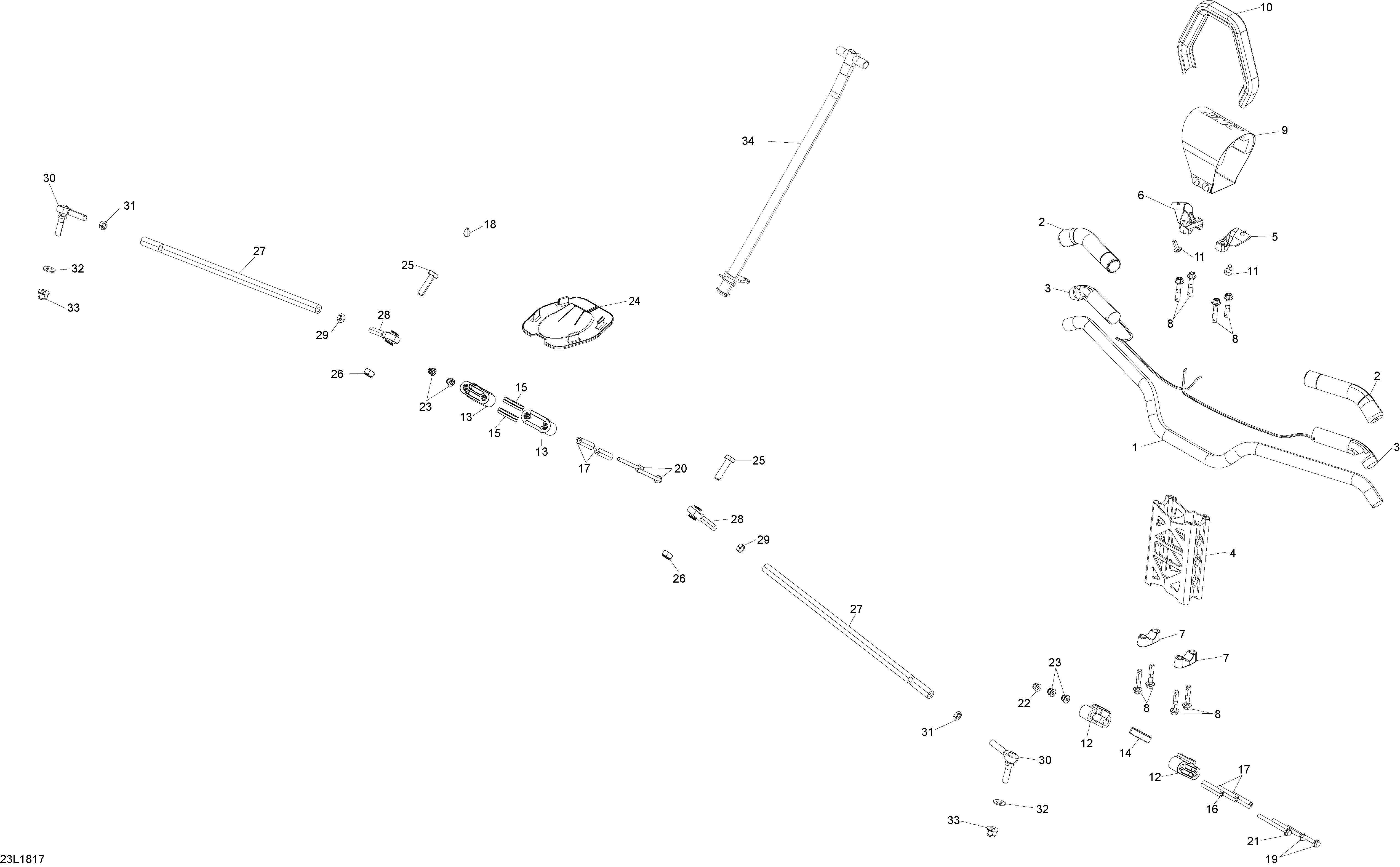

07- Steering 49 Ranger - 600 ACE для BRP Lynx 49 Ranger 600 ACE - 2018
-
№АртикулНазвание
-
1506152762 Handle BarHandle Bar
-
2506152483 GripGrip
-
3506152428 Heated Film, 25WHeated Film, 25W
-
4860200820 Riser Kit. STD PackageRiser Kit. STD Package
-
4506152616 Black Handlebar Extension (130mm). TK PackageBlack Handlebar Extension (130mm). TK Package
-
5506152942 LH SupportLH Support
-
6506152943 RH SupportRH Support
-
7506152750 Steering SupportSteering Support
-
8250000352 Hex. Flange Screw M8 X 40Hex. Flange Screw M8 X 40
-
9506152649 Steering PadSteering Pad
-
10506152460 Moulding StrapMoulding Strap
-
11250000779 Torx Screw M6 X 1.0 X 18, Scotch GripTorx Screw M6 X 1.0 X 18, Scotch Grip
-
12506152508 Upper Half-HousingUpper Half-Housing
-
13506152217 Lower Half-HousingLower Half-Housing
-
14506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
15506152518 Lower Vibration RingLower Vibration Ring
-
16506152297 Housing BushingHousing Bushing
-
17506152297 Housing BushingHousing Bushing
-
18293550033 Suspension Grease, 10 X 400 GSuspension Grease, 10 X 400 G
-
19207667086 Hex. Flanged Screw M6 x 1.0 x 70Hex. Flanged Screw M6 x 1.0 x 70
-
20207667086 Hex. Flanged Screw M6 x 1.0 x 70Hex. Flanged Screw M6 x 1.0 x 70
-
21207667086 Hex. Flanged Screw M6 x 1.0 x 70Hex. Flanged Screw M6 x 1.0 x 70
-
22233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
23233261416 Elastic Flanged Nut M6 X 1.0Elastic Flanged Nut M6 X 1.0
-
24506152163 PlatePlate
-
25207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
26232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
27506152498 Tie-Rod. TK PackageTie-Rod. TK Package
-
27506152496 Tie-Rod. STD PackageTie-Rod. STD Package
-
28506152081 LH Thread Ball Joint. TK PackageLH Thread Ball Joint. TK Package
-
28506152081 LH Thread Ball Joint. STD PackageLH Thread Ball Joint. STD Package
-
29250100016 LH Hex. Jam Nut M10. TK PackageLH Hex. Jam Nut M10. TK Package
-
29250100016 LH Hex. Jam Nut M10. STD PackageLH Hex. Jam Nut M10. STD Package
-
30506152684 RH Thread Ball Joint. TK PackageRH Thread Ball Joint. TK Package
-
30506152684 RH Thread Ball Joint. STD PackageRH Thread Ball Joint. STD Package
-
31732610010 RH Hex. Jam Nut M10. TK PackageRH Hex. Jam Nut M10. TK Package
-
31732610010 RH Hex. Jam Nut M10. STD PackageRH Hex. Jam Nut M10. STD Package
-
32506152582 WasherWasher
-
33233201464 Hex. Elast. Flanged Nut M10 x 1.5Hex. Elast. Flanged Nut M10 x 1.5
-
34506152964 Steering ColumnSteering Column
