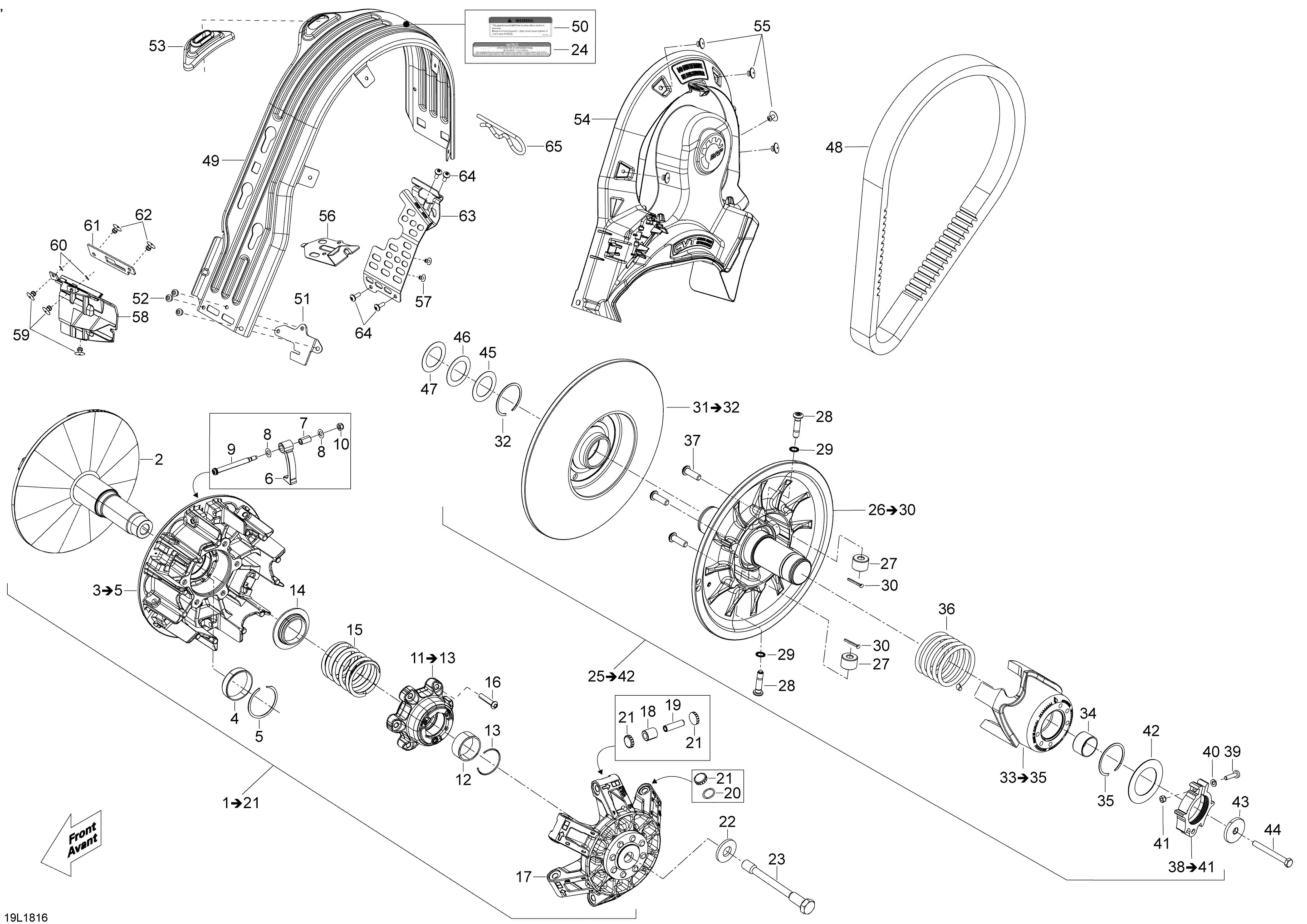

05- Pulley Adventure - 600 ACE для BRP Lynx Adventure LX 600 ACE - 2018
-
№АртикулНазвание
-
2417224091 Fixed Flange Ass'yFixed Flange Ass'y
-
3417224101 Sliding Flange Ass'y. Includes 3 to 5Sliding Flange Ass'y. Includes 3 to 5
-
4417222758 BushingBushing
-
5293370037 CirclipCirclip
-
6417223508 Ramp 716 AssRamp 716 Ass
-
8417223255 Thrust WasherThrust Washer
-
9417223694 Ramp AxleRamp Axle
-
10232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
11417223907 Spring Cover Ass'ySpring Cover Ass'y
-
12293370065 CirclipCirclip
-
14417223752 Seat SpringSeat Spring
-
15417223747 Clutch SpringClutch Spring
-
16250000580 Torx Screw M6 X 30Torx Screw M6 X 30
-
17417223865 Governor Cup Ass'yGovernor Cup Ass'y
-
18417223767 RollerRoller
-
19417223257 Roller AxleRoller Axle
-
20293300185 O-RingO-Ring
-
21417223919 Slider ShoeSlider Shoe
-
22250200144 Conical Spring Washer M14Conical Spring Washer M14
-
23417300432 Pulley Drive BoltPulley Drive Bolt
-
24516005503 Decal, EnglishDecal, English
-
26417127351 Fixe Flange Ass'y. Includes 26 to 30Fixe Flange Ass'y. Includes 26 to 30
-
27417127016 RollerRoller
-
28417127294 Pivot StudPivot Stud
-
29250200009 Lock Washer 8 mmLock Washer 8 mm
-
30250400063 Spring Pin M3 X 30Spring Pin M3 X 30
-
31417127366 Slider Flange Ass'y. Includes 31 to 32Slider Flange Ass'y. Includes 31 to 32
-
31.1417127318 BushingBushing
-
32293370049 CirclipCirclip
-
33417127391 Cam Ass'y. Includes 33 to 35Cam Ass'y. Includes 33 to 35
-
34417127318 BushingBushing
-
35293370049 CirclipCirclip
-
36417127344 Release SpringRelease Spring
-
38415129604 Calibration Ass'yCalibration Ass'y
-
39205052544 Socket Screw M5 X 25Socket Screw M5 X 25
-
40234051410 Flat Washer M5Flat Washer M5
-
41232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
42417127155 WasherWasher
-
43517302322 Strength WasherStrength Washer
-
44207287544 Hex. Cap Screw M8 X 75Hex. Cap Screw M8 X 75
-
45417300252 SpacerSpacer
-
46417300265 SpacerSpacer
-
47504112000 ShimShim
-
48417300127 Drive BeltDrive Belt
-
49417300382 Belt GuardBelt Guard
-
50516006900 Security Label, Belt GuardSecurity Label, Belt Guard
-
51417300423 Front BracketFront Bracket
-
52390909200 Avex RivetAvex Rivet
-
53417300381 GuideGuide
-
54417300441 CVT Air DuctCVT Air Duct
-
55293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
56417300445 StopperStopper
-
57390909200 Avex RivetAvex Rivet
-
58417300430 Front SupportFront Support
-
59293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
60517225900 Flat WasherFlat Washer
-
61417300421 Reinforcement PlateReinforcement Plate
-
62390909200 Avex RivetAvex Rivet
-
63417300448 Belt Guard BracketBelt Guard Bracket
-
64250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
65114045200 Hair PinHair Pin
