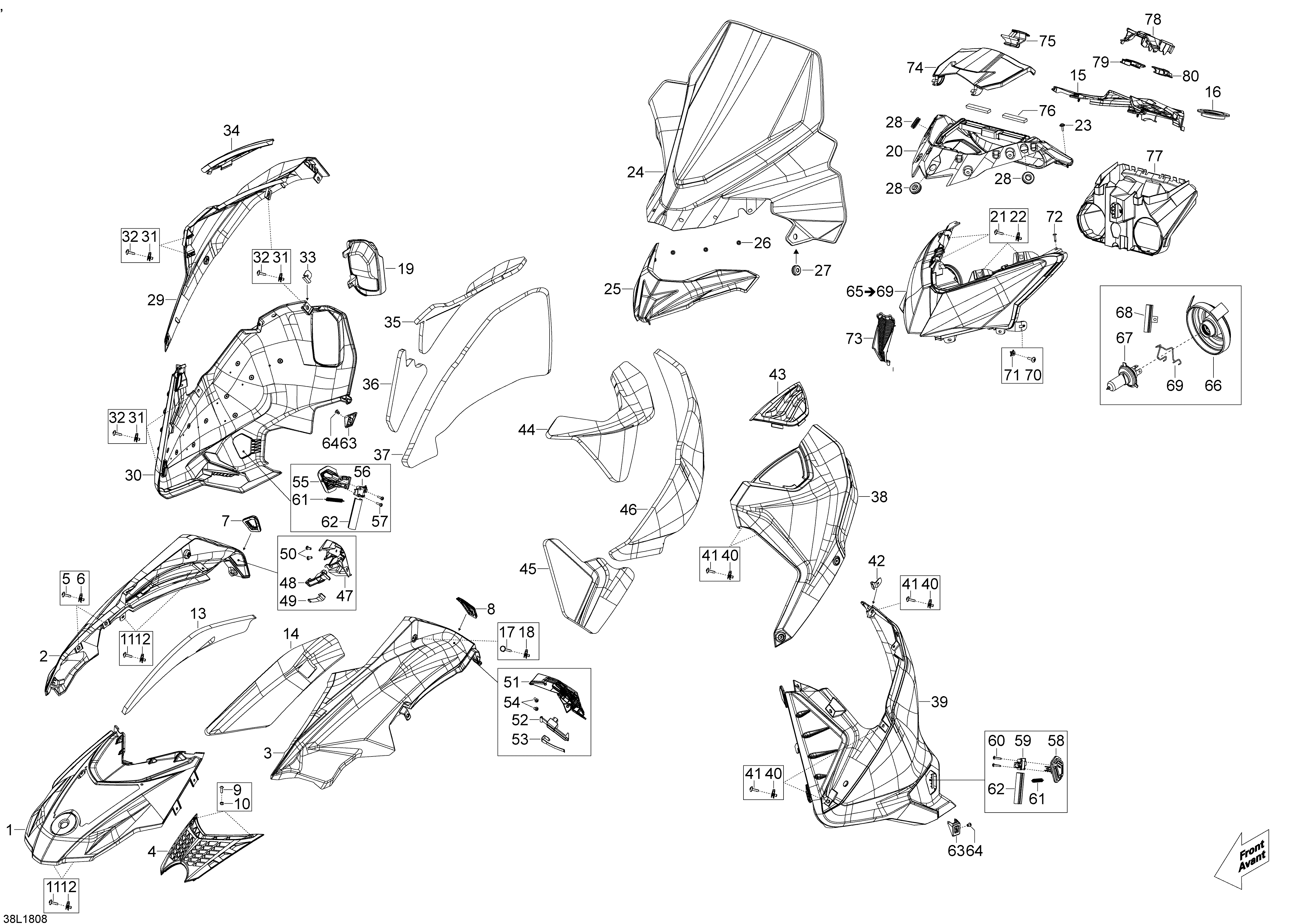

09- Hood ADVENTURE - 600 ACE для BRP Lynx Adventure LX 600 ACE - 2018
-
№АртикулНазвание
-
1517305541 HoodHood
-
2517305247 RH HoodRH Hood
-
3517305248 LH HoodLH Hood
-
4517305362 Hood GrillHood Grill
-
5250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
6250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
7517305344 RH Rubber ButtonRH Rubber Button
-
8517305345 LH Rubber ButtonLH Rubber Button
-
9235551454 Screw-Torx Button Head M5 X 14Screw-Torx Button Head M5 X 14
-
11250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
12250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
13517305481 FoamFoam
-
14517305482 FoamFoam
-
15517305205 Console RearConsole Rear
-
16517304518 Console NutConsole Nut
-
17517305531 KnobKnob
-
18250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
19517305061 Deep Black RH ConsoleDeep Black RH Console
-
20517305511 Deep Black Indicator SupportDeep Black Indicator Support
-
21250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
22250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
23250000587 Torx Screw M5 X 26Torx Screw M5 X 26
-
24860201115 635 Windshield. Includes 24 to 27,5635 Windshield. Includes 24 to 27,5
-
24860201115 635 Windshield635 Windshield
-
25517305307 SupportSupport
-
26732610072 Push NutPush Nut
-
27517302841 GrommetGrommet
-
27.1517303439 KnobKnob
-
27.2250200024 Rubber Washer 5 mmRubber Washer 5 mm
-
27.3250200025 Washer M5Washer M5
-
27.4250000720 Torx Screw K50 X 16Torx Screw K50 X 16
-
27.5517305531 KnobKnob
-
28517306421 GrommetGrommet
-
29517305250 Side Panel Hub Cap RhSide Panel Hub Cap Rh
-
30517305249 Panel RHPanel RH
-
31250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
32250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
33517305515 Guide PlateGuide Plate
-
34517305251 GrillGrill
-
35517306358 FoamFoam
-
36517306359 FoamFoam
-
37517306360 FoamFoam
-
38517305252 LH PanelLH Panel
-
39517305253 LH PanelLH Panel
-
40250000958 Panel Nut M5 X 0.8Panel Nut M5 X 0.8
-
41250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
42517305515 Guide PlateGuide Plate
-
43517305254 GrillGrill
-
44517305488 FoamFoam
-
45517305489 FoamFoam
-
46517305490 FoamFoam
-
47517305315 Lock Body Rh.Lock Body Rh.
-
48517306019 Lock ArmLock Arm
-
49517305317 Lock SpringLock Spring
-
50205951046 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
51517305319 Lock Body Lh.Lock Body Lh.
-
52517306019 Lock ArmLock Arm
-
53517305317 Lock SpringLock Spring
-
54205951046 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
55517305760 RH Side Panel Bottom LockRH Side Panel Bottom Lock
-
56517305761 RH Bottom Lock Fixing PartRH Bottom Lock Fixing Part
-
57250000451 Screw-pt.torx Flange K40 X 20Screw-pt.torx Flange K40 X 20
-
58517305758 LH Side Panel Bottom LockLH Side Panel Bottom Lock
-
59517305759 Lh Bottom Lock Fixing PartLh Bottom Lock Fixing Part
-
60250000451 Screw-pt.torx Flange K40 X 20Screw-pt.torx Flange K40 X 20
-
61517305535 Side Panel Bottom Lock SpringSide Panel Bottom Lock Spring
-
62517305452 Bottom Lock SleeveBottom Lock Sleeve
-
63517305323 Side Panel SupportSide Panel Support
-
64390909100 Avex RivetAvex Rivet
-
65517306180 Headlamp. Includes 65 to 69Headlamp. Includes 65 to 69
-
66219400070 CapCap
-
67515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
68219800282 Holder BracketHolder Bracket
-
69219800281 SpringSpring
-
70250000528 Torx Screw M5 X 20Torx Screw M5 X 20
-
71250100035 Jack Nut M5Jack Nut M5
-
72250000725 Screw M4 X 16Screw M4 X 16
-
73517305350 CapCap
-
74517304912 Upper Storage Access CoverUpper Storage Access Cover
-
75517304917 Cover LatchCover Latch
-
76517305157 Seal JointSeal Joint
-
77517305095 TrunkTrunk
-
78517304970 Console SupportConsole Support
-
79517305180 Deep Black Support Console CapDeep Black Support Console Cap
-
80517305148 Support Console CapSupport Console Cap
