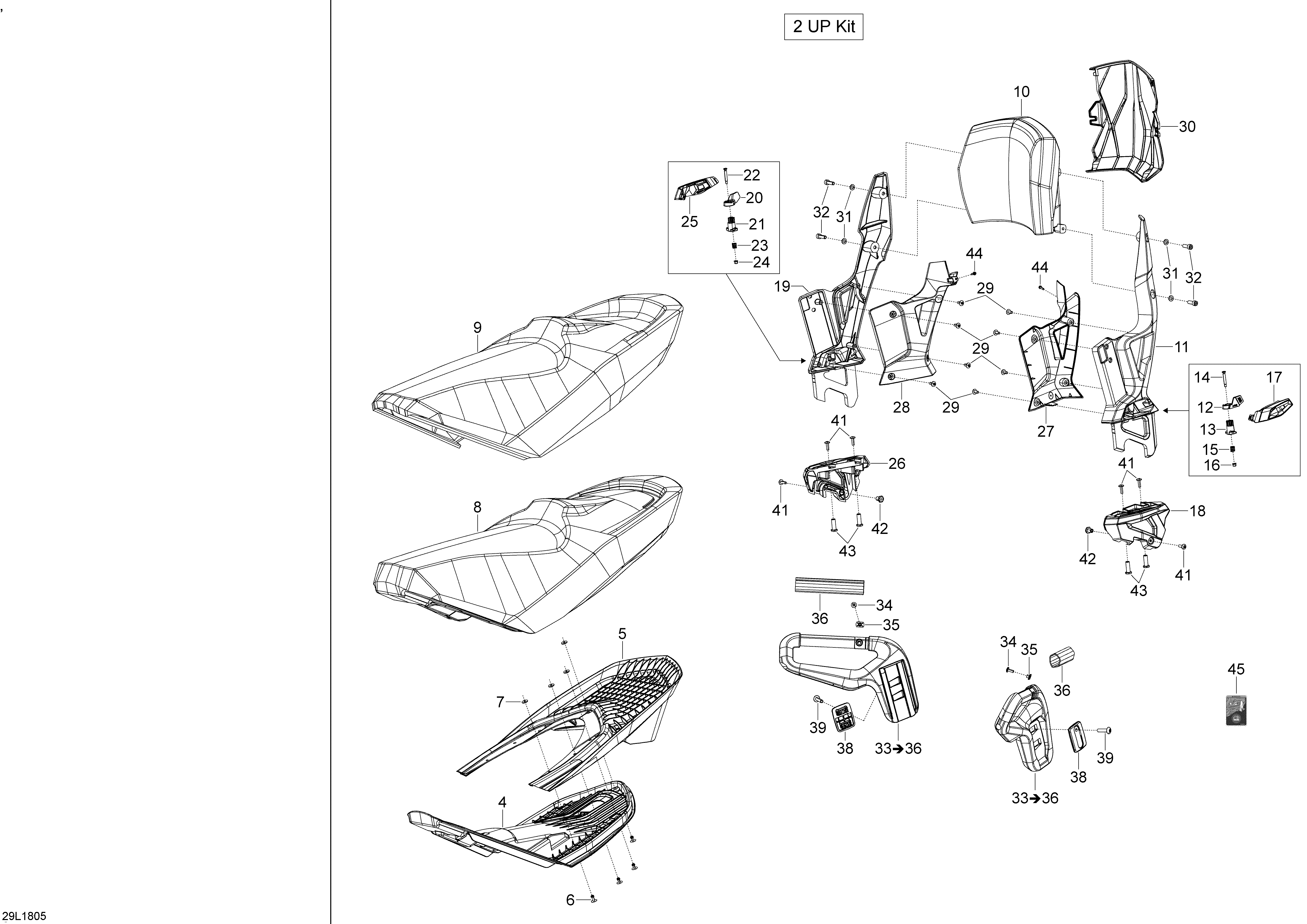

09- Seat Adventure для BRP Lynx Adventure LX 600 ACE - 2018
-
№АртикулНазвание
-
4510005646 Seat BaseSeat Base
-
5510005868 Rear Seat BaseRear Seat Base
-
6293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
7250200025 Washer M5Washer M5
-
8510006221 Seat FoamSeat Foam
-
9510005765 Seat CoverSeat Cover
-
10510006302 Backrest Ass'y. Includes 10 to 17Backrest Ass'y. Includes 10 to 17
-
11510006424 LH ArmLH Arm
-
12708200373 LH LeverLH Lever
-
13708200266 LH LatchLH Latch
-
14708200152 StemStem
-
15708200263 SpringSpring
-
16233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
17510005617 LH CapLH Cap
-
18511000903 LH Anchor. Includes 18 to 25LH Anchor. Includes 18 to 25
-
19510006426 RH ArmRH Arm
-
20708200374 RH LeverRH Lever
-
21708200267 RH LatchRH Latch
-
22708200152 StemStem
-
23708200263 SpringSpring
-
24233251494 Elastic Flanged Nut M5Elastic Flanged Nut M5
-
25510005618 RH CapRH Cap
-
26511000902 RH AnchorRH Anchor
-
27510005609 CoverCover
-
28510005610 CoverCover
-
29250000789 Torx Truss M6X14Torx Truss M6X14
-
30510005556 Backrest RearBackrest Rear
-
31234080600 Flat Washer M8, StainlessFlat Washer M8, Stainless
-
32205582560 Socket Head Screw M8 X 25, Scotch GripSocket Head Screw M8 X 25, Scotch Grip
-
33510005850 LH Handle Ass'y. Includes 33 To 36LH Handle Ass'y. Includes 33 To 36
-
33510005851 RH Handle Ass'y. Includes 33 To 36RH Handle Ass'y. Includes 33 To 36
-
34250000721 Torx Truss Screw M6 x 16Torx Truss Screw M6 x 16
-
35293100003 Weld NutWeld Nut
-
36510004449 Handle GripHandle Grip
-
38510004405 MouldingMoulding
-
39250000745 Hex Torx Truss M8 X30Hex Torx Truss M8 X30
-
41250000446 Torx Screw M6 X 20, Scotch GripTorx Screw M6 X 20, Scotch Grip
-
42511000822 InsertInsert
-
43520001473 InsertInsert
-
44250000068 Hex. Tapping Screw #8 X 5/8''Hex. Tapping Screw #8 X 5/8''
-
45516006794 DecalDecal
