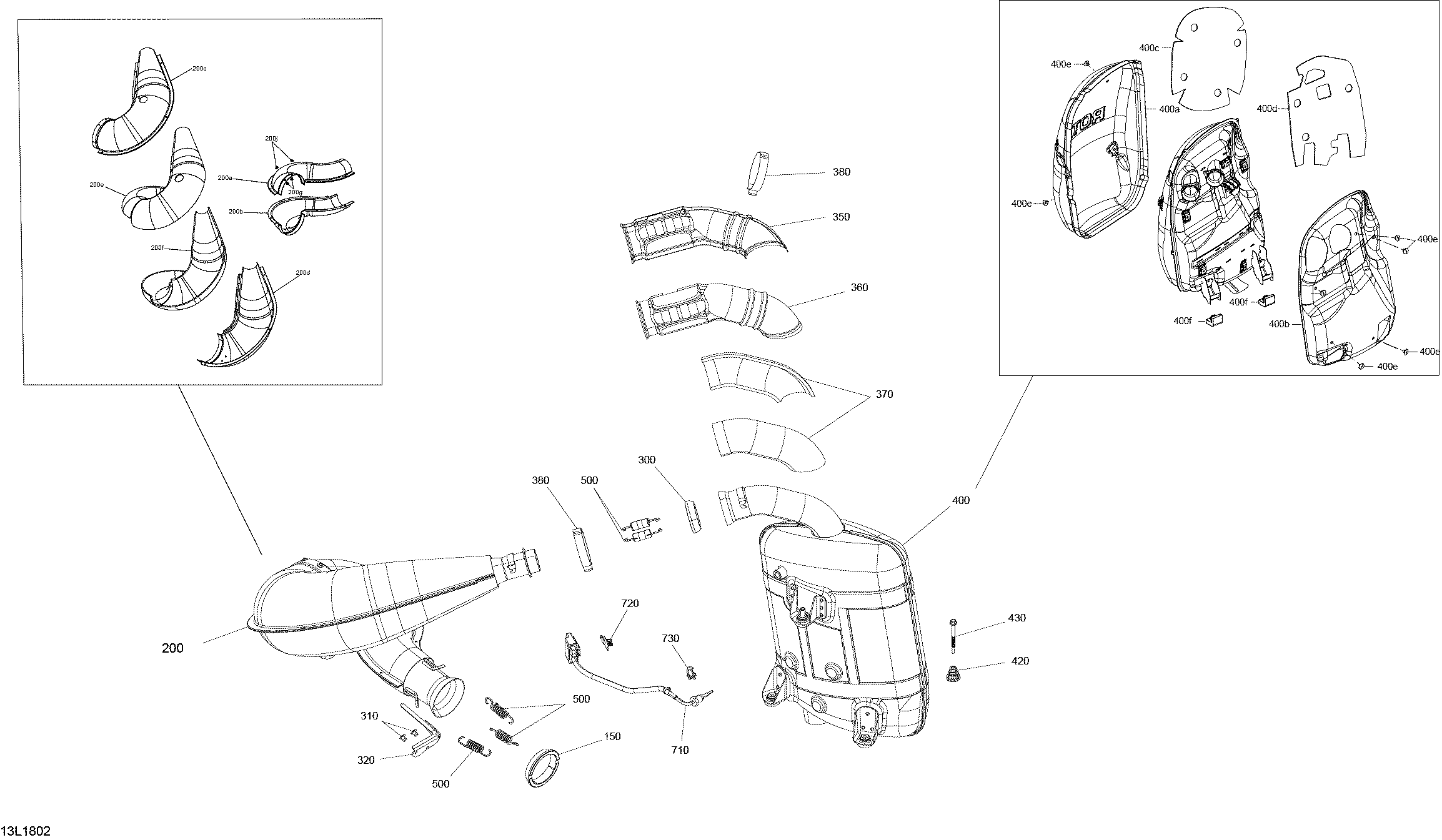

01- Exhaust Rave - 850 E-TEC для BRP Lynx RAVE 850 E-TEC - 2018
-
№АртикулНазвание
-
150514053487 Exhaust GasketExhaust Gasket
-
200514055568 Tune Pipe Ass'y. Includes 200 to 200jTune Pipe Ass'y. Includes 200 to 200j
-
200a514055222 Upper Front ShellUpper Front Shell
-
200b514055223 Lower Front ShellLower Front Shell
-
200c514055273 Upper Rear ShellUpper Rear Shell
-
200d514055573 Low Rear ShellLow Rear Shell
-
200e514055220 WoolWool
-
200f514055385 WoolWool
-
200g390909200 Avex RivetAvex Rivet
-
200h514055632 Rubber. Not ShownRubber. Not Shown
-
200j514055537 Washer 3/16Washer 3/16
-
300514055294 Exhaust GasketExhaust Gasket
-
310293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
320514055214 SupportSupport
-
350514055283 Front ShieldFront Shield
-
360514055284 Rear ShieldRear Shield
-
370514055285 WoolWool
-
380514055392 ClipClip
-
400514055567 Muffler Ass'y. Includes 400 to 400fMuffler Ass'y. Includes 400 to 400f
-
400a514055596 RH DeflectorRH Deflector
-
400b514055597 LH DeflectorLH Deflector
-
400c514055201 WoolWool
-
400d514055202 WoolWool
-
400e390909100 Avex RivetAvex Rivet
-
400f514055203 StopperStopper
-
420514055282 SpringSpring
-
430250000926 Hex. Flanged Screw M6Hex. Flanged Screw M6
-
500514055198 SpringSpring
-
710515178170 ModuleModule
-
720514055393 SupportSupport
-
730514055100 Tab LockTab Lock
