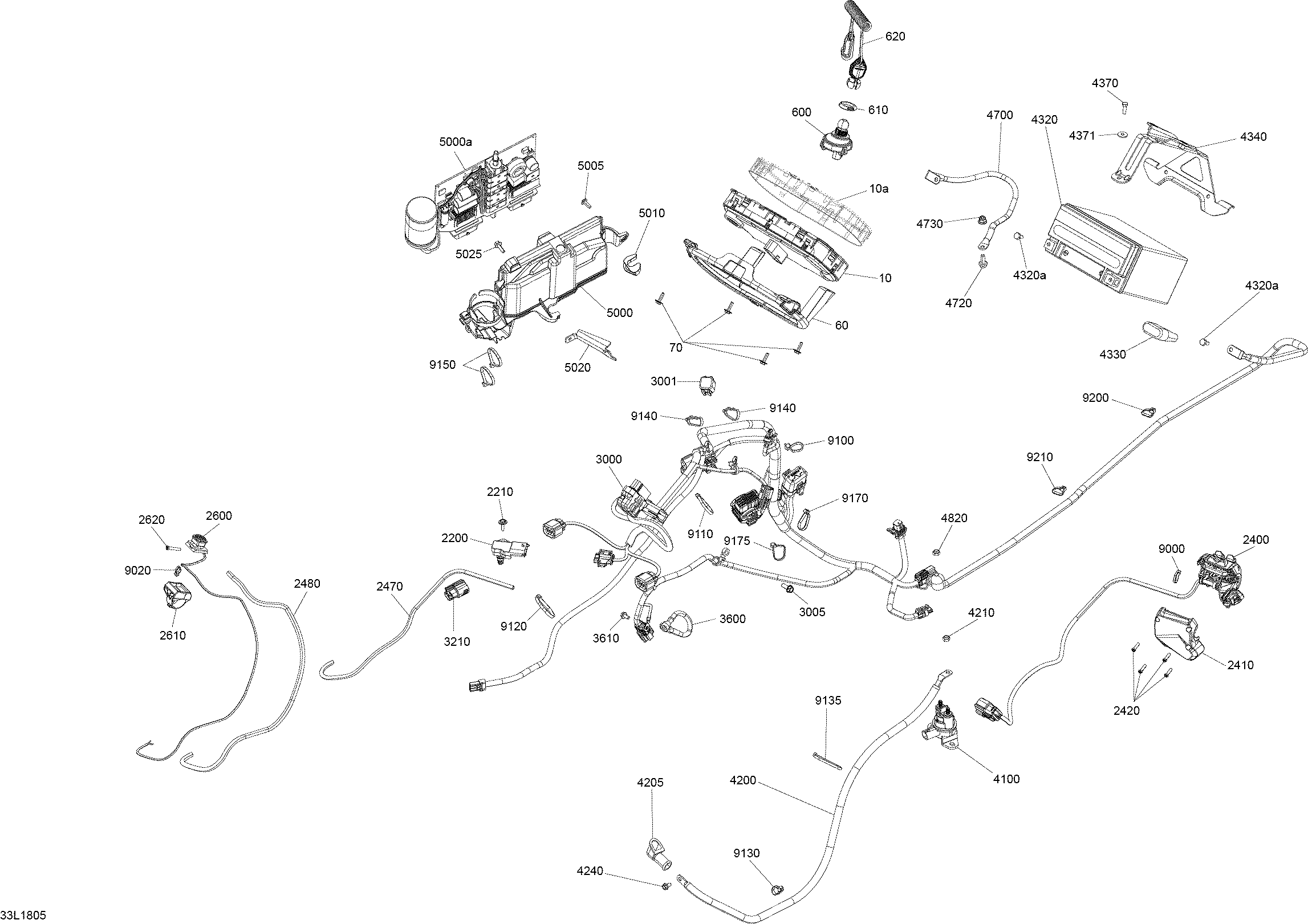

10- Electrical System Rave - 850 E-TEC - Electric Starter для BRP Lynx RAVE 850 E-TEC - 2018
-
№АртикулНазвание
-
10>10a515177860 Indicator. Includes 10 to 10aIndicator. Includes 10 to 10a
-
10a415129349 LensLens
-
60515177866 SupportSupport
-
70250000725 Screw M4 X 16Screw M4 X 16
-
600515178225 DESS SwitchDESS Switch
-
610278002963 Safety NutSafety Nut
-
620515178288 KeyKey
-
2200707000995 Pressure And Temperature SensorPressure And Temperature Sensor
-
2210250000725 Screw M4 X 16Screw M4 X 16
-
2400515178196 LH HousingLH Housing
-
2410515177147 Housing PlateHousing Plate
-
2420250000671 Torx ScrewTorx Screw
-
2470415130141 SleeveSleeve
-
2480415130141 SleeveSleeve
-
2600515177931 Kill SwitchKill Switch
-
2610515177310 Kill Switch SupportKill Switch Support
-
2620250000263 Torx Screw #8-18Torx Screw #8-18
-
3000515178364 Main HarnessMain Harness
-
3001515178435 Diagnostic CapDiagnostic Cap
-
3005250000936 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
3210515178177 4 Circuits Female Housing4 Circuits Female Housing
-
3600515178248 Ground WireGround Wire
-
3610207551044 Flanged Hex. Screw M5 X 10Flanged Hex. Screw M5 X 10
-
4100278003012 Starter RelayStarter Relay
-
4200515178110 Positive WirePositive Wire
-
4205710000495 Protector CapProtector Cap
-
4210232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
4240207551044 Flanged Hex. Screw M5 X 10Flanged Hex. Screw M5 X 10
-
4320>4320a415129898 Lead Battery 18 Amperes. Includes 4320 to 4320aLead Battery 18 Amperes. Includes 4320 to 4320a
-
4320a250000282 Battery Bolt KitBattery Bolt Kit
-
4330710001817 Protector CapProtector Cap
-
4340515177870 Battery StripBattery Strip
-
4370207151644 Hex. Screw M5 X 16Hex. Screw M5 X 16
-
4371391301600 WasherWasher
-
4700515178155 Ground WireGround Wire
-
4720207661644 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
4730233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
4820232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5000>5000a512061093 Igniton Module. Includes 5000 to 5000aIgniton Module. Includes 5000 to 5000a
-
5000a515177272 CapacitorCapacitor
-
5005250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
5010515178430 Rubber StopperRubber Stopper
-
5020515178159 Module SupportModule Support
-
5025207651646 Hex. Flanged Screw M5 X 16Hex. Flanged Screw M5 X 16
-
9000293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
9020293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
9100414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9110414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9120414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9130414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9135293750002 Tie-Rap 142 mmTie-Rap 142 mm
-
9140414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9150293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
9170414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9175414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
9200293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
9210414115200 Tie-Rap 180 mmTie-Rap 180 mm
