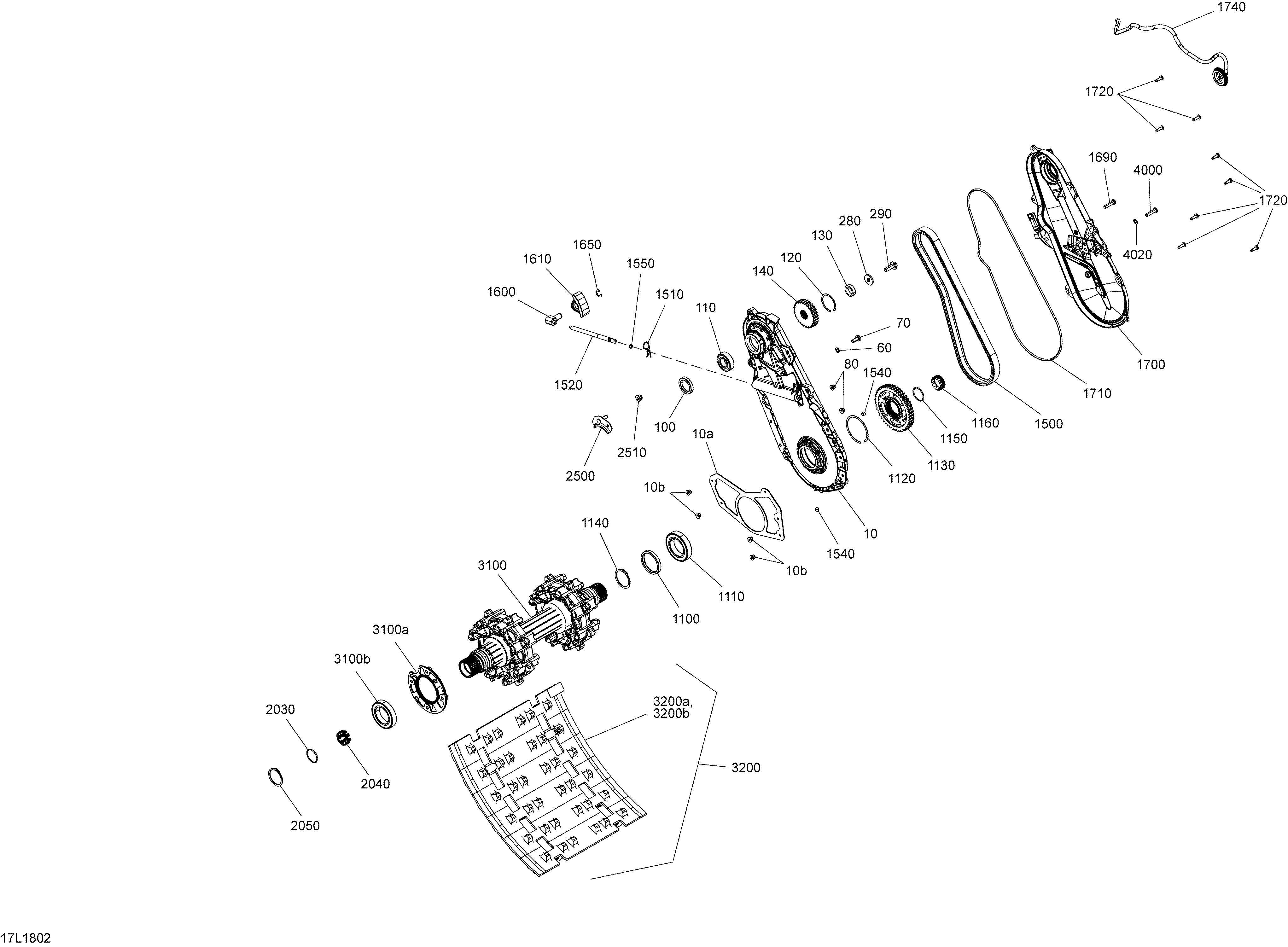

05- Drive Train Rave - 850 E-TEC для BRP Lynx RAVE 850 E-TEC - 2018
-
№АртикулНазвание
-
10>10b504153718 Chaincase Ass'y. Includes 10 to 10bChaincase Ass'y. Includes 10 to 10b
-
10a861805514 Kit Plate Ass'yKit Plate Ass'y
-
10b233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
60504082900 WasherWasher
-
70250000740 Torx Screw M8 X 20, Scotch GripTorx Screw M8 X 20, Scotch Grip
-
80233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
100293200158 Oil SealOil Seal
-
110293350115 Ball BearingBall Bearing
-
120504152576 CirclipCirclip
-
130504152628 ShimShim
-
140504084300 Sprocket, 25 Teeth (Large)Sprocket, 25 Teeth (Large)
-
280504152784 Spring Washer M10Spring Washer M10
-
290207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
1100293200159 Oil SealOil Seal
-
1110293350059 Ball BearingBall Bearing
-
1120504152582 CirclipCirclip
-
1130504152593 Sprocket, 45 TeethSprocket, 45 Teeth
-
1140504152572 CirclipCirclip
-
1150293300201 O-RingO-Ring
-
1160504153696 Magnetic Cap Ass'yMagnetic Cap Ass'y
-
1500504152631 Drive Chain, 108 LinksDrive Chain, 108 Links
-
1510414575600 Hair PinHair Pin
-
1520504153760 Adjustment ScrewAdjustment Screw
-
1540250500012 Allen Drive Plug 1/8-27 PTFAllen Drive Plug 1/8-27 PTF
-
1550293300202 O-RingO-Ring
-
1600504153559 TensionerTensioner
-
1610504153312 Slider ChainSlider Chain
-
1650293370105 CirclipCirclip
-
1690250000764 Hex. Button Head Screw M8 X 35Hex. Button Head Screw M8 X 35
-
1700504153537 Chaincase Cover Ass'yChaincase Cover Ass'y
-
1710293300199 O-RingO-Ring
-
1720250000870 Torx Screw, M6 X 20Torx Screw, M6 X 20
-
1740504153535 Cap Ass'yCap Ass'y
-
2030293300201 O-RingO-Ring
-
2040504153697 Magnetic CapMagnetic Cap
-
2050504152572 CirclipCirclip
-
2500504153099 Bearing HousingBearing Housing
-
2510233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3100>3100b504153923 Driveaxle Assy, Machined. Includes 3100 to 3100bDriveaxle Assy, Machined. Includes 3100 to 3100b
-
3100a504153426 Retaining RingRetaining Ring
-
3100b293350059 Ball BearingBall Bearing
-
3200>3200b504153420 Track Ass'y 15'' X128'' X1.6''. Includes 3200 to 3200bTrack Ass'y 15'' X128'' X1.6''. Includes 3200 to 3200b
-
3200a415129528 Track GuideTrack Guide
-
3200b415129529 CleatCleat
-
4000250000764 Hex. Button Head Screw M8 X 35Hex. Button Head Screw M8 X 35
-
4020504082900 WasherWasher
