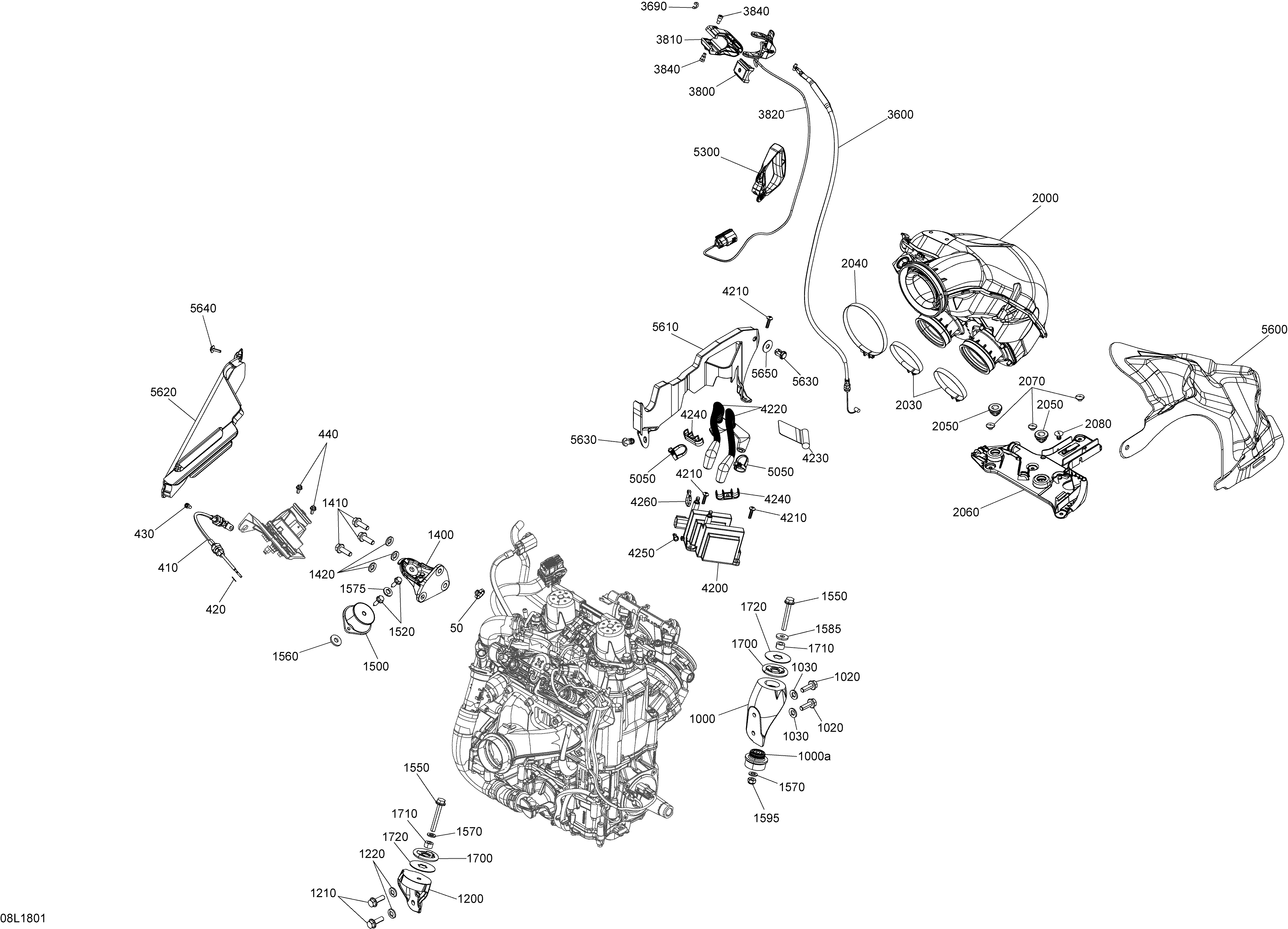

01- Engine Xtrim - 850 E-TEC для BRP Lynx XTRIM 850 E-TEC - 2018
-
№АртикулНазвание
-
50414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
410420997033 Bowden Cable Ass'yBowden Cable Ass'y
-
420293370122 CirclipCirclip
-
430205551060 Socket Head Screw M5 X 10Socket Head Screw M5 X 10
-
440207551044 Flanged Hex. Screw M5 X 10Flanged Hex. Screw M5 X 10
-
1000>1000a512061136 Rear PTO Support. Includes 1000 to 1000aRear PTO Support. Includes 1000 to 1000a
-
1000a512060295 Rubber MountRubber Mount
-
1020207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
1030250200146 Conical Spring Washer M8Conical Spring Washer M8
-
1200512061025 Front PTO SupportFront PTO Support
-
1210207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
1220250200146 Conical Spring Washer M8Conical Spring Washer M8
-
1400512061027 MAG SupportMAG Support
-
1410207582586 Hex. Flanged Screw M8 X 25, Scotch GripHex. Flanged Screw M8 X 25, Scotch Grip
-
1420250200146 Conical Spring Washer M8Conical Spring Washer M8
-
1500512060729 Rubber MountRubber Mount
-
1520250000822 Hex. Flanged Screw M6 X 16Hex. Flanged Screw M6 X 16
-
1550207585544 Hex. Flanged Screw M8 X 55Hex. Flanged Screw M8 X 55
-
1560503183200 Washer, YellowWasher, Yellow
-
1570250200008 Flat Washer With Teflon 8 mmFlat Washer With Teflon 8 mm
-
1575250200146 Conical Spring Washer M8Conical Spring Washer M8
-
1585503183200 Washer, YellowWasher, Yellow
-
1595232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
1700512061137 Engine StopperEngine Stopper
-
1710512061198 SpacerSpacer
-
1720512061282 SpacerSpacer
-
2000508000944 Chamber Ass'y. Manual StarterChamber Ass'y. Manual Starter
-
2000508000944 Chamber Ass'y. Electric StarterChamber Ass'y. Electric Starter
-
2030293650212 GEMI ClampGEMI Clamp
-
2040293650247 Gemi ClampGemi Clamp
-
2050420201630 Rubber CapRubber Cap
-
2060512061274 Airbox SupportAirbox Support
-
2070293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
2080293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
3600512061026 Throttle CableThrottle Cable
-
3690414274500 CirclipCirclip
-
3800512060859 Upper HousingUpper Housing
-
3810512060860 Lower HousingLower Housing
-
3820512061266 Throttle Ass'yThrottle Ass'y
-
3840732601143 Flanged ScrewFlanged Screw
-
4200512061168 Ignition CoilIgnition Coil
-
4210250000760 Torx Screw Truss Head PT.K50 X 20Torx Screw Truss Head PT.K50 X 20
-
4220512061166 Ignition CableIgnition Cable
-
4230516007661 Warning Decal, InjectorsWarning Decal, Injectors
-
4240512061238 Spark Plug Wire HolderSpark Plug Wire Holder
-
4250293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
4260293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
5050512060993 ClampClamp
-
5300512060136 Starter GripStarter Grip
-
5600512061213 Acoustic CoverAcoustic Cover
-
5610512061215 LH Acoustic CoverLH Acoustic Cover
-
5620512061216 RH Acoustic CoverRH Acoustic Cover
-
5630293150089 Tuflok Plastic RivetTuflok Plastic Rivet
-
5640250000725 Screw M4 X 16Screw M4 X 16
-
5650506153003 WasherWasher
