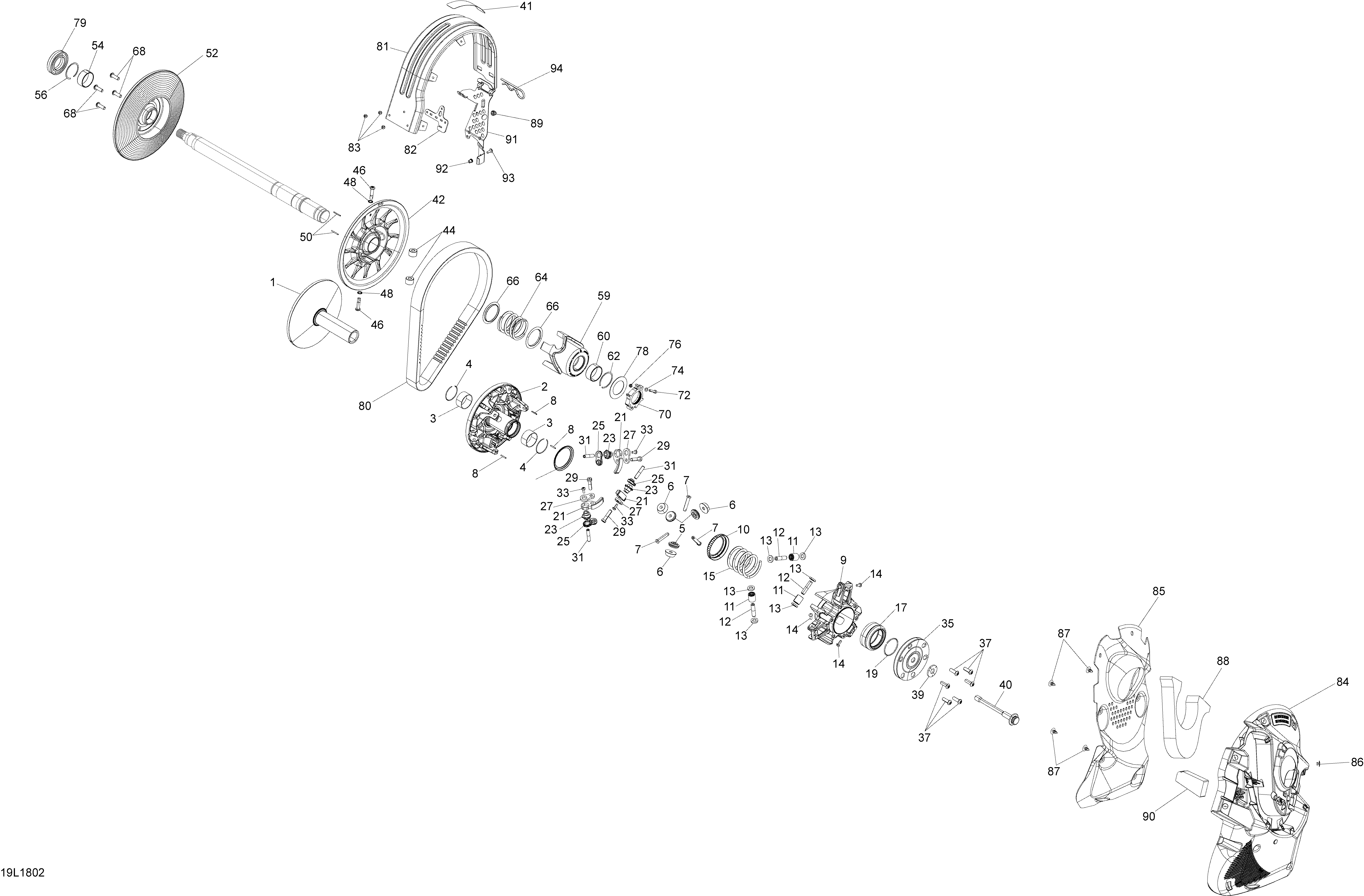

05- Pulley Xtrim - 850 E-TEC для BRP Lynx XTRIM 850 E-TEC - 2018
-
№АртикулНазвание
-
1417224278 Fixed Flange Ass'yFixed Flange Ass'y
-
2417224275 Slidding Flange Ass'ySlidding Flange Ass'y
-
3293250389 BushingBushing
-
4293370117 CirclipCirclip
-
5417224153 Back Torque RollerBack Torque Roller
-
6417224034 Torque RollerTorque Roller
-
7417224277 Axle - 8mmAxle - 8mm
-
8250400074 Spring Pin 3/32'' X 3/4''Spring Pin 3/32'' X 3/4''
-
9417224019 Spyder Ass'ySpyder Ass'y
-
10417224002 Spring GuideSpring Guide
-
11417223808 Roller AssyRoller Assy
-
12417223989 Axle - 10mmAxle - 10mm
-
13417224009 Washer-ThrustWasher-Thrust
-
14250000763 Torx-Truss M/S M5 X 14 S.GripTorx-Truss M/S M5 X 14 S.Grip
-
15417224172 Clutch Spring. TR16X137X1.7Clutch Spring. TR16X137X1.7
-
15417224015 Clutch Spring. TR16X137X2.3Clutch Spring. TR16X137X2.3
-
17417224003 Seat SpringSeat Spring
-
19293370116 CirclipCirclip
-
21417224227 Ramp 968. TR16X137X1.7Ramp 968. TR16X137X1.7
-
21417224038 Ramp 951. TR16X137X2.3Ramp 951. TR16X137X2.3
-
23417224113 Cam MoldedCam Molded
-
25417224086 Lever-RightLever-Right
-
27417224114 Lever LeftLever Left
-
29417224221 Pivot 33mmPivot 33mm
-
31417223631 Axle - 8mmAxle - 8mm
-
33250000763 Torx-Truss M/S M5 X 14 S.GripTorx-Truss M/S M5 X 14 S.Grip
-
35417223994 Cushion-DriveCushion-Drive
-
37250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
39250200144 Conical Spring Washer M14Conical Spring Washer M14
-
40417300522 Pulley Drive Bolt M14 X 144Pulley Drive Bolt M14 X 144
-
41516007667 Warning DecalWarning Decal
-
42417127400 Fix Flange Ass'yFix Flange Ass'y
-
44417127016 RollerRoller
-
46417127294 Pivot StudPivot Stud
-
48250200009 Lock Washer 8 mmLock Washer 8 mm
-
50250400070 Spring PinSpring Pin
-
52417127317 Sliding Flange Ass'ySliding Flange Ass'y
-
54417127318 BushingBushing
-
56293370049 CirclipCirclip
-
59417127325 Cam Ass'y. TR16X137X1.7Cam Ass'y. TR16X137X1.7
-
59417127564 Cam Ass'y. TR16X137X2.3Cam Ass'y. TR16X137X2.3
-
60417127318 BushingBushing
-
62293370049 CirclipCirclip
-
64417127137 Green Spring. TR16X137X1.7Green Spring. TR16X137X1.7
-
64417127039 Black Spring. TR16X137X2.3Black Spring. TR16X137X2.3
-
66417127116 Swivel AbutmentSwivel Abutment
-
68250000757 Screw-Torx Button Head M8 X 25 S.GrScrew-Torx Button Head M8 X 25 S.Gr
-
70415129604 Calibration Ass'yCalibration Ass'y
-
72250000981 Socket Screw M5 X 25Socket Screw M5 X 25
-
74234051410 Flat Washer M5Flat Washer M5
-
76232551414 Elastic Stop Nut M5Elastic Stop Nut M5
-
78417127155 WasherWasher
-
79504152574 Ball BearingBall Bearing
-
80417300531 Drive BeltDrive Belt
-
81417300479 Belt GuardBelt Guard
-
82417300494 BracketBracket
-
83390909200 Avex RivetAvex Rivet
-
84417300533 Cvt Air DuctCvt Air Duct
-
84414575600 Hair PinHair Pin
-
85417300538 Acoustic PannelAcoustic Pannel
-
86293150103 Black Pop Rivet 3/16''Black Pop Rivet 3/16''
-
87414644300 DartDart
-
88417300509 FoamFoam
-
89233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
90417300517 FoamFoam
-
91417300482 Belt Guard BracketBelt Guard Bracket
-
92293450268 InsertInsert
-
93250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
94114045200 Hair PinHair Pin
