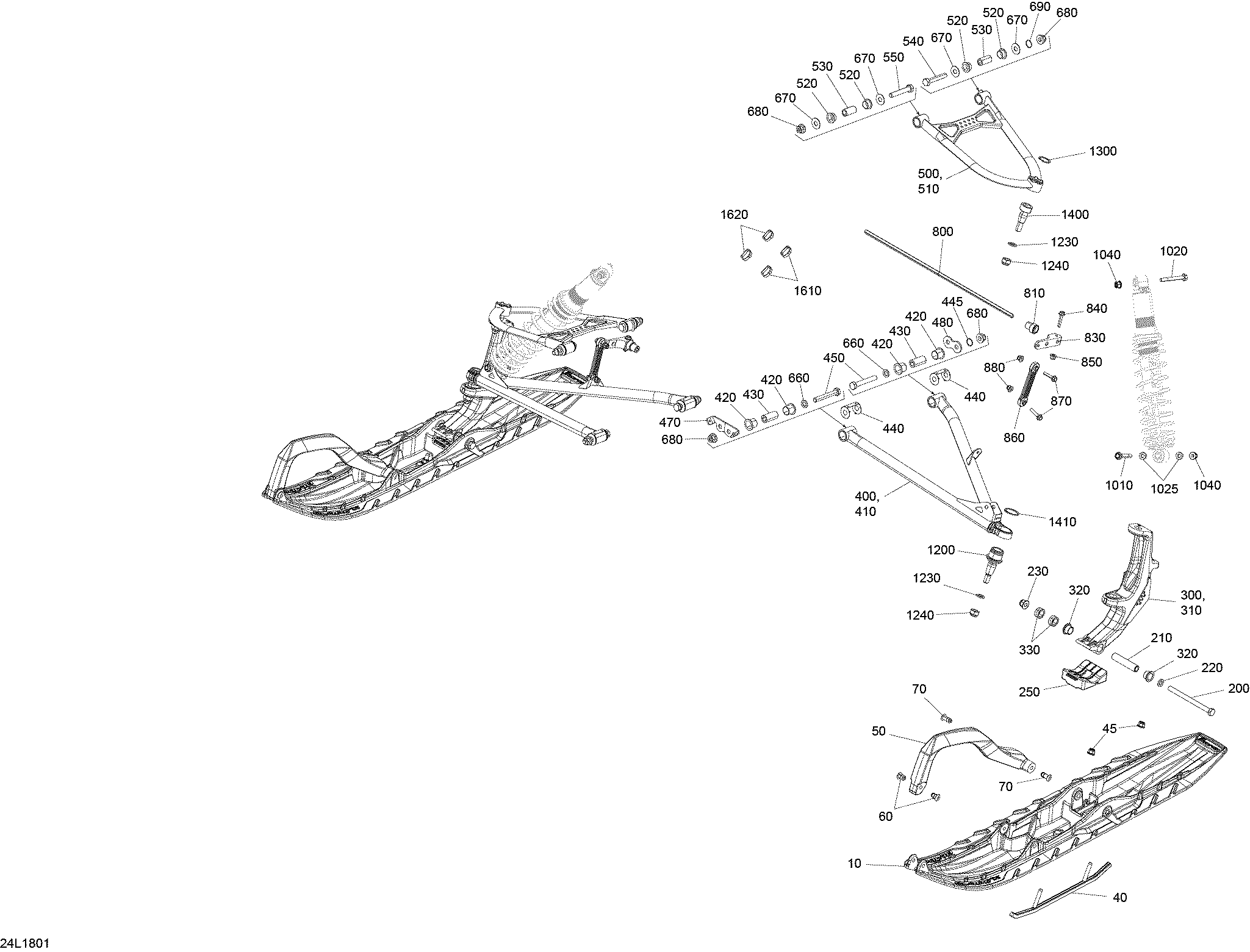

07- Front Suspension And Ski Xtrim Engine 850 E-TEC для BRP Lynx XTRIM 850 E-TEC - 2018
-
№АртикулНазвание
-
10505073834 Black Ski Blade DSBlack Ski Blade DS
-
40860201044 Carbide Runner KitCarbide Runner Kit
-
45233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
50505072976 Black HandleBlack Handle
-
60505071812 RetainerRetainer
-
70505072133 RetainerRetainer
-
200250000703 Hex. Screw M10 X 130Hex. Screw M10 X 130
-
210505073691 Ski AxleSki Axle
-
220503192496 WasherWasher
-
230233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
250505072594 Ski StopperSki Stopper
-
300505074376 Lh Ski LegLh Ski Leg
-
310505074377 Rh Ski LegRh Ski Leg
-
320505072690 Leg BushingLeg Bushing
-
330505074325 SpacerSpacer
-
400505074085 Lower Arm RhLower Arm Rh
-
410505074084 Lower Arm LhLower Arm Lh
-
420505073330 CushionCushion
-
430505072209 BushingBushing
-
440505072634 Wear PlateWear Plate
-
445505072448 O-RingO-Ring
-
450250000291 Screw Hex. M10 X 70Screw Hex. M10 X 70
-
470505073723 Wear PlateWear Plate
-
480505073844 PlatePlate
-
500505074090 Lh.armLh.arm
-
510505074091 Arm-upperArm-upper
-
520505073329 Swivel BushingSwivel Bushing
-
530505072143 BushingBushing
-
540250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
550250000290 Screw Hex. M10 X 60Screw Hex. M10 X 60
-
660503189564 WasherWasher
-
670505072392 WasherWasher
-
680250100165 Hex. Flanged Elastic Nut M10Hex. Flanged Elastic Nut M10
-
690505072448 O-RingO-Ring
-
800505073819 StabilisatorStabilisator
-
810505072064 BushingBushing
-
830505073731 Stabilisator LeverStabilisator Lever
-
840207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
850233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
860505072204 Double Ball Joint LinkDouble Ball Joint Link
-
870207663056 Hex Flanged Screw M6 X 30Hex Flanged Screw M6 X 30
-
880233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
1010250000824 Hexagonal Flange Screw M8 X 58Hexagonal Flange Screw M8 X 58
-
1020250000824 Hexagonal Flange Screw M8 X 58Hexagonal Flange Screw M8 X 58
-
1025505073892 SpacerSpacer
-
1040233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
1200505074133 Ball JointBall Joint
-
1230503192491 WasherWasher
-
1240232521464 Hex Elastic Nut M12Hex Elastic Nut M12
-
1300293370070 CirclipCirclip
-
1400505072913 Upper Ball JointUpper Ball Joint
-
1410293370098 Snap RingSnap Ring
-
1610414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
1620414115200 Tie-Rap 180 mmTie-Rap 180 mm
