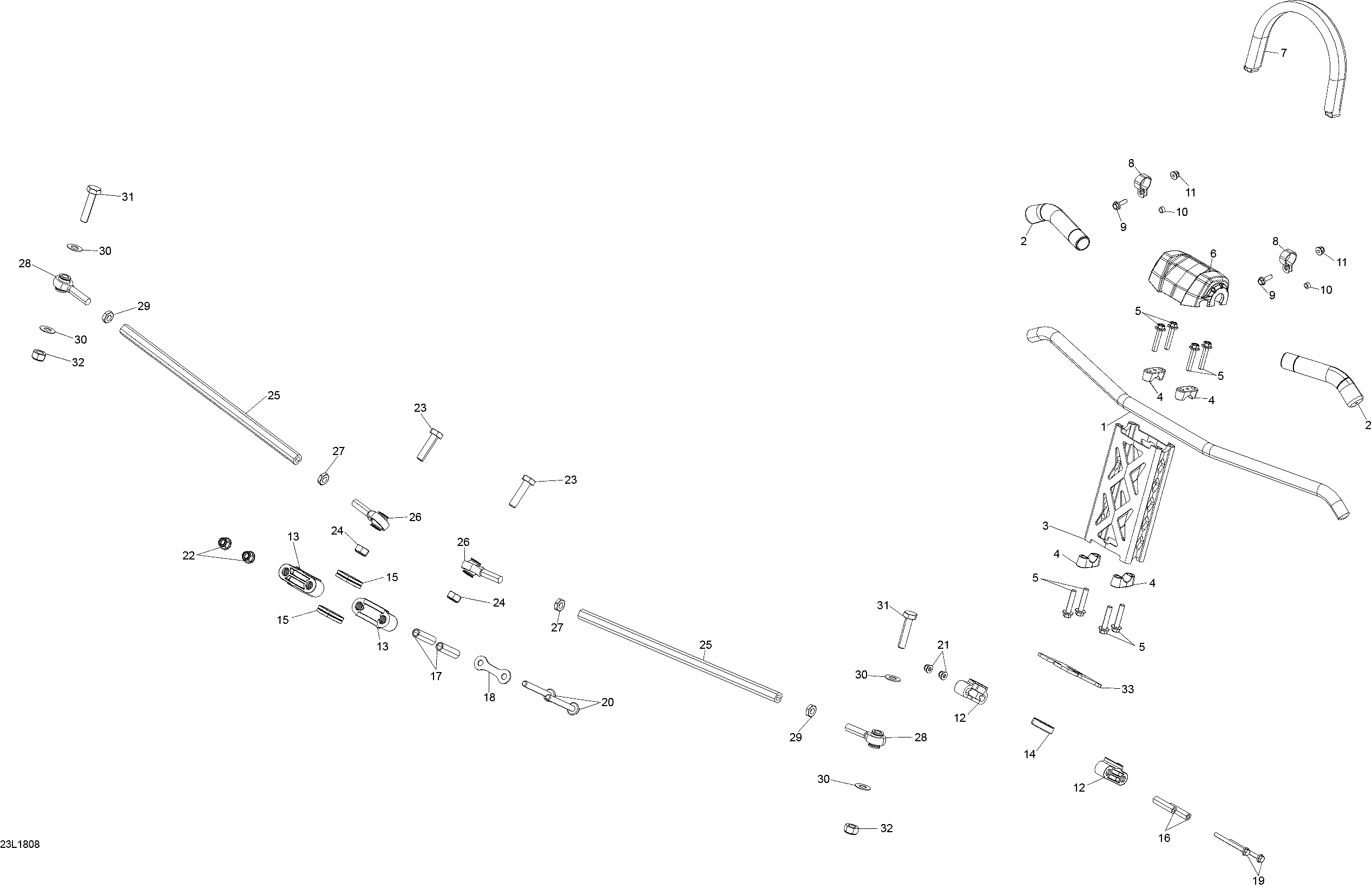

07- Steering 59 Yeti для BRP Lynx YETI 600 ACE - 2018
-
№АртикулНазвание
-
1506152722 Handle BarHandle Bar
-
2506152483 GripGrip
-
3860200269 Handlebar ExtensionHandlebar Extension
-
4506152750 Steering SupportSteering Support
-
5250000285 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
6506152553 Steering PadSteering Pad
-
7506152115 Strap Ass'yStrap Ass'y
-
8506152536 Black Support PlateBlack Support Plate
-
9207662054 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
10506152156 BushingBushing
-
11233261494 Hex. Elastic Flanged Nut M6Hex. Elastic Flanged Nut M6
-
12506152508 Upper Half-HousingUpper Half-Housing
-
13506152217 Lower Half-HousingLower Half-Housing
-
14506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
15506152518 Lower Vibration RingLower Vibration Ring
-
16506152297 Housing BushingHousing Bushing
-
17506152388 Lower Housing BushingLower Housing Bushing
-
18506152389 Stopper PlateStopper Plate
-
19207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
20207686544 Hex. Flanged Screw, M8 X 65Hex. Flanged Screw, M8 X 65
-
21233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
22233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
23207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
24232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
25506152436 Tie RodTie Rod
-
26506152081 LH Thread Ball JointLH Thread Ball Joint
-
27250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
28506152019 RH Thread Ball JointRH Thread Ball Joint
-
29732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
30506152582 WasherWasher
-
31207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
32233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
33506152404 CushionCushion
