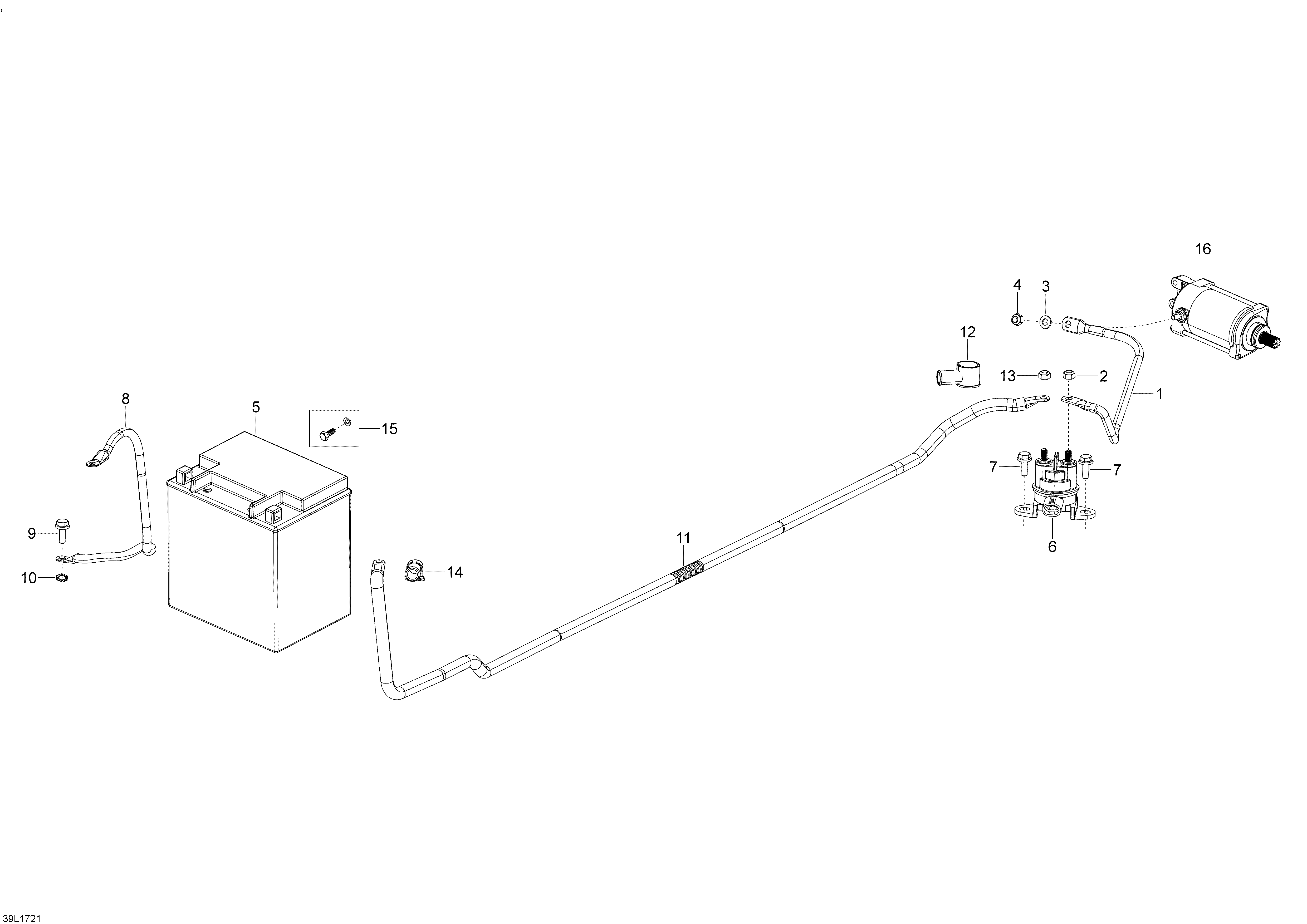

10- Battery And Electric Starter 2018 для BRP Lynx YETI 600 ACE - 2018
-
№АртикулНазвание
-
1515176945 Start CableStart Cable
-
2232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
3234061410 Flat Washer M6Flat Washer M6
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5515176151 Battery 30AHBattery 30AH
-
6278003012 Starter SolenoidStarter Solenoid
-
7207561644 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
8515176777 Ground CableGround Cable
-
9233261414 Hex. Flange Screw M6 x 16Hex. Flange Screw M6 x 16
-
10250200041 Serrated Lock WasherSerrated Lock Washer
-
11515176778 Battery CableBattery Cable
-
12570151000 Protection CapProtection Cap
-
13232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
14710000495 Protector CapProtector Cap
-
15250000282 Battery Fastener KitBattery Fastener Kit
-
16420892429 Electric StarterElectric Starter
