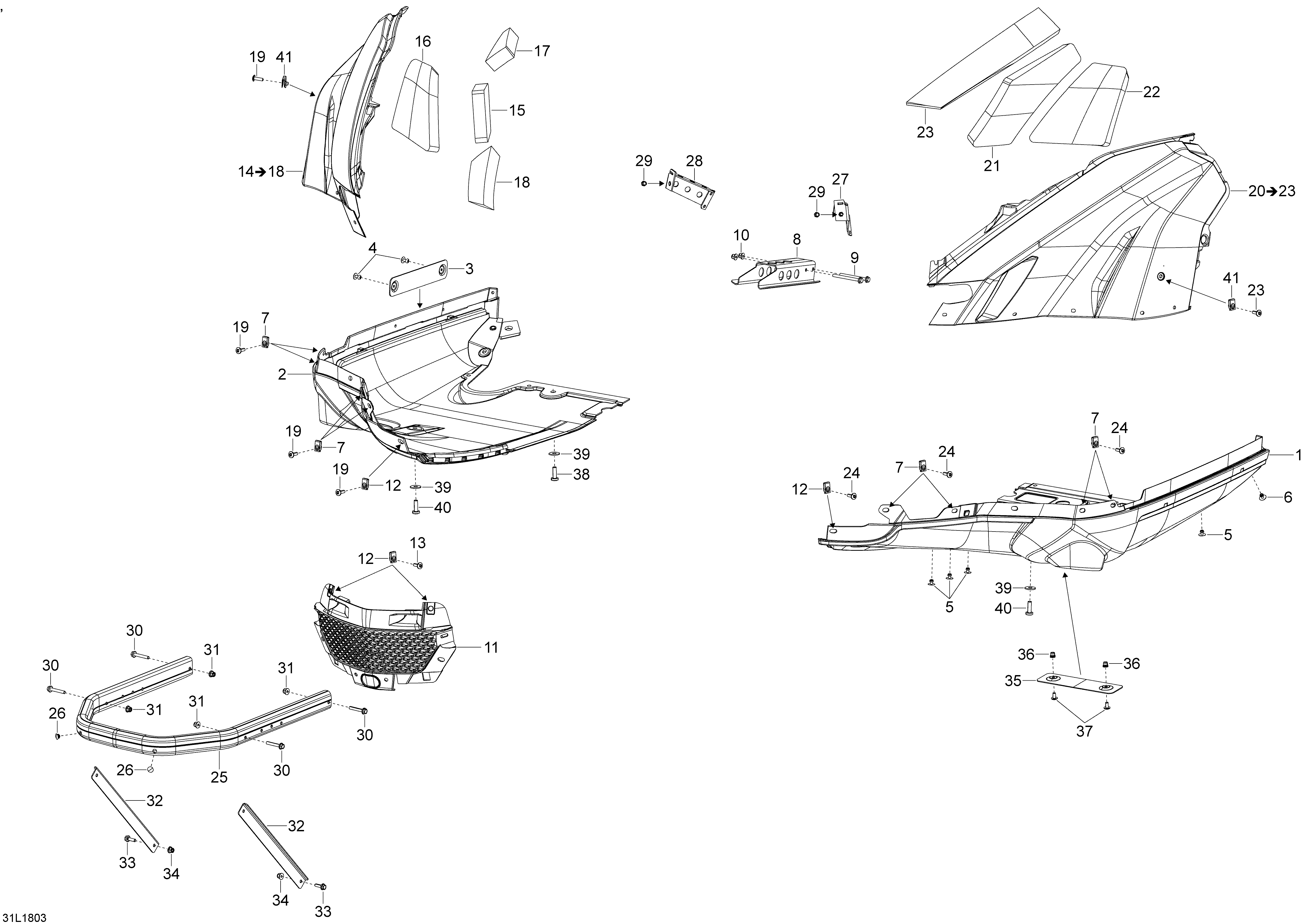

09- Bottom Pan 59 Yeti для BRP Lynx YETI 600 ACE - 2018
-
№АртикулНазвание
-
1502007836 Bottom-pan Lower Lh.Bottom-pan Lower Lh.
-
2502007837 Bottom-pan Lower Rh.Bottom-pan Lower Rh.
-
3502007255 Heat Isolation PlateHeat Isolation Plate
-
4293150211 RivetRivet
-
5293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
6293150108 Pop Rivet 3/16”Pop Rivet 3/16”
-
517302785 ClipClip
-
7250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
8502007688 SupportSupport
-
9207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
10233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
11502007140 Front GrillFront Grill
-
12250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
-
13250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
14502007292 Black Bottom Pan Ass'y RH. Includes 400 to 400,003Black Bottom Pan Ass'y RH. Includes 400 to 400,003
-
15502007133 InsulatorInsulator
-
16502007132 InsulatorInsulator
-
18502007009 InsulatorInsulator
-
19250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
20502007294 Black Bottom Pan Ass'y LH. Includes 600 to 600,003Black Bottom Pan Ass'y LH. Includes 600 to 600,003
-
21502007088 InsulatorInsulator
-
22502007131 InsulatorInsulator
-
23502007185 InsulatorInsulator
-
24250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
25502007685 Black Anod. BumperBlack Anod. Bumper
-
26293730047 Black Dart 8 mmBlack Dart 8 mm
-
27502007535 LH Bottom Pan FastenerLH Bottom Pan Fastener
-
28502007536 RH Bottom Pan FastenerRH Bottom Pan Fastener
-
29605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
30207664044 Hex. Flanged Screw M6 X 40Hex. Flanged Screw M6 X 40
-
31233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
32502006927 Bumper SupportBumper Support
-
33207662044 Hex. Flanged Screw M6 X 20Hex. Flanged Screw M6 X 20
-
34233261414 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
35518328879 Oil PlateOil Plate
-
36605636003 Clinch Nut M6 HexsertClinch Nut M6 Hexsert
-
37250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
38250000752 Torx Screw M8 X 25, Scotch GripTorx Screw M8 X 25, Scotch Grip
-
39234082410 Flat Washer 8 mmFlat Washer 8 mm
-
40250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
41250000048 Panel Nut M6 X 1.0Panel Nut M6 X 1.0
