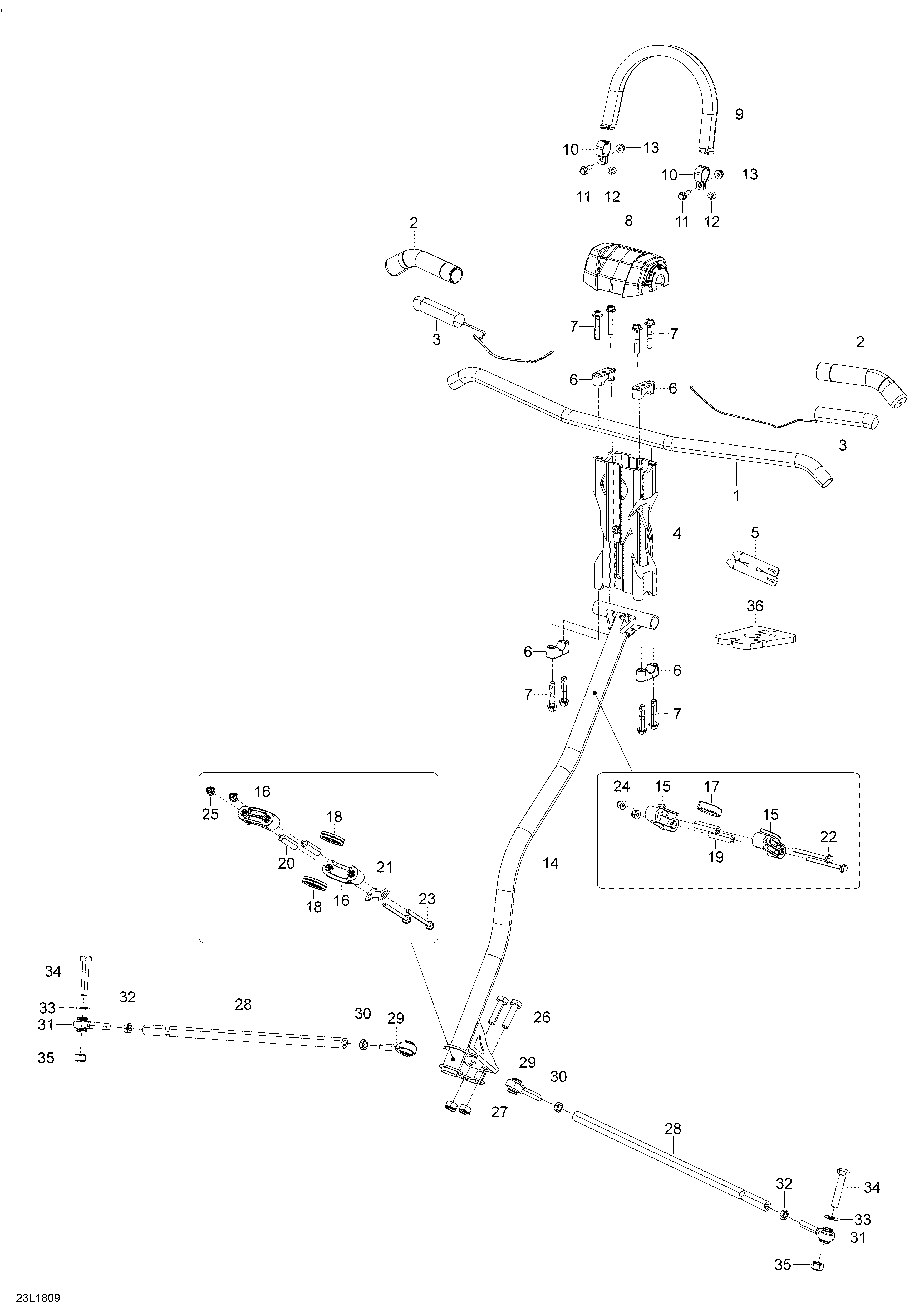

07- Steering 69 Yeti Army для BRP Lynx YETI 600 HO E-TEC - 2018
-
№АртикулНазвание
-
1506152762 Handle BarHandle Bar
-
2506152483 GripGrip
-
3506152428 Heated Film, 25WHeated Film, 25W
-
4a506152646 LeverLever
-
4b506152647 Lever PinLever Pin
-
4c506153045 Compression BlocCompression Bloc
-
4d234061600 Flat Washer M6, StainlessFlat Washer M6, Stainless
-
4e234161601 Lock Washer Helical M6Lock Washer Helical M6
-
4f205566060 Socket Head ScrewSocket Head Screw
-
4g732610072 Push NutPush Nut
-
5293850118 Rubber Strap Double 80/90Rubber Strap Double 80/90
-
6506152751 Steering SupportSteering Support
-
506152943 RH SupportRH Support
-
506152942 LH SupportLH Support
-
7250000285 Hex. Flanged Screw M8 x 40Hex. Flanged Screw M8 x 40
-
8506152807 Steering PadSteering Pad
-
9506152460 Moulding StrapMoulding Strap
-
11250000779 Torx Screw M6 X 18, Scotch GripTorx Screw M6 X 18, Scotch Grip
-
14506152962 Steering ColumnSteering Column
-
15506152508 Upper Half-HousingUpper Half-Housing
-
16506152217 Lower Half-HousingLower Half-Housing
-
17506152509 Upper Anti-Vibration GasketUpper Anti-Vibration Gasket
-
18506152518 Lower Vibration RingLower Vibration Ring
-
19506152297 Housing BushingHousing Bushing
-
20506152388 Lower Housing BushingLower Housing Bushing
-
21506152389 Stopper PlateStopper Plate
-
22207667086 Hex. Flanged Screw M6 x 70Hex. Flanged Screw M6 x 70
-
23207686544 Hex. Flanged Screw, M8 X 65Hex. Flanged Screw, M8 X 65
-
24233261416 Elastic Flanged Nut M6Elastic Flanged Nut M6
-
25233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
26207004044 Hex. Screw M10 X 40Hex. Screw M10 X 40
-
27232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
28506152436 Tie RodTie Rod
-
29506152081 LH Thread Ball JointLH Thread Ball Joint
-
30250100016 LH Hex. Jam Nut M10LH Hex. Jam Nut M10
-
31506152019 RH Thread Ball JointRH Thread Ball Joint
-
32732610010 RH Hex. Jam Nut M10RH Hex. Jam Nut M10
-
33506152582 WasherWasher
-
34207004544 Hex. Screw M10 X 45Hex. Screw M10 X 45
-
35233201464 Hex. Elast. Flanged Nut M10Hex. Elast. Flanged Nut M10
-
36506152404 CushionCushion
