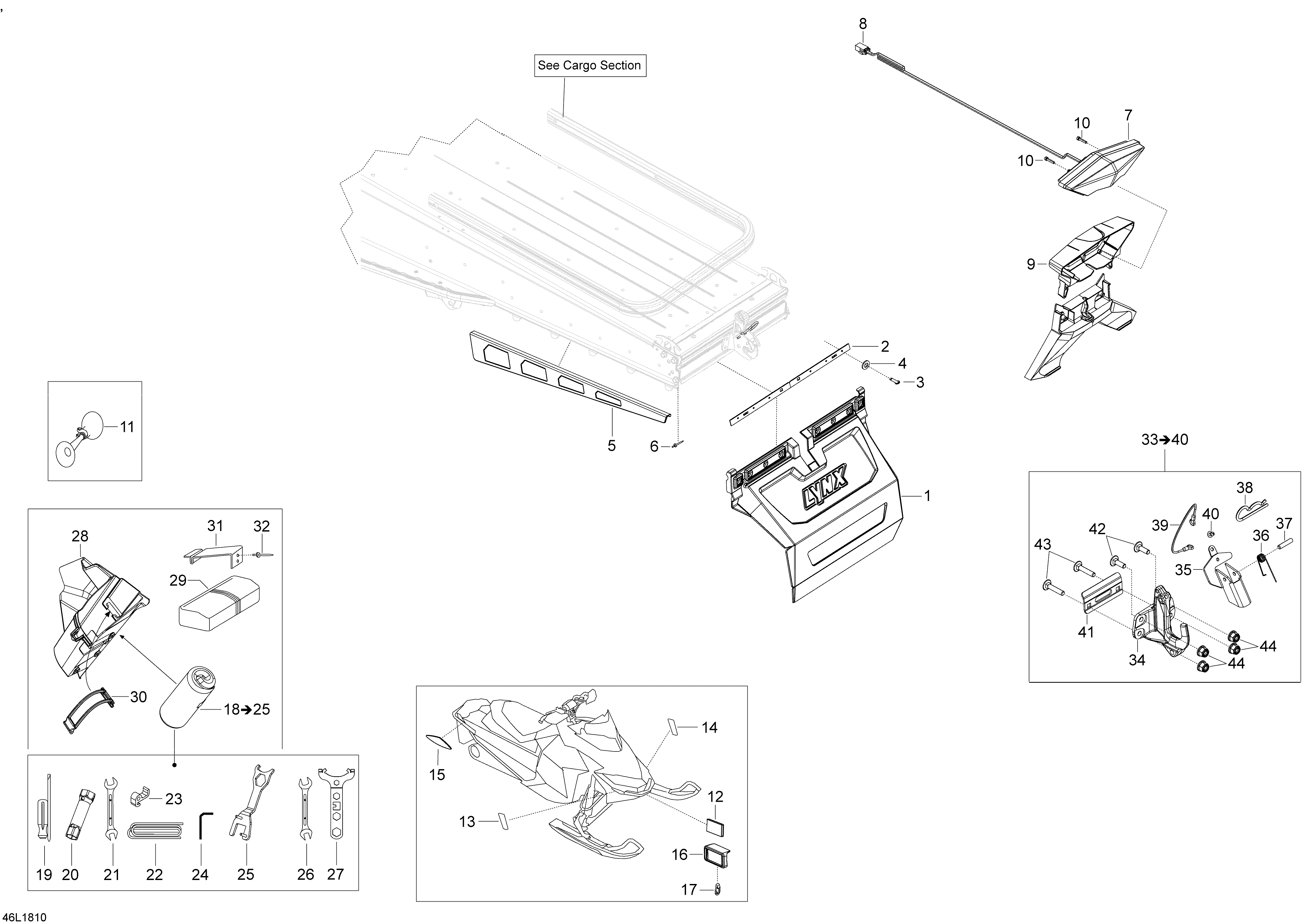

09- Utilities YETI - 600HO E-TEC для BRP Lynx YETI 600 HO E-TEC - 2018
-
№АртикулНазвание
-
1520001408 Black, Snow Guard LongBlack, Snow Guard Long
-
2520001022 PlatePlate
-
3250000676 Forming Screw M5 x 16Forming Screw M5 x 16
-
4250200025 Washer M5Washer M5
-
5520000693 RH ProtectorRH Protector
-
5520000694 LH ProtectorLH Protector
-
6293150163 Rivet Hucklok 4,8 mm HKLP-R6-5GATRivet Hucklok 4,8 mm HKLP-R6-5GAT
-
7520000692 Rear LightRear Light
-
9511000763 Rear Light CoverRear Light Cover
-
1040611 Screw Plastofast 4x10(1=10pcs)Screw Plastofast 4x10(1=10pcs)
-
11549011291 HornHorn
-
1221118 Reflector (Bright)Reflector (Bright)
-
13520001600 Yellow RH ReflectorYellow RH Reflector
-
14520001601 Yellow LH ReflectorYellow LH Reflector
-
15705002423 Amber Lateral ReflectorAmber Lateral Reflector
-
16520000871 Reflector SupportReflector Support
-
1727120 Tie RapTie Rap
-
18529000077 Tool KitTool Kit
-
2634017 WrenchWrench
-
27520001442 WrenchWrench
-
28520000894 Tool Kit RackTool Kit Rack
-
30520000528 LatchLatch
-
33520001774 Hitch Ass'y. Includes 33 to 40,2Hitch Ass'y. Includes 33 to 40,2
-
35520001775 Locking PlateLocking Plate
-
37520001810 Clevis Pin Din En 22341/ Iso 2341 BClevis Pin Din En 22341/ Iso 2341 B
-
3841029 Hair pinHair pin
-
40390909100 Avex RivetAvex Rivet
-
40.1520001811 Washer T1.5*id 6.5* Od 12 / Din 125. Not ShownWasher T1.5*id 6.5* Od 12 / Din 125. Not Shown
-
40.2520001812 Cotter Pin 1.7*20 /din 94 1,6 X 20. Not ShownCotter Pin 1.7*20 /din 94 1,6 X 20. Not Shown
-
41520000727 PlatePlate
-
42207782544 Carriage Bolt, M8 X 25Carriage Bolt, M8 X 25
-
43207784044 Bolt Carriage M8 X 40Bolt Carriage M8 X 40
-
44233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
45520001766 Support Tape. Not ShownSupport Tape. Not Shown
