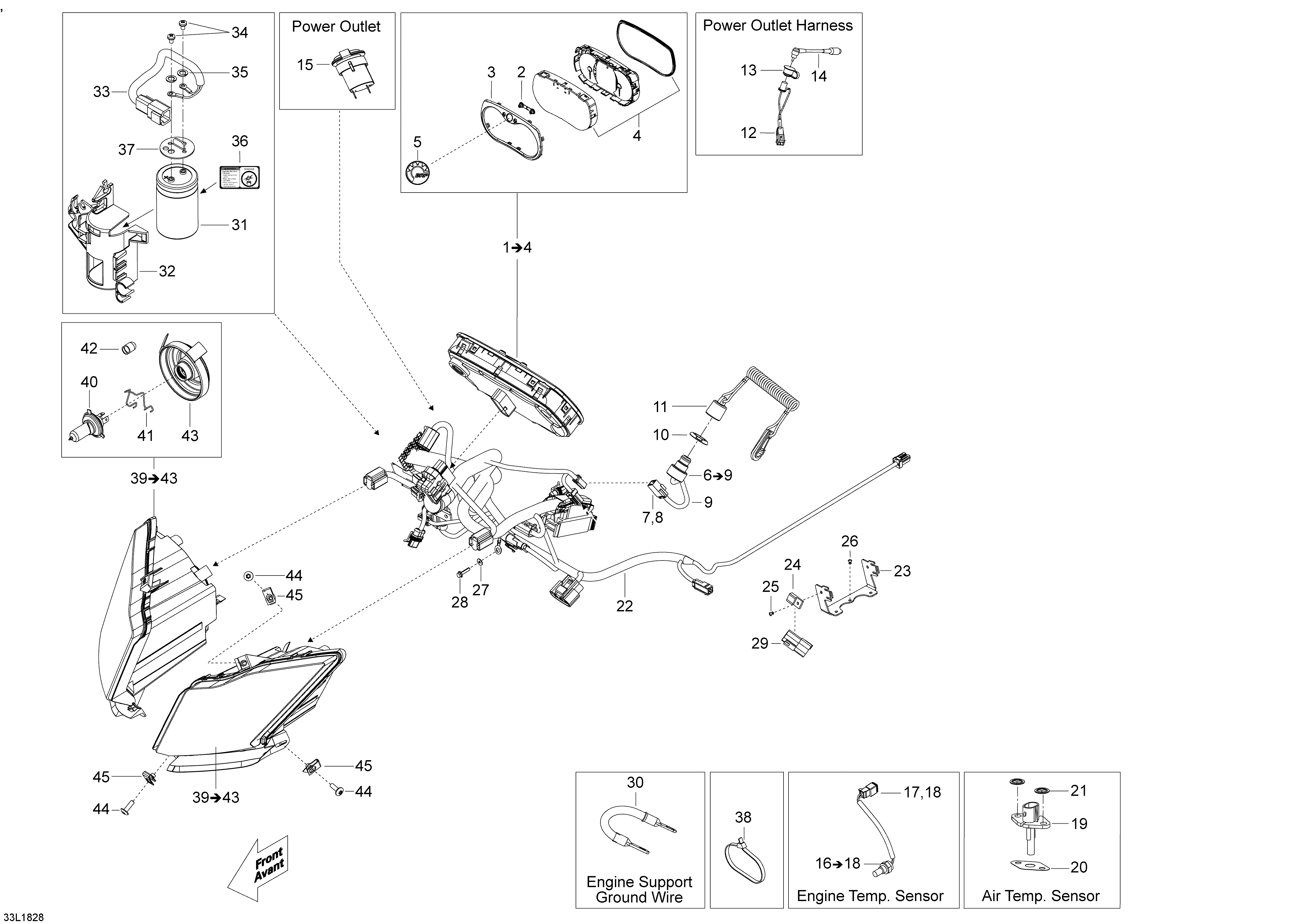

10- Electrical System для BRP Lynx YETI 600 HO E-TEC - 2018
-
№АртикулНазвание
-
1515177914 Speedometer. Includes 1 To 4Speedometer. Includes 1 To 4
-
2415129355 Speedometer ButtonSpeedometer Button
-
3415129348 Gauge RingGauge Ring
-
4415129349 LensLens
-
5516006224 BRP Logo, 20 mmBRP Logo, 20 mm
-
6515178225 DESS Switch. Includes 6 To 9DESS Switch. Includes 6 To 9
-
7515175232 Male TerminalMale Terminal
-
8515175494 Male Housing, 3 CircuitsMale Housing, 3 Circuits
-
9409902000 Tubing 12 mmTubing 12 mm
-
10278002963 Safety NutSafety Nut
-
11515178044 DESS CapDESS Cap
-
12515177837 Visor HarnessVisor Harness
-
13572103300 CapCap
-
14515175851 ExtensionExtension
-
15710001248 Outlet DCOutlet DC
-
16515177813 Temperature Sensor. Includes 16 To 18Temperature Sensor. Includes 16 To 18
-
17515175670 Female Terminal Housing, 2 CircuitsFemale Terminal Housing, 2 Circuits
-
18278000632 Female TerminalFemale Terminal
-
19515176366 Air Temperature SensorAir Temperature Sensor
-
20508000769 SealSeal
-
21389804300 Push NutPush Nut
-
22515178129 Main Harness. Model-600 E-TECMain Harness. Model-600 E-TEC
-
23515177925 Fusebox SupportFusebox Support
-
24270000141 ClipClip
-
25293150037 Avdel Rivet 3/16''Avdel Rivet 3/16''
-
26390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
27234141601 Lock Washer 4 mmLock Washer 4 mm
-
28250000741 Screw-Torx Button Head M4 X 8Screw-Torx Button Head M4 X 8
-
29710003006 HousingHousing
-
30515176861 Ground WireGround Wire
-
31515177272 CapacitorCapacitor
-
32515176607 Capacitor SupportCapacitor Support
-
33515176605 Capacitor HarnessCapacitor Harness
-
34250000462 Socket Head Screw M10 X 32Socket Head Screw M10 X 32
-
35250200026 Lock washerLock washer
-
36516006206 Capacitor DecalCapacitor Decal
-
37515177193 CapCap
-
38414115200 Tie-Rap 180 mmTie-Rap 180 mm
-
38293750008 Tie-Rap 350 mmTie-Rap 350 mm
-
38293750001 Tie-Rap 94 mmTie-Rap 94 mm
-
39517304194 RH Headlamp Ass'y. Includes 39 To 43RH Headlamp Ass'y. Includes 39 To 43
-
39517304195 LH Headlamp Ass'y. Includes 39 To 43LH Headlamp Ass'y. Includes 39 To 43
-
40515176274 Halogen Bulb, 60/55 W, 12 VHalogen Bulb, 60/55 W, 12 V
-
42515176498 CapCap
-
43515176499 CoverCover
-
44250000722 Torx Screw M6 X 20Torx Screw M6 X 20
-
45250100113 Panel Nut, M6 X 1.0Panel Nut, M6 X 1.0
