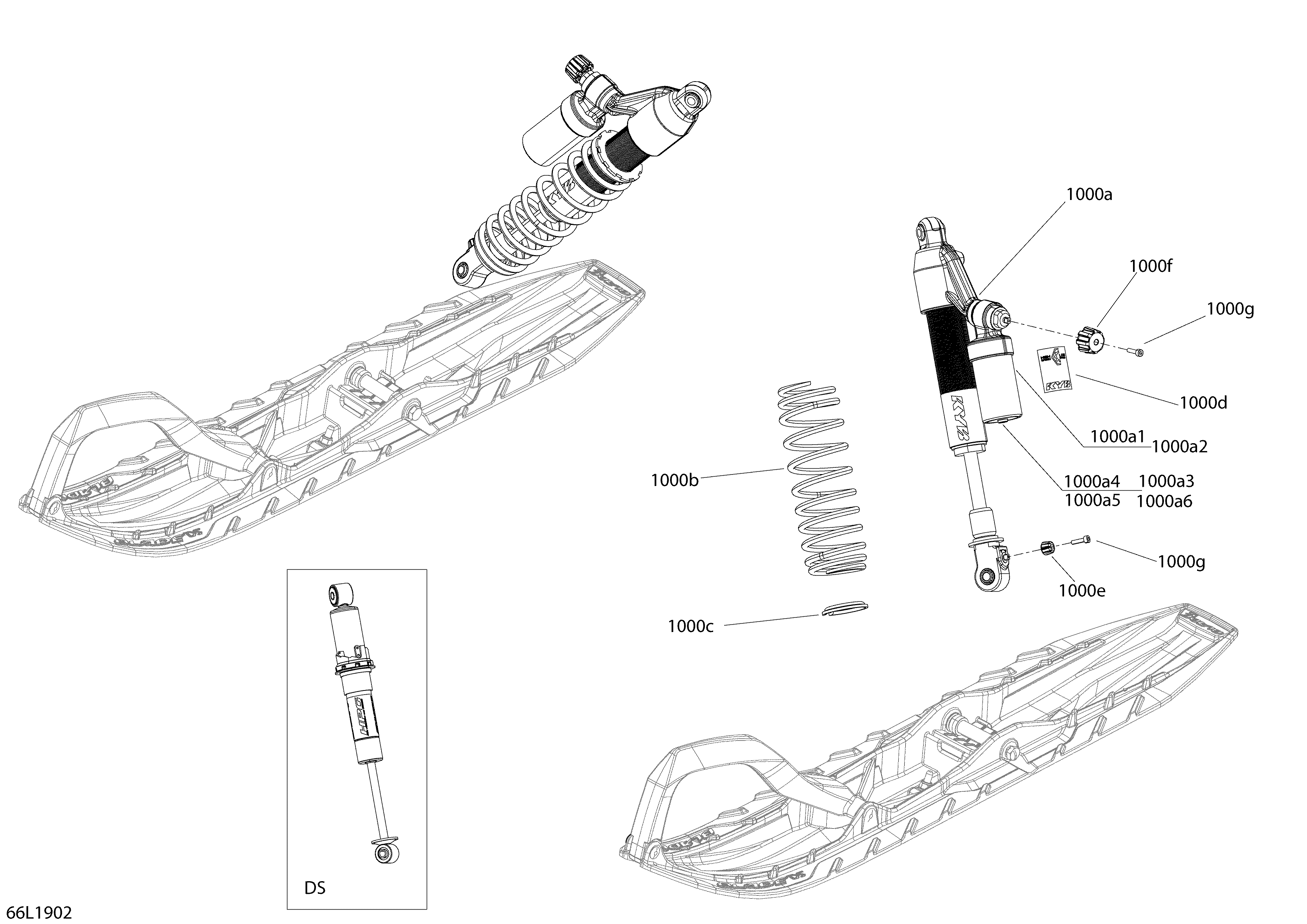

07- Front Shocks - DS - RE для BRP Lynx 002 - BoonDocker RE 850 E-TEC - 2019
-
№АртикулНазвание
-
1000a505074035 Front Shock HPG. Package DSFront Shock HPG. Package DS
-
1000a505074467 RH Front Shock Kashima PRO 36 R. Package RE. Includes 1000a to 1000a6RH Front Shock Kashima PRO 36 R. Package RE. Includes 1000a to 1000a6
-
1000a505074466 LH Front Shock Kashima Pro 36 R. Package RE. Includes 1000a to 1000a6LH Front Shock Kashima Pro 36 R. Package RE. Includes 1000a to 1000a6
-
1000a1415093807 O-Ring. Package REO-Ring. Package RE
-
1000a2415093806 Piston Ring. Package REPiston Ring. Package RE
-
1000a3505070400 O-Ring. Package REO-Ring. Package RE
-
1000a4505070399 Screw. Package REScrew. Package RE
-
1000a5415093804 O-Ring. Package REO-Ring. Package RE
-
1000a6415130165 Base Valve. Package REBase Valve. Package RE
-
1000b505074048 Spring. Package DSSpring. Package DS
-
1000b505074309 Deep Black, Spring. Package REDeep Black, Spring. Package RE
-
1000c503194270 Spring StopperSpring Stopper
-
1000d516005534 Shock Adjustment Decal. Package REShock Adjustment Decal. Package RE
-
1000e505072753 Adjustment Knob. Package REAdjustment Knob. Package RE
-
1000f503193033 Shock Adjuster Knob. Package REShock Adjuster Knob. Package RE
-
1000g250000644 Allen Screw M3 X 0.5 X 10. Package REAllen Screw M3 X 0.5 X 10. Package RE
