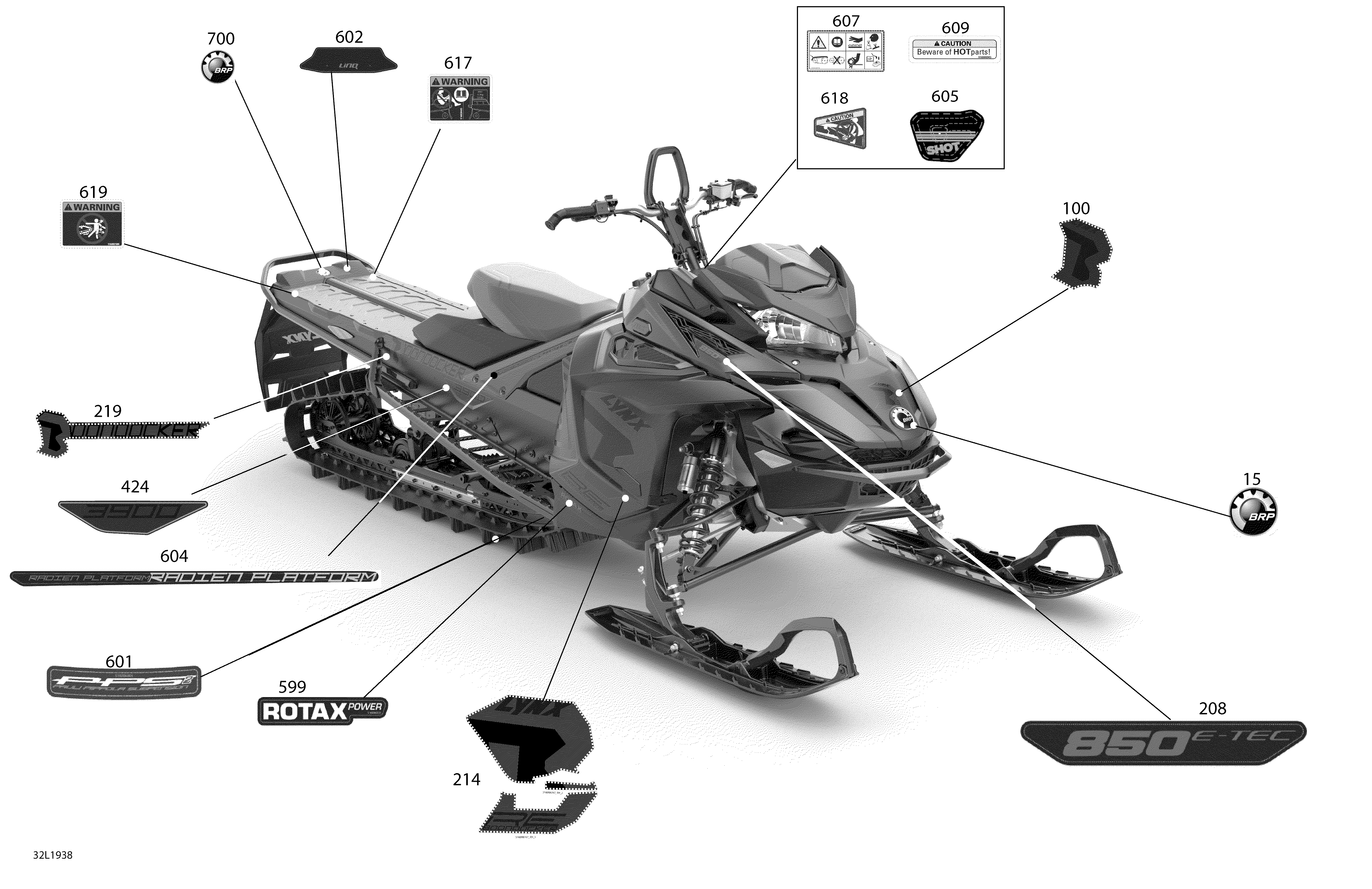

09- Decals - RE 3900 для BRP Lynx 002 - BoonDocker RE 850 E-TEC - 2019
-
№АртикулНазвание
-
10516006224 BRP Logo, 20 mm. Not ShownBRP Logo, 20 mm. Not Shown
-
15516008739 BRP Logo, 68mmBRP Logo, 68mm
-
100516008764 Hood DecalHood Decal
-
208516008743 Upper Side Panel Decal 850 E-TECUpper Side Panel Decal 850 E-TEC
-
214516008747 LH Side Panel Decal Up&LowLH Side Panel Decal Up&Low
-
219516008756 LH/RH Tunnel DecalLH/RH Tunnel Decal
-
424516008759 LH/RH Tunnel DecalLH/RH Tunnel Decal
-
599516008760 Rotax Power DecalRotax Power Decal
-
601516006805 Black, PPS DecalBlack, PPS Decal
-
602516008481 LH/RH Decal LINQLH/RH Decal LINQ
-
604516008762 LH/RH Decal Radien PlatformLH/RH Decal Radien Platform
-
605516008187 Shot Decal. E-TEC SHOT Engine StarterShot Decal. E-TEC SHOT Engine Starter
-
607516003919 Warning DecalWarning Decal
-
609516006903 Hot Parts DecalHot Parts Decal
-
610516009268 Decal Track Tension. Not ShownDecal Track Tension. Not Shown
-
617516008483 Decal Safety WarningDecal Safety Warning
-
619516007584 Warning DecalWarning Decal
-
700516008738 Logo BRP, 48mmLogo BRP, 48mm
