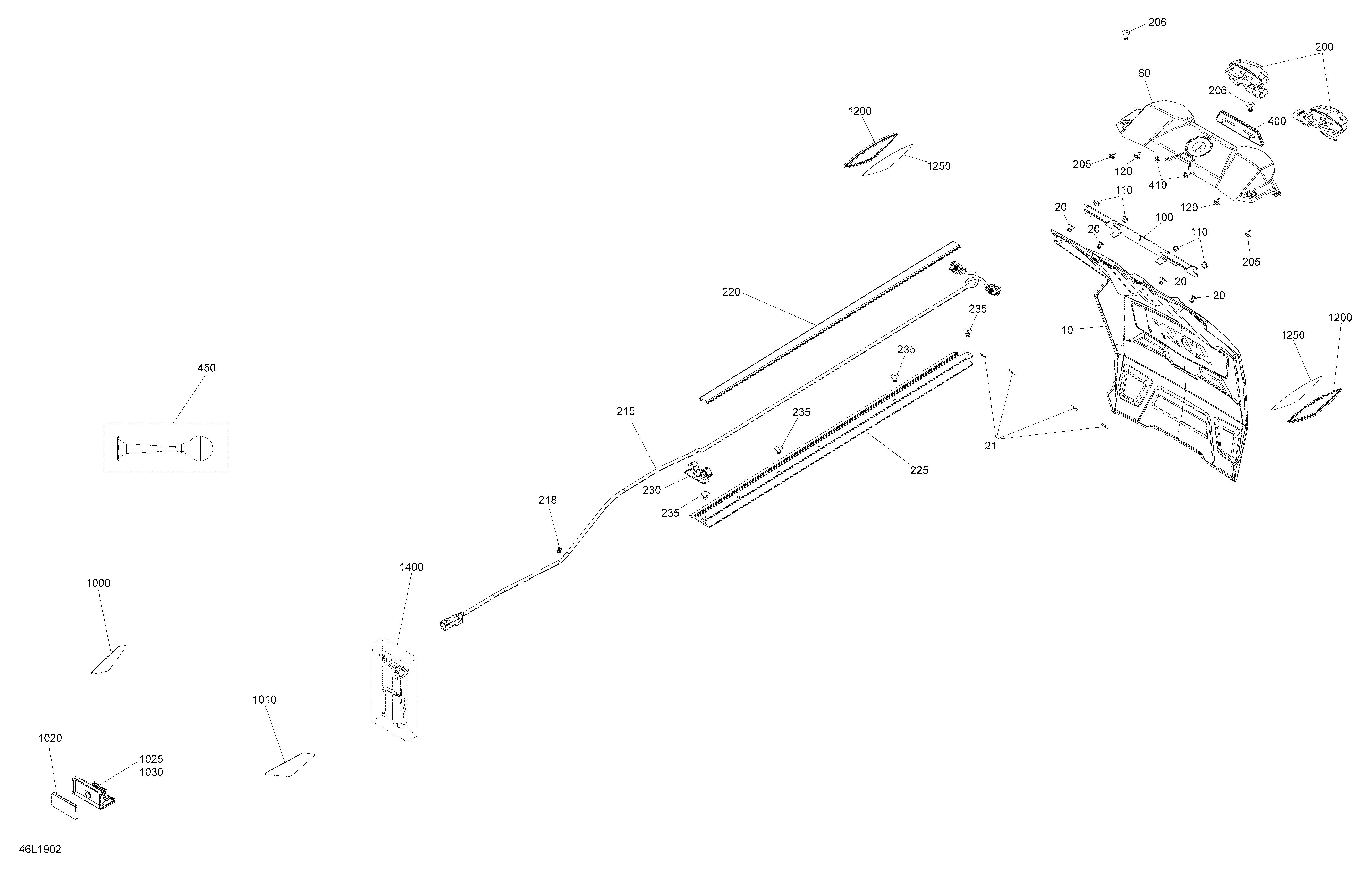

09- Utilities BoonDocker для BRP Lynx 002 - BoonDocker RE 850 E-TEC - 2019
-
№АртикулНазвание
-
10520001646 Snow Guard. Package RESnow Guard. Package RE
-
20293150104 Pop Rivet 3/16''. Package REPop Rivet 3/16''. Package RE
-
21517124300 Washer. Package REWasher. Package RE
-
60520001701 Light Fairing. Package RELight Fairing. Package RE
-
100520001773 Rear Light Support Plate. Package RERear Light Support Plate. Package RE
-
110293720101 GrommetGrommet
-
120250000805 Plastite Screw M4 X 10. Package REPlastite Screw M4 X 10. Package RE
-
200520001302 Rear LightRear Light
-
206293150100 Pop Rivet 3/16''. Package REPop Rivet 3/16''. Package RE
-
215515178359 Wiring Harness. Package RE 3700Wiring Harness. Package RE 3700
-
215515178476 Wiring Harness. Package RE 3900Wiring Harness. Package RE 3900
-
218390402200 Pop Rivet 3/16''Pop Rivet 3/16''
-
220520001719 Radiator TrimRadiator Trim
-
225520001703 Wire ProtectorWire Protector
-
230520001722 CapCap
-
235293150104 Pop Rivet 3/16''Pop Rivet 3/16''
-
400705012208 Red, Rear ReflectorRed, Rear Reflector
-
410732610072 Push NutPush Nut
-
450549011291 HornHorn
-
1000520001493 RH Front ReflectorRH Front Reflector
-
1010520001494 LH Front ReflectorLH Front Reflector
-
102021118 Reflector (Bright)Reflector (Bright)
-
1025520001776 Reflector SupportReflector Support
-
1030390403000 Pop Rivet 5/32Pop Rivet 5/32
-
1200705002423 Lateral Reflector, AmberLateral Reflector, Amber
-
1250520001766 Support TapeSupport Tape
-
1400520001814 Tools KitTools Kit
