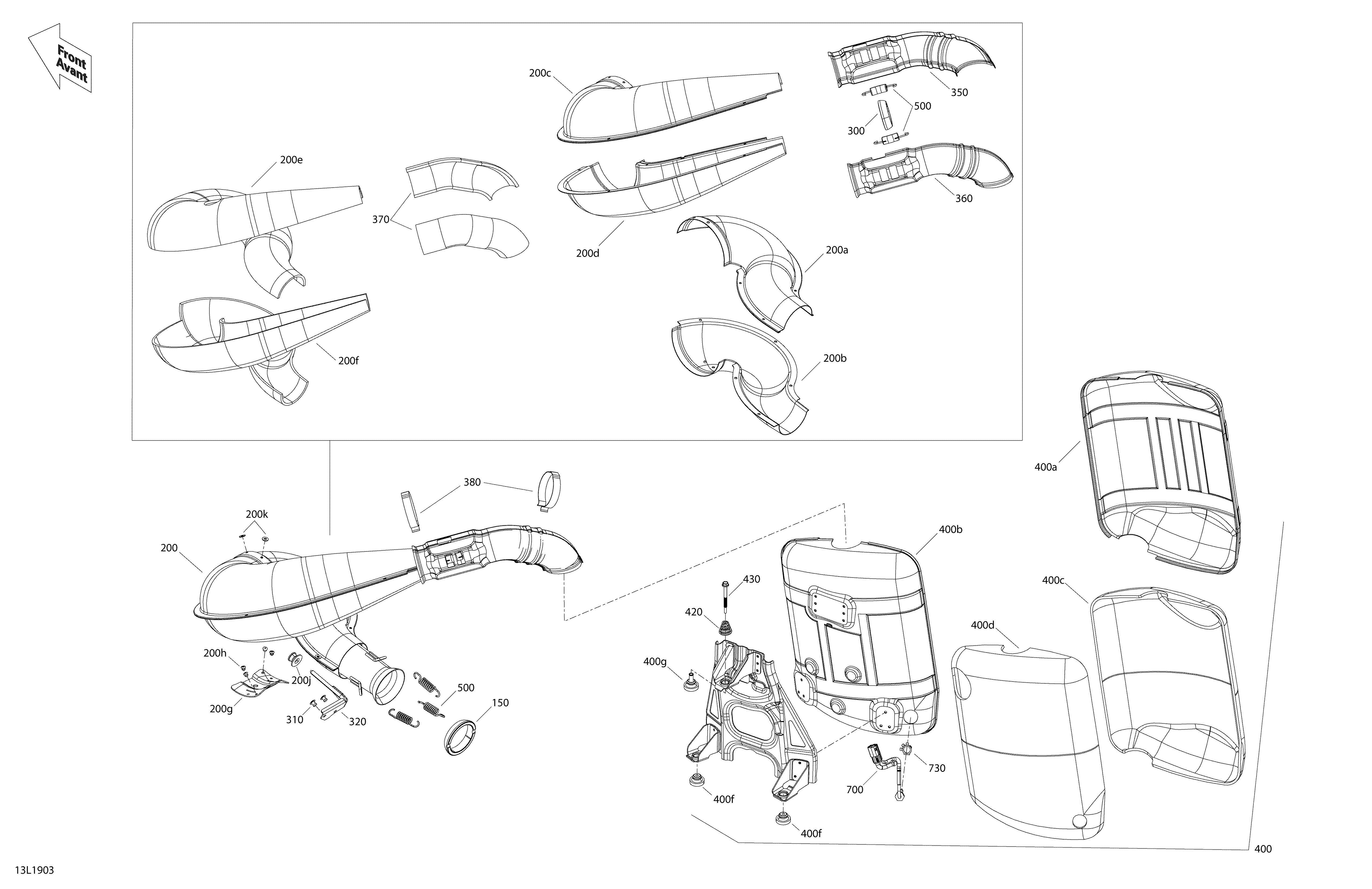

01- Exhaust 49 Ranger - 600R E-TEC для BRP Lynx 001 - 49 Ranger 600R E-TEC - 2019
-
№АртикулНазвание
-
150514053487 Exhaust GasketExhaust Gasket
-
200514055514 Tune Pipe Ass'y. Includes 200 to 200kTune Pipe Ass'y. Includes 200 to 200k
-
200a514055222 Upper Front ShellUpper Front Shell
-
200b514055223 Lower Front ShellLower Front Shell
-
200c514055273 Upper Rear ShellUpper Rear Shell
-
200d514055573 Low Rear ShellLow Rear Shell
-
200e514055220 WoolWool
-
200f514055385 WoolWool
-
200g514055316 SupportSupport
-
200h390909200 Avex RivetAvex Rivet
-
200j514055632 RubberRubber
-
200k514055537 Washer 3/16Washer 3/16
-
300514055294 Exhaust GasketExhaust Gasket
-
310293150119 Hemlock Rivet, 6.5 mmHemlock Rivet, 6.5 mm
-
320514055214 SupportSupport
-
350514055558 Front SheildFront Sheild
-
360514055559 Rear SheildRear Sheild
-
370514055285 WoolWool
-
380514055392 ClipClip
-
400514055753 Muffler Ass'y. Includes 400 to 400gMuffler Ass'y. Includes 400 to 400g
-
400a514055792 RH DeflectorRH Deflector
-
400b514055707 LH DeflectorLH Deflector
-
400c514055201 WoolWool
-
400d514055752 WoolWool
-
400f514055203 StopperStopper
-
400g514055422 Stopper Ass'yStopper Ass'y
-
420514055282 SpringSpring
-
430250000926 Hex. Flanged Screw M6Hex. Flanged Screw M6
-
500514055198 SpringSpring
-
700514055776 Temperature SensorTemperature Sensor
-
730514055100 Tab LockTab Lock
