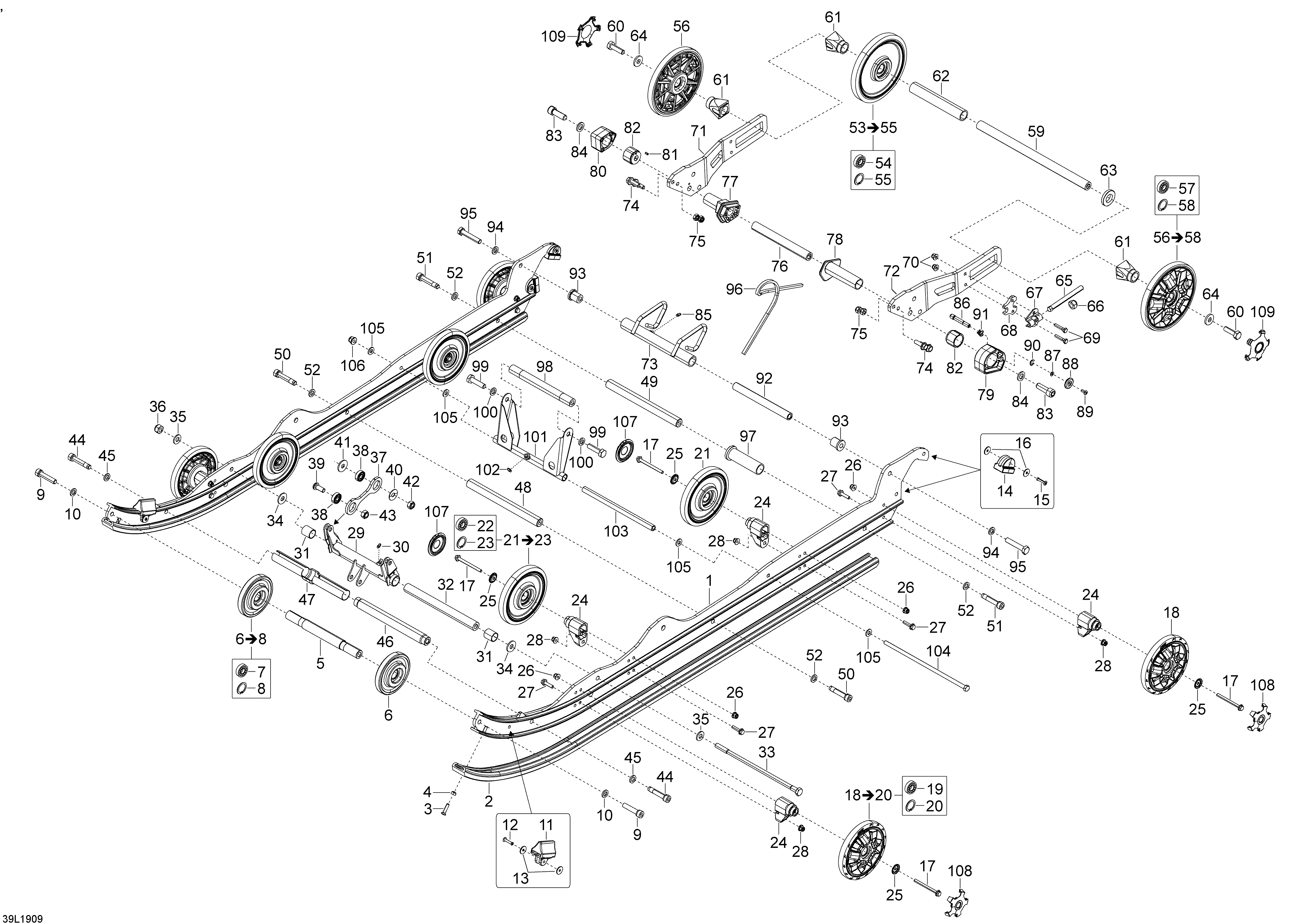

08- Rear Suspension - Lower Section для BRP Lynx 001 - 49 Ranger 600R E-TEC - 2019
-
№АртикулНазвание
-
1503195289 True Titanium, RunnerTrue Titanium, Runner
-
2503195061 Slider ShoeSlider Shoe
-
3208562531 Phillips Screw M6 X 25Phillips Screw M6 X 25
-
4232561414 Elastic Stop Nut M6Elastic Stop Nut M6
-
5503192842 Front Wheel ShaftFront Wheel Shaft
-
6503192611 Black Wheel Ass'y, 100 mm. Includes 6 to 7Black Wheel Ass'y, 100 mm. Includes 6 to 7
-
7503190396 Ball BearingBall Bearing
-
9205505054 Socket ScrewSocket Screw
-
10503192496 WasherWasher
-
11503193504 Rubber StopperRubber Stopper
-
12293150224 Rivet Pop 3/16Rivet Pop 3/16
-
13503191273 WasherWasher
-
14503191291 Rubber StopperRubber Stopper
-
15293150224 Rivet Pop 3/16Rivet Pop 3/16
-
16503191273 WasherWasher
-
17207667056 Hex. Flange Screw M6 X 70Hex. Flange Screw M6 X 70
-
18503193734 Wheel-141mm. Includes 18 to 19Wheel-141mm. Includes 18 to 19
-
19503190396 Ball BearingBall Bearing
-
21503191316 Black - Wheel Ass'y 141 mm. Includes 21 to 23Black - Wheel Ass'y 141 mm. Includes 21 to 23
-
22503190396 Ball BearingBall Bearing
-
23415129371 Retaining RingRetaining Ring
-
24503193894 Casted SupportCasted Support
-
25503191820 Wheel Cup M6Wheel Cup M6
-
26233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
27207662556 Hex. Flange Screw M6 X 25Hex. Flange Screw M6 X 25
-
28233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
29503194799 Front SwingFront Swing
-
30408200700 Grease FittingGrease Fitting
-
31503193822 BushingBushing
-
32503193893 Lower ShaftLower Shaft
-
33503193227 Bolt M10 X 251MMBolt M10 X 251MM
-
34503191926 WasherWasher
-
35250200138 WasherWasher
-
36233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
37605254159 Connecting RodConnecting Rod
-
38503194696 BearingBearing
-
39205402546 Socket Screw BN.HD.ISO.7380Socket Screw BN.HD.ISO.7380
-
4025004 Cup SpringCup Spring
-
41234002600 Flat Washer 10 mm, StainlessFlat Washer 10 mm, Stainless
-
43232500416 Elastic Stop Nut M10Elastic Stop Nut M10
-
44205505054 Socket ScrewSocket Screw
-
45503192496 WasherWasher
-
46503195015 Limiter Strap ShaftLimiter Strap Shaft
-
47503194867 Holder, Limiter StrapHolder, Limiter Strap
-
485343471 ShaftShaft
-
49503191260 Axle StrapAxle Strap
-
50205505054 Socket ScrewSocket Screw
-
51205503554 Socket Head Screw M10 X 35Socket Head Screw M10 X 35
-
52503192496 WasherWasher
-
53503192140 Black, Wheel Ass'y, 165 mm. Includes 53 to 55Black, Wheel Ass'y, 165 mm. Includes 53 to 55
-
54503190396 Ball BearingBall Bearing
-
55415129371 Retaining RingRetaining Ring
-
56503193809 Wheel 165mm. Includes 56 to 58Wheel 165mm. Includes 56 to 58
-
57503190396 Ball BearingBall Bearing
-
58415129371 Retaining RingRetaining Ring
-
59503190429 Rear AxleRear Axle
-
60250000817 Hex Screw With Nilon Patch, M10 X 35Hex Screw With Nilon Patch, M10 X 35
-
61503190428 Rear Wheel SpacerRear Wheel Spacer
-
62503193052 SpacerSpacer
-
63503190432 WasherWasher
-
64503190439 WasherWasher
-
65230100054 Hex Screw M10 x 100Hex Screw M10 x 100
-
66233601466 Elastic Locking Nut M10Elastic Locking Nut M10
-
67503192583 TensionerTensioner
-
68503193250 SpacerSpacer
-
69207063054 Hex. Cap Screw M6 X 30Hex. Cap Screw M6 X 30
-
70233261466 Hex. Flanged Elastic Nut M6Hex. Flanged Elastic Nut M6
-
71503192435 Rail Pivot RHRail Pivot RH
-
72503192434 Rail Pivot LHRail Pivot LH
-
73503192647 Runner PivotRunner Pivot
-
75232581414 Hex. Elastic Stop Nut M8Hex. Elastic Stop Nut M8
-
76503191608 Cam AxelCam Axel
-
77503191190 RH Spring CamRH Spring Cam
-
78503191668 LH Spring CamLH Spring Cam
-
79503192426 LH BlockLH Block
-
80503192427 RH BlockRH Block
-
81250400005 Dowel Pin 4 X 8 mmDowel Pin 4 X 8 mm
-
82503189488 Block GuideBlock Guide
-
83205523554 Socket Head Screw M12 X 35Socket Head Screw M12 X 35
-
84503189148 WasherWasher
-
85408200700 Grease FittingGrease Fitting
-
86503192437 RodeRode
-
87234051410 Flat Washer M5Flat Washer M5
-
88503192438 HandleHandle
-
89250000742 Torx Screw M5 X 14Torx Screw M5 X 14
-
90293370068 CirclipCirclip
-
91503192436 Compression SpringCompression Spring
-
92503191279 Lower ShaftLower Shaft
-
93503189324 BushingBushing
-
94503192496 WasherWasher
-
95250000605 Hex. ScrewS.GRIP M10 X 55Hex. ScrewS.GRIP M10 X 55
-
96503194624 SpringSpring
-
97503191259 Center BushingCenter Bushing
-
98503193638 Shaft-lowerShaft-lower
-
99207204044 Hexagonal ScrewHexagonal Screw
-
100503192496 WasherWasher
-
101503194342 Rear SwingRear Swing
-
102408200700 Grease FittingGrease Fitting
-
103503189156 Pivot Arm AxlePivot Arm Axle
-
104503192440 Bolt M8 X 248mmBolt M8 X 248mm
-
105503192494 WasherWasher
-
106233281466 Elastic Flang Nut M8Elastic Flang Nut M8
-
107503192771 Black, Wheel CapBlack, Wheel Cap
-
108503195346 White, Wheel CapWhite, Wheel Cap
-
109503195349 White, Wheel CapWhite, Wheel Cap
