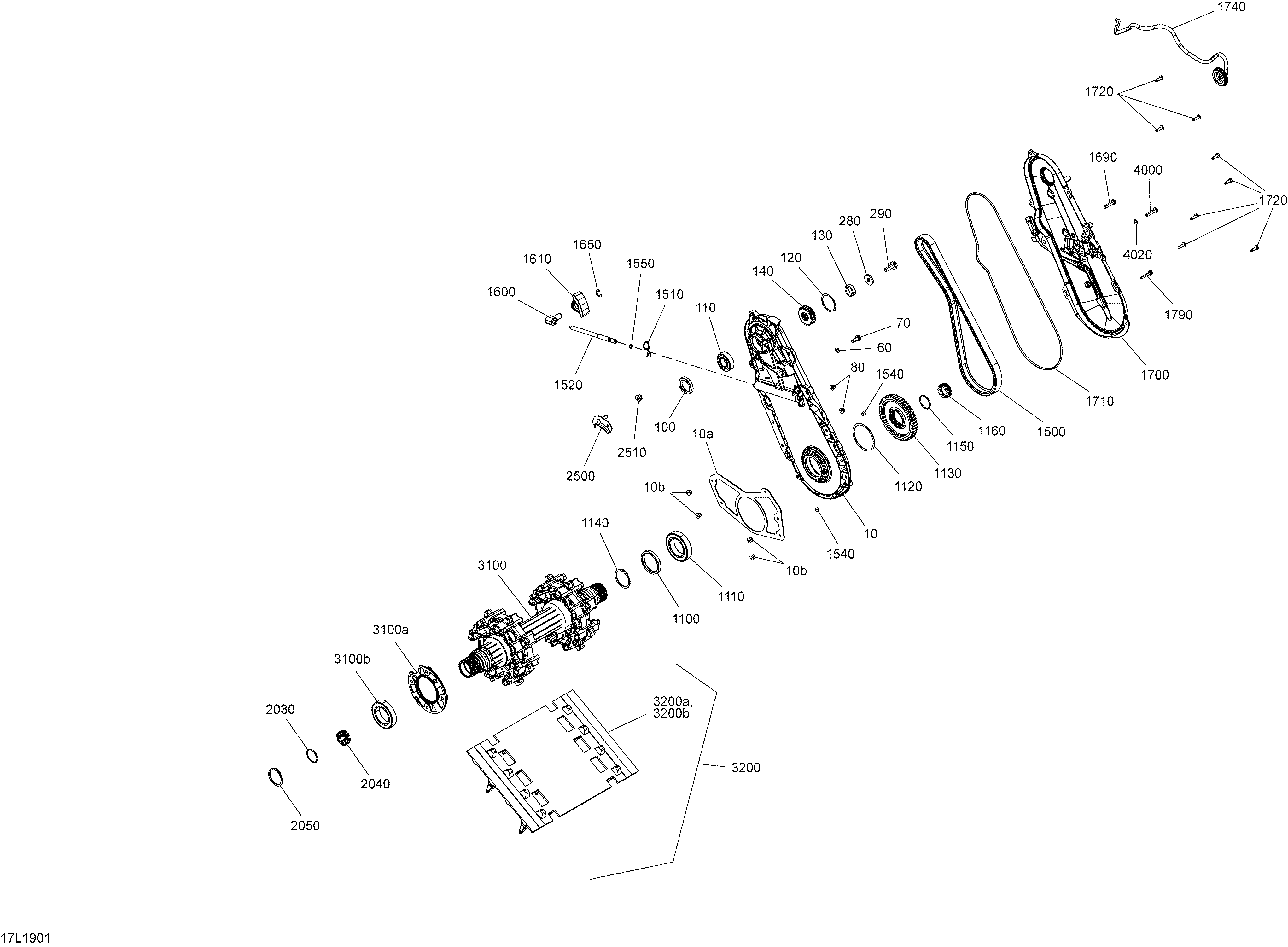

05- Drive - 49 Ranger - 600R E-TEC для BRP Lynx 001 - 49 Ranger 600R E-TEC - 2019
-
№АртикулНазвание
-
10504153617 Chaincase Ass'y. Includes 10 to 10bChaincase Ass'y. Includes 10 to 10b
-
10a861805514 Kit Plate Ass'yKit Plate Ass'y
-
10b233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
60504082900 WasherWasher
-
70250000740 Torx Screw M8 X 20, Scotch GripTorx Screw M8 X 20, Scotch Grip
-
80233261434 Flanged Elastic Nut M6Flanged Elastic Nut M6
-
100293200168 Oil SealOil Seal
-
110293350115 Ball BearingBall Bearing
-
120504152576 CirclipCirclip
-
130504152628 ShimShim
-
140504153783 Sprocket, 19 Teeth. Model # FCKASprocket, 19 Teeth. Model # FCKA
-
140504096200 Sprocket, 21 Teeth. Model # FCKB & FCKDSprocket, 21 Teeth. Model # FCKB & FCKD
-
280504152784 Spring Washer M10Spring Washer M10
-
290207503046 Hex. Flanged Screw M10 X 30, Scotch GripHex. Flanged Screw M10 X 30, Scotch Grip
-
1100293200159 Oil SealOil Seal
-
1110293350059 Ball BearingBall Bearing
-
1120504152582 CirclipCirclip
-
1130504152971 Sprocket, 51 TeethSprocket, 51 Teeth
-
1140504152572 CirclipCirclip
-
1150293300201 O-RingO-Ring
-
1160504153696 Magnetic Cap Ass'yMagnetic Cap Ass'y
-
1500504153393 Drive Chain, 114 Links. Model # FCKADrive Chain, 114 Links. Model # FCKA
-
1500504153397 Drive Chain, 116 Links. Model # FCKB & FCKDDrive Chain, 116 Links. Model # FCKB & FCKD
-
1510414575600 Hair PinHair Pin
-
1520504153760 Adjustment ScrewAdjustment Screw
-
1540250500012 Allen Drive Plug 1/8-27 PTFAllen Drive Plug 1/8-27 PTF
-
1545504153704 Magnetic PlugMagnetic Plug
-
1550293300202 O-RingO-Ring
-
1600504153559 TensionerTensioner
-
1610504153312 Slider ChainSlider Chain
-
1650293370105 CirclipCirclip
-
1690250000764 Hex. Button Head Screw M8 X 1.25 X 35Hex. Button Head Screw M8 X 1.25 X 35
-
1700504153897 Chain Case Cover Ass'yChain Case Cover Ass'y
-
1710293300200 O-RingO-Ring
-
1720250000870 Torx Screw, M6 X 20Torx Screw, M6 X 20
-
1740504153535 Cap Ass'yCap Ass'y
-
1790250000960 Hex. Flanged Screw M6 X 35Hex. Flanged Screw M6 X 35
-
2030293300201 O-RingO-Ring
-
2040504153697 Magnetic CapMagnetic Cap
-
2050504152572 CirclipCirclip
-
2500504153695 Bearing Housing Ass'yBearing Housing Ass'y
-
2510233281414 Hex. Flanged Elastic Nut M8Hex. Flanged Elastic Nut M8
-
3100504153830 Axle Drive Ass'y. Includes 3100 to 3100bAxle Drive Ass'y. Includes 3100 to 3100b
-
3100a504153426 Retaining RingRetaining Ring
-
3100b293350059 Ball BearingBall Bearing
-
3200504153276 Track Ass'y. TR16X163X1.5DSG. Includes 3200 to 3200bTrack Ass'y. TR16X163X1.5DSG. Includes 3200 to 3200b
-
3200504153016 Track Ass'y 16'' X 163'' X 2.31''. TR16X163X2.3PSH. Includes 3200 to 3200bTrack Ass'y 16'' X 163'' X 2.31''. TR16X163X2.3PSH. Includes 3200 to 3200b
-
3200a415129528 Track GuideTrack Guide
-
3200b415129529 CleatCleat
-
4000250000764 Hex. Button Head Screw M8 X 1.25 X 35Hex. Button Head Screw M8 X 1.25 X 35
-
4020504082900 WasherWasher
